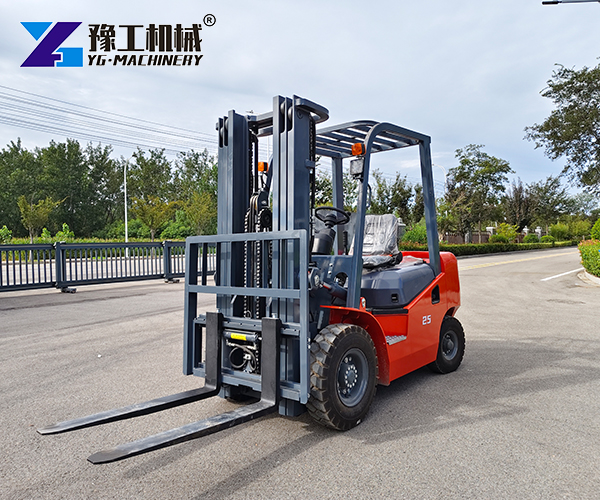

A Diesel Powered Forklift is a strong choice for outdoor material handling. Construction sites, ports, lumberyards, and farms use these machines every day. They run on diesel fuel, so they can work long shifts with quick refueling. YG Machinery offers several models for different load needs. If you want to buy a diesel forklift truck for sale, you can request a quote and compare price options.
Specifications of Diesel Powered Forklift
| Specification | Unit | CPC20 | CPCD20 | CPC25 | CPCD25 | CPC30 | CPCD30 | CPC35 | CPCD35 | CPC38 | CPCD38 |
| Power Type | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel | |
| Rated Load | kg | 3000 | 3000 | 3500 | 3500 | 3000 | 3000 | 3500 | 3500 | 4000 | 4000 |
| Load Center | mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Driving Type | Sit-on | Sit-on | Sit-on | Sit-on | Sit-on | Sit-on | Sit-on | Sit-on | Sit-on | Sit-on | |
| Max Lifting Height (H) | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Mast Height Lowered (H1) | mm | 2000 | 2000 | 2070 | 2070 | 2070 | 2070 | 2070 | 2070 | 2150 | 2150 |
| Max Fork Height with Load Backrest (H2) | mm | 4030 | 4030 | 4030 | 4030 | 4220 | 4220 | 4220 | 4220 | 4220 | 4220 |
| Free Lift Height (H3) | mm | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Overall Height with Overhead Guard (H4) | mm | 2120 | 2120 | 2120 | 2160 | 2160 | 2160 | 2160 | 2160 | 2160 | 2160 |
| Min Ground Clearance at Mast (H5) | mm | 115 | 115 | 115 | 115 | 135 | 135 | 135 | 135 | 148 | 148 |
| Seat to Overhead Guard Clearance (H6) | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Towing Pin Height (H9) | mm | 290 | 290 | 290 | 290 | 310 | 310 | 310 | 310 | 323 | 323 |
| Load Backrest Height (H13) | mm | 1000 | 1000 | 1000 | 1000 | 1215 | 1215 | 1215 | 1215 | 1215 | 1215 |
| Overall Length with/without Forks (L/L’) | mm | 3685/2615 | 3685/2615 | 3685/2615 | 3685/2615 | 3913/2693 | 3913/2693 | 3913/2693 | 3913/2693 | 4063/2843 | 4063/2843 |
Diesel Powered Forklift Advantages
- Strong engine power. The diesel engine produces high torque at low speed. This helps the forklift start heavy loads and climb ramps without struggle. It also works well on rough ground.
- Fast refueling. A diesel tank can be filled in minutes. The truck goes back to work quickly. This is useful for busy sites that run many hours each day. An Electric Forklift may need hours to charge, but a diesel unit keeps moving.
- Good for outdoor use. These trucks use rugged tires and high ground clearance. They handle mud, gravel, and wet ground. Rain and heat do not stop them. This makes them a good heavy duty diesel forklift for tough jobs.
- Easy maintenance. Diesel engines use proven technology. Parts are easy to find. Regular oil and filter changes keep the machine running. Service costs stay under control.
- Model coverage and custom solutions. The standard series covers 3,000 kg to 4,000 kg. If you need a 5 ton forklift or a larger model, contact us for a tailored solution. the actual application and discuss whether a customized solution is required. This makes it easier to match the forklift with your load type, working area, and daily handling process.
Diesel Forklift For Sale: Diesel Vs. Battery Power
| Factor | Diesel Forklift | Battery Power |
| Best Environment | Outdoor, rough ground, ports | Indoor warehouses, cold storage |
| Refueling / Charging | 5–10 minutes | 6–8 hours standard |
| Upfront Cost | Lower | Higher |
| Running Cost | Higher fuel cost | Lower electricity cost |
| Emissions | Exhaust fumes | Zero tailpipe emissions |
| Noise Level | Higher | Lower |
| Weather Resistance | Excellent | Limited in wet or extreme cold |
Diesel works best outdoors, on rough ground, and in long shifts. Battery power works best indoors, where emissions and noise must stay low. An Electric Forklift has lower running cost, but charging takes time. Diesel has higher fuel cost, but refueling is fast. The right choice depends on your site and work cycle. Ask YG for a diesel forklift price quote and compare models.
FAQ about Diesel Powered Forklift
Q: What is the Diesel Forklift Price?
A: Price depends on model, engine, mast, and attachments. Contact YG Machinery for a current quote.
Q: Can I buy a diesel forklift for outdoor work?
A: Yes. Diesel forklifts are built for outdoor use. They handle rough ground and long shifts.
Q: How often is service needed?
A: Service is needed every 250 hours or monthly. Full maintenance is advised every 1,000 hours.
Diesel Forklift For Sale: YG Machinery Support
YG Machinery supplies reliable material handling equipment worldwide, including the Glass Installation Robot, Electric Stacker Lift, and Electric Scissor Lift Platform. For diesel forklift truck for sale quotes and factory-direct support, contact YG today.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
