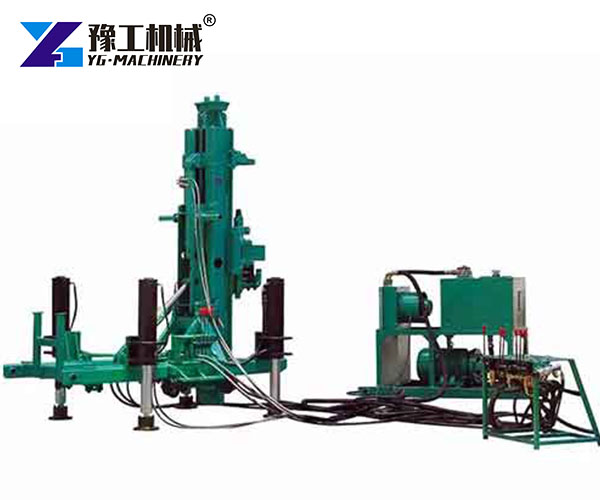

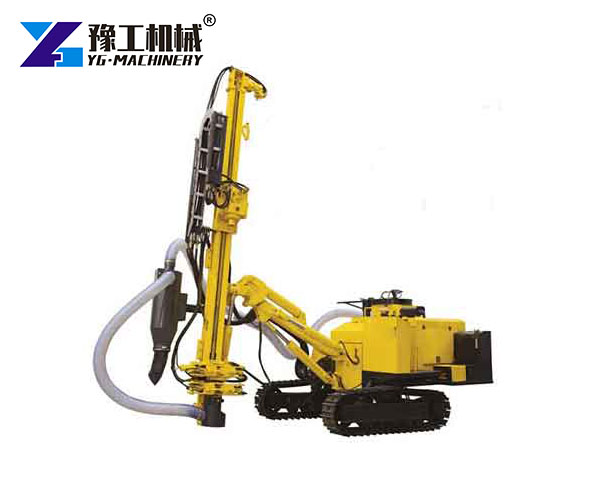

An Anchor Drilling Rig is a machine used to drill holes in the ground for installing anchors. These anchors hold soil, rock, or structures in place. This equipment is essential for slope protection, tunnel support, and foundation reinforcement. YG Machinery builds anchor drilling equipment that are compact, lightweight, and powerful. The hydraulic powerhead delivers strong torque for fast drilling in different ground conditions. Whether you need a Crawler Anchor Drilling Rig for rough terrain or a Portable Anchor Drilling Machine for tight spaces, YG has options for sale.
Anchor Drilling Rig Parameters
| Model | YG–MG40 | YG–MG50 | YG–MG70 |
| Hole depth(m) | 10-60 | 25-70 | 35-80 |
| Hole diameter(mm) | 90-180 | 90-165 | 90-200 |
| Rod spec(mm) | Φ76*1500 | Φ76*1500/ Φ89*1500 | Φ76*1500/ Φ89*1500 |
| Hole angle | 0-90° | 0-90° | 0-90° |
| Output rotary speed(rpm) | 90 | 70 | 70 |
| Rated output torque(N*m) | 2400 | 2500 | 3900 |
| Powerhead max stroke(mm) | 1800 | 1800 | 1800 |
| Max lifting force(KN) | 25 | 30 | 35 |
| Powerhead max feeding force(KN) | 20 | 25 | 25 |
| Hydraulic system-rated pressure(Mpa) | 16 | 17-18 | 17-18 |
| Rotary electric power | 4-pole/7.5kw | Hydraulic | Hydraulic |
| Oil pump electric power(kW) | 4 | 22 | 22 |
| Electric voltage | 380v | 380v | 380v |
| Weight(kg) | 1000 | 1260 | 1460 |
| Hydraulic station dimension(mm) | 640*600*580 | 1850*780*1360 | 1850*810*1280 |
| Dimension(mm) | 2800*800*1400 | 3000*780*1360 | 3100*1000*1500 |
Advantages of Anchor Drilling Machine
- Compact and Lightweight Design:The rig has a small footprint and low weight. This makes it easy to move and set up on high slopes or scaffolding. Workers can transport and position the machine without heavy lifting equipment.
- Powerful Hydraulic System:The hydraulic powerhead delivers high output torque. This gives the rig strong drilling power in different rock and soil types. The system runs smoothly with less noise and vibration.
- Adjustable Drilling Speed:The output speed is steplessly variable. Operators can match the speed to the ground conditions. This helps achieve the best drilling efficiency for each job.
- Multi-Angle Drilling:The Anchor Rod Drilling Machine can drill at any angle from 0 to 90 degrees. This flexibility allows work on flat ground, slopes, and vertical walls. One machine handles many types of anchor holes.
- Easy Operation:The controls are simple and responsive. One person can operate the rig without extra labor. This saves time and reduces project costs.
Applications of Anchor Drilling Machine
- Slope Stabilization for Highways and Railways:Anchor drilling rigs are used to secure slopes along roads and train tracks. They drill holes for anchors that prevent soil movement and rock falls. This keeps roads and railways safe for travel.
- Hydropower and Water Conservancy Projects:Dams and power stations need strong foundations. The rig drills anchor holes to stabilize structures near water. This prevents shifting and damage over time.

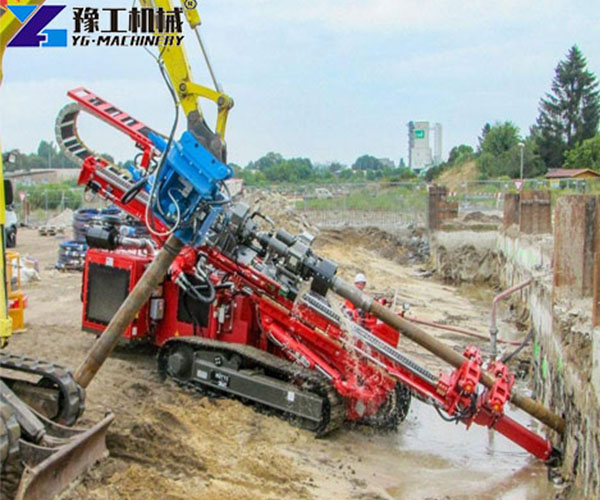

- Deep Foundation Pit Support:In cities, deep pits are dug for basements and subways. The rig installs anchors to support the pit walls. This stops collapses and protects nearby buildings.
- Landslide Prevention and Rock Anchoring:Areas with unstable slopes need reinforcement. The rig drills holes for anchors that hold rock and soil in place. This reduces the risk of landslides and rock collapses.
- Tunnel Support and Pipe Shed Holes:Tunnels need overhead support during construction. The rig drills holes for pipe sheds and rock bolts. This keeps tunnel workers safe and prevents cave-ins.
FAQ About Anchor Drilling Rigs
What is the price of an anchor drilling equipment?
The price depends on the model, power system, and features. Contact YG Machinery for a current quote based on your project needs.
What types of ground can this rig drill through?
The rig works in soil, gravel, soft rock, and hard rock. Choose the right drill bit and speed for each ground type. The hydraulic system provides enough power for most conditions.
How deep can the Anchoring Engineering Drilling Rigs drill?
The YGMG40 drills up to 60 meters deep. The YGMG50 reaches 70 meters, and the YGMG70 goes to 80 meters. Deeper models are available for special projects.
Is the rig easy to transport?
Yes. The compact size and light weight make transport simple. The machine fits on standard trucks and moves easily around job sites.
YG Machinery – Quality Equipment and Reliable Service
YG Machinery is a trusted manufacturer of construction and drilling equipment. The company produces anchor drilling rigs for projects around the world. Beyond drilling rigs, YG also manufactures Paper Slitting Machine, Chain Link Fence Machine, and Concrete Wall Sawing Machine lines. Every machine is built with durable materials and tested for performance. YG offers competitive prices, fast shipping, and responsive after-sales support. For a quote or more information about the Anchoring Engineering Drilling Rigs for sale, contact YG Machinery today.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
