A small skid loader gives you big performance in a compact package. These machines move easily through narrow spaces where full-size loaders cannot go. YG Machinery offers three models–YG280, YG380, and YG380C–each built for different job requirements. Whether you need a wheeled skid steer for paved surfaces or a tracked version for soft ground, these units deliver reliable service. The skid steer with wheels option provides excellent mobility on hard surfaces, while the rubber track version offers superior traction in mud and loose soil. All models come with a bucket and support multiple attachments. This small skidsteer design keeps the machine narrow and short, making it ideal for indoor work, landscaping, and urban construction sites.
Small Skid Loader Parameters
| Item | YG280 | YG380 | YG380C |
| Undercarriage | Rubber Track | Chevron Tyre | Chevron Tyre |
| Max Working Height | 2065mm / 81.3in | 2143mm / 84.37in | 2143mm / 84.37in |
| Max Pin Height | 1803mm / 71in | 1884mm / 74.17in | 1884mm / 74.17in |
| Max Dumping Height | 1386mm / 54.6in | 1488mm / 58.58in | 1488mm / 58.58in |
| Max Dumping Distance | 471mm / 18.5in | 348mm / 13.7in | 348mm / 13.7in |
| Max Dumping Angle | 32° | 30° | 30° |
| Rollback on Ground | 33° | 25° | 25° |
| Departure Angle | 18° | 11° | 16° |
| Total Height | 1309mm / 51.5in | 1233mm / 48.54in | 1265mm / 50in |
| Ground Clearance | 123mm / 4.8in | 118mm / 4.65in | 118mm / 4.65in |
| Wheelbase | 690mm / 27.2in | 636mm / 25.0in | 636mm / 25.0in |
| Length (no bucket) | 1778mm / 70in | 1752mm / 69.0in | 1980mm / 78in |
| Total Width | 800mm / 31.5in | 1160mm / 45.67in | 1160mm / 45.67in |
| Bucket Width | 820mm / 32.3in | 980mm / 38.6in | 980mm / 38.6in |
| Length (with bucket) | 2210mm / 87in | 2206mm / 86.9in | 2430mm / 95.7in |
| Turning Radius | 1237mm / 48.7in | 1307mm / 51.5in | 1307mm / 51.5in |
Advantages of Small Skid Steer Loader
- Compact Dimensions for Tight Spaces:The small skid steer loader measures as narrow as 800mm (31.5 inches) across. This narrow width lets you pass through standard doorways and work in confined areas. The short wheelbase – from 636mm to 690mm – gives a tight turning radius. You can turn around in small yards, warehouses, or construction sites without extra moves.
- Strong Lifting Performance:These machines lift materials to heights up to 2143mm (84 inches). The dumping height reaches 1488mm (58.6 inches), which is enough to load trucks or dump into containers. The bucket rolls back up to 33 degrees to hold material securely during transport.

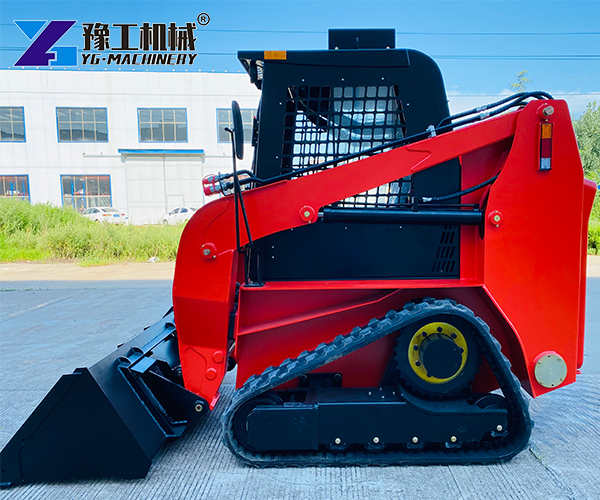

- Two Undercarriage Options:The YG280 uses rubber tracks for soft or uneven ground. Tracks spread the machine weight over a larger area. This reduces ground pressure and prevents sinking in mud or grass. The YG380 and YG380C come with chevron-pattern tyres. These wheeled skid steer models move faster on hard surfaces and are easier to transport between job sites.
- Versatile Attachment System:These loaders accept different attachments. Swap the bucket for forks, augers, or other tools. This one machine handles loading, digging, lifting, and site cleanup. You do not need separate equipment for each task.
Applications of Small Skid Loader
- Construction Sites:Move gravel, sand, and debris around tight urban job sites. The compact size lets you work between foundations and inside buildings under construction.
- Landscaping Projects:Spread soil, lay sod, and grade garden beds. The low ground pressure of the tracked YG280 protects lawns and soft surfaces. The electric skid steer loader option (available upon request) runs quietly in residential areas.
- Farming and Agriculture:Clean barns, move feed, and load trailers. These machines work in tight barn aisles where larger loaders cannot fit.
- Warehouses and Factories:Move pallets and clear work areas indoors. The narrow width and tight turning radius make these loaders ideal for indoor material handling.
- Snow Removal:Clear sidewalks, driveways, and parking lots with a snow blade or bucket attachment.
FAQ
Q:What is the difference between the YG280 and YG380?
A:The YG280 uses rubber tracks and has a narrower width (800mm). The YG380 uses chevron tyres and is wider (1160mm). The YG380 offers higher working and dumping heights.
Q:Which model should I choose for soft ground?
A:Choose the YG280 with rubber tracks. Tracks distribute weight better and provide more traction in mud, sand, or grass.
Q:Can I use this machine indoors?
A:Yes. The compact size and low height allow indoor use. For indoor work, ask about the electric skid steer version – it produces zero emissions and runs quietly.
Q:What attachments are available?
A:Common attachments include buckets, pallet forks, augers, trenchers, and snow blades. Contact us for a full list and price information.
Q:Is the machine easy to operate?
A:Yes. The controls are straightforward. New operators learn quickly. The hydraulic system provides smooth, responsive movement.
Q:What is your warranty?
A:YG Machinery offers standard warranty coverage. Contact our team for specific warranty terms and a quote tailored to your needs.
About YG Machinery
YG Machinery has manufactured heavy equipment since 2005. The company serves customers in over 50 countries worldwide. Every machine undergoes quality testing before shipment. YG offers factory-direct pricing with full after-sales support. Beyond the small skid loader, YG Machinery also produces wall saw cutting machines for concrete work, foldable container homes for temporary housing, and dredging robots for waterway cleaning. These products are available for sale. Request a quote today and find the right equipment for your project. Contact YG Machinery for detailed specifications and current pricing.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
