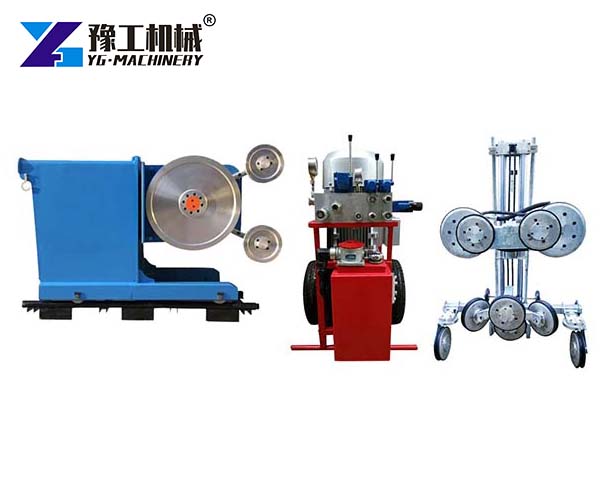

A diamond wire saw cutting machine uses a steel wire coated with diamond beads to cut hard materials. The diamonds act like tiny grinding teeth. They wear down concrete, stone, and metal through friction.This machine does not use saw teeth. It uses abrasion. Diamonds are the hardest natural substance, so they cut through almost anything softer.The wire forms a closed loop. It runs over drive wheels and guide wheels. A motor turns the wheels, moving the wire at high speed. The operator guides the wire against the material. The cut is smooth and precise.This method produces less dust and noise than traditional saws. It also creates a clean cutting edge. Waste material is minimal.Construction crews use it for concrete work. Quarries use it to split stone blocks. Demolition teams use it to remove old structures safely.
Diamond Wire Saw Cutting Machine Parameters
| Parameters | 700TM | 800TM |
| Max. Power | 30KW | 32KW |
| Motor Cooling Method | Water cooling | Water cooling |
| Rated Voltage | 380V 50HZ 3phase | 380V 50HZ 3phase |
| Pressure Stages | 3 | 3 |
| Max. Operating Pressure | 210bar/21Mpa | 210bar/20Mpa |
| Oil Flow Rate | 30-100L/min | 40-100L/min |
| Dimensions (L*W*H) | 500mm*520mm*1100mm | 680mm*550mm*700mm |
| Weight | 118kg | 120kg |
| Remote Controller Parameters | Wireless control | Wireless control |
| Control Voltage | 24V | 24V |
| Remote Controller Dimensions (L*W*H) | 300*200*150mm | 300*200*150mm |
| Remote Controller Weight | 2kg | 2kg |
How the Portable Diamond Wire Saw Works

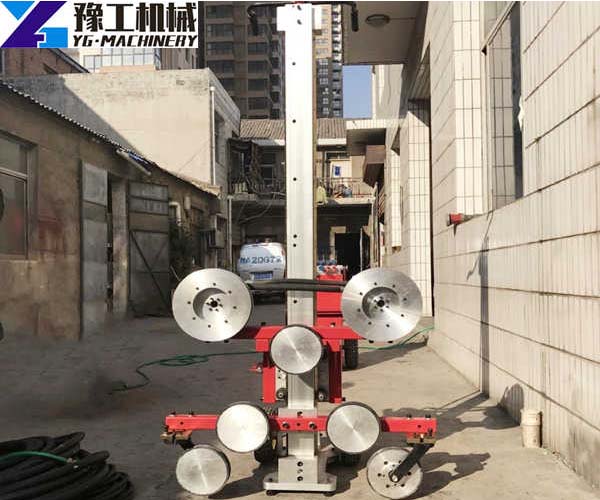

The Portable Diamond Wire Saw is designed for easy transport and quick setup. It fits into tight job sites where space is limited.

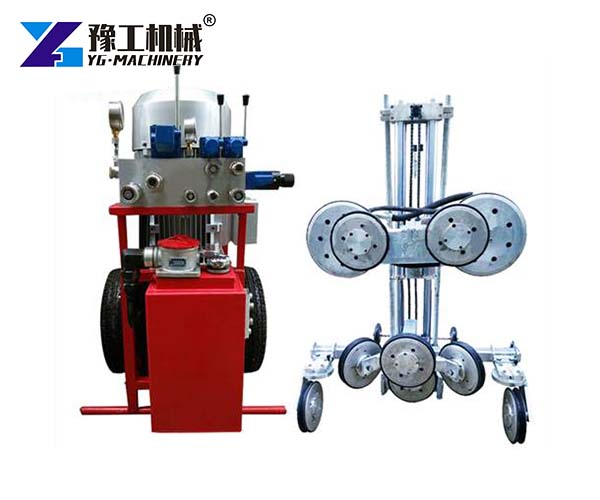

The main parts include a motor, drive wheel, guide wheels, and a tension system. The motor powers the drive wheel. The guide wheels keep the wire on track. The tension system keeps the wire tight during cutting.
Water cooling protects the motor from overheating. This allows continuous operation for long hours. The wireless remote control lets the operator stand at a safe distance while controlling speed and feed.
For concrete work, the diamond wire saw for concrete wraps around the structure. The wire moves fast and grinds through the material. The operator adjusts the feed rate to control cutting speed.
This portable design is a key benefit. Workers can carry it to different floors or into tunnels. It works in confined areas where heavy equipment cannot go.
What Can a Diamond Wire Cutting Machine Cut
A diamond wire cutting machine handles many materials. Concrete is the most common application. It cuts reinforced concrete easily, including steel rebar inside.

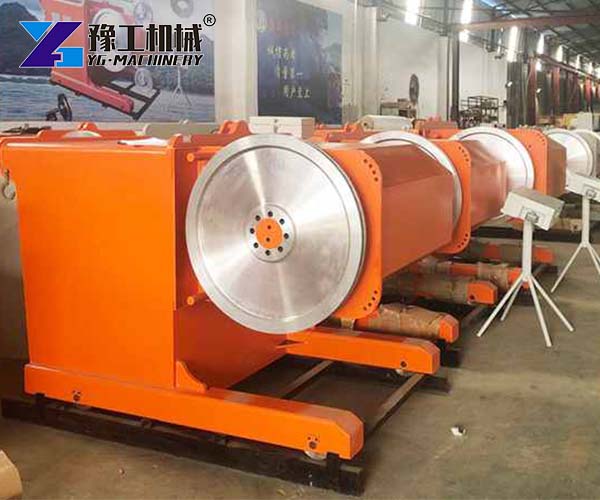

Stone is another major use. Granite, marble, and sandstone are typical. Quarries use these machines to cut large blocks into slabs. The cut is straight and waste is low.
Other materials include:
- Brick and masonry walls
- Natural rock and boulders
- Steel pipes and metal frames
- Underwater structures

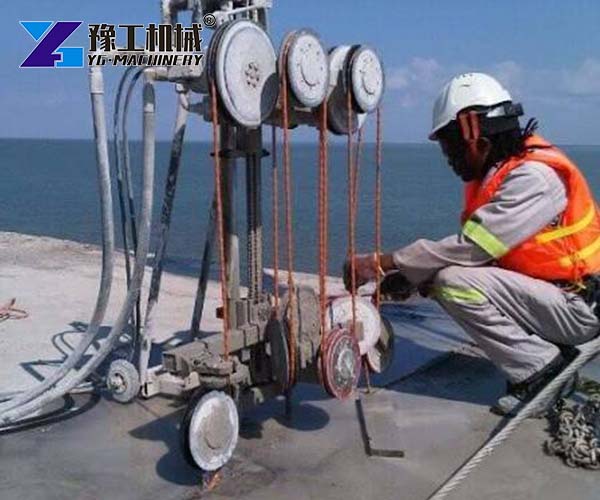

The diamond wire saw cutting method works in many environments. Bridge demolition is a typical job. The machine produces no vibration, so nearby structures stay safe.
Building renovation also uses this tool. Workers cut openings in concrete floors and walls. They remove sections without damaging the rest.Tunnel projects use the machine to cut through rock faces. It prepares spaces for new road or rail tunnels.
Why Choose a Diamond Wire Saw Machine
The machine offers clear advantages over blade saws or breakers.
- Cost efficiency – Less material waste, fewer labor hours, and reduced finishing costs. These savings add up over many projects.
- Precision – The cut is straight and smooth. Little finishing work is needed.
- Speed – The wire cuts quickly, reducing job duration.
- Safety – The operator controls the machine from a distance. Dust and noise are lower than with hammer drills.
- Versatility – One machine does many jobs. It cuts concrete, stone, and metal with different wire types.
How to Select the Right Diamond Wire Saw Cutting Machine
Choosing the best diamond wire saw for concrete depends on your work conditions.
- Consider the material hardness. Harder stone or thick concrete needs more power. Softer materials need less.
- Think about the job site. Is it indoors or outdoors? Is there enough space for setup? Does the site have the right power supply?
- Check the cooling system. Water cooling is standard for long runs. It keeps the motor from overheating.
- Evaluate control options. Wireless remote control gives flexibility and safety. Make sure the range fits your work area.
- Look at weight and size. A lighter machine is easier to move. A compact machine fits tight spaces.
- Ask about wire compatibility. Different wires suit different materials. Choose a machine that supports various wire diameters.
FAQ About Diamond Wire Saw Machines
How long does the wire last?
Wire life depends on material and cooling. Concrete wears wire faster than soft stone. Proper cooling extends life.
Is training required?
Basic operation is simple. Most workers learn within a day. Complex jobs may need more practice.
What if the wire snaps?
The machine stops automatically. The operator replaces the wire in a few minutes.
What daily maintenance is needed?
Clean the machine after each use. Check tension and cooling water. Inspect guide wheels for wear.
YG Machinery – Diamond Wire Saw Cutting Machine Manufacturer
YG Machinery builds reliable, portable, water-cooled models that handle concrete, stone, and metal work efficiently.YG Machinery also offers the Crawler Wire Saw Machine, Concrete Wall Sawing Machine, the Hydraulic Wire Saw Cutting Machine, and the High Frequency Wall Saw,etc.Contact YG Machinery for a quote today. Ask about current price, shipping, and availability. The team will help you select the right equipment. Request your quote now.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
