A small backhoe loader is a compact piece of equipment that combines two key functions in one machine. The front has a loading bucket for moving materials like dirt, sand, or gravel. The rear has a digging arm (the backhoe) for trenching and excavation. This design saves space, money, and time on the job site.
These machines are built for projects where larger equipment cannot fit or is not needed. Common jobs include digging trenches for pipes or cables, loading trucks with material, clearing land, and doing repair work in tight areas. They are also used on farms for digging irrigation channels, moving feed, and clearing debris.
A backhoe loader machine with a compact size works well in cities, on narrow roads, and in residential areas. It offers an alternative to owning both a separate excavator and a wheel loader. For many operators, this single machine does the work of two.
Specifications of Small Backhoe Loader
| Model | Transmission | Dumping Height | Bucket Width | Engine / Configuration | Additional Specs |
| YG-920 | Mechanical | 3.2m | 1.8m | High/Low Speed / Isuzu | — |
| YG-926 | CVT | 3.2m | 1.8m | 265 Engine / Small Hub Reduction Axle | — |
| YG-928 | CVT | 3.2m | 1.8m | Dual 265 Engine / Small Hub Reduction Axle | — |
| YG-930 | CVT | 3.2m | 1.8m | Dual 265 Engine / Small Hub Reduction Axle | — |
| YG-940 | CVT | 3.5m | 2.0m | Dual 265 / Large Hub Reduction Axle | 4102 Turbo / Air Brake / 16.70–20 Tires |
| YG-946 | CVT | 3.5m | 2.0m | Dual 280 / Large Hub Reduction Axle | 4102 Turbo / Air Brake / 16.70–20 Tires |
| YG-949 | CVT | 3.5m | 2.0 or 2.2m | Dual 300 Split / Large Hub Reduction Axle | 4108 Turbo / Air Brake |
How a Small Backhoe Loader Works

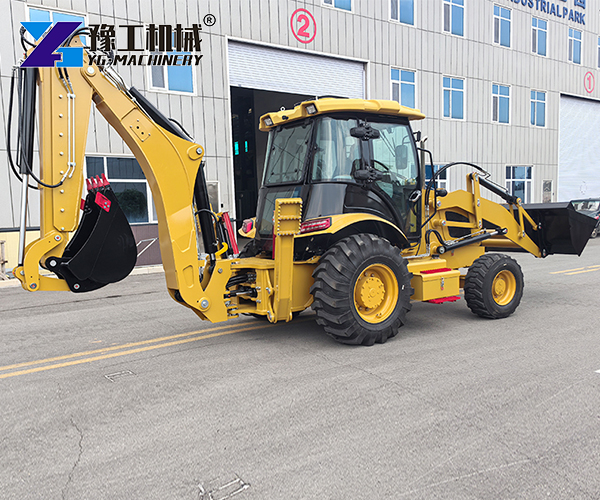

Operating a Double-Headed Small Backhoe Loader follows a simple cycle. Here are the main steps:
- Rotate the seat – The operator sits on a swivel seat. They can turn to face either the front loader or the rear backhoe without moving the machine.
- Loading task – For loading, the operator drives to a pile of material, lowers the front bucket, and pushes forward to fill it with dirt, sand, or gravel.
- Dump the load – The operator lifts the bucket and dumps the material where needed – into a truck, a skip, or a stockpile.
- Switch to digging – The operator turns the seat to face the rear backhoe arm.
- Digging action – The backhoe arm reaches down and pulls soil toward the machine. The bucket at the end of the arm digs into the ground and fills up.
- Swing and dump – The arm swings to the side and dumps the excavated material beside the trench or into a pile.
- Hydraulic power – The hydraulic system powers all movements. It uses fluid pressure to move the arms and buckets with force and control. The operator uses simple hand levers to control each movement precisely.

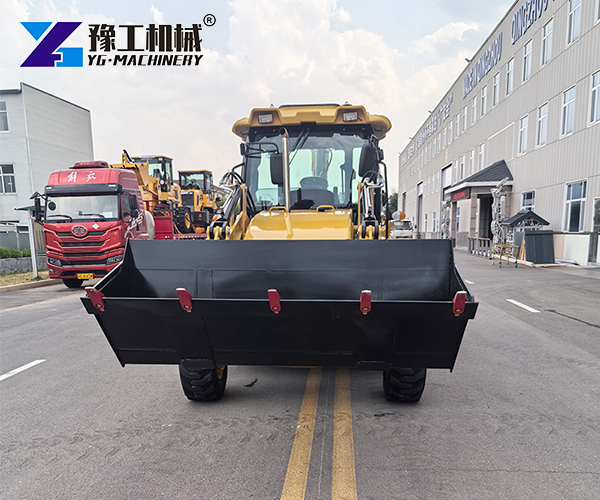

This backhoe tractor loader design allows one person to handle both loading and digging tasks in one work cycle. It eliminates the need to wait for a second machine or operator.
Core Advantages of a Small Backhoe Loader
- Cost Savings:A backhoe tractor loader costs less to buy than two separate machines—an excavator plus a wheel loader. It also saves on transport, storage, insurance, and maintenance. One engine to service, one set of tires to replace, one machine to store.
- One Machine, Many Jobs:Beyond digging and loading, these machines can take different attachments. A tractor loader with backhoe can fit a breaker for breaking concrete, a grapple for handling logs or debris, or different bucket sizes for various materials. This makes the equipment useful across many job types.
- Faster Job Completion:Switching between digging and loading takes seconds, not hours. On a typical job, moving material and digging trenches can happen in the same shift without repositioning or waiting for other equipment.
- Easy to Operate:The controls are straightforward. New operators can learn the basics quickly. The rotating seat and simple lever controls reduce the learning curve compared to operating two different machines.
- Low Maintenance:These machines use common parts that are easy to find. Service points are easy to reach, which keeps downtime short. Regular maintenance like oil changes and filter replacements can be done with basic tools.
FAQ about Small Backhoe Loader
What is the price of a Double-Headed Small Backhoe Loader?
The price depends on the model, engine, and features. Contact us for a quote on specific models. We offer competitive pricing on all backhoe loader machines.
Which model should I choose?
Choose based on your typical job size. For lighter work and tighter spaces, the YG-920 with mechanical transmission works well. For heavier use, models with CVT transmission and larger engines provide more power. The YG-940, YG-946, and YG-949 offer higher dumping heights, wider buckets, and turbo engines for demanding jobs.

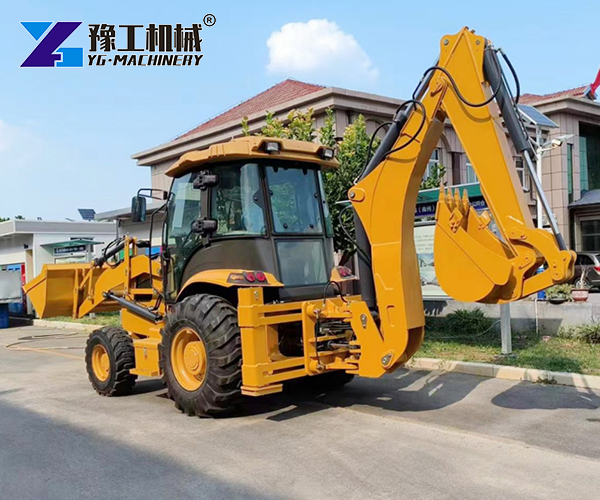

Is a tractor with backhoe loader good for farm use?
Yes. Many farms use a tractor with backhoe loader for digging irrigation, moving feed, clearing land, and general maintenance. The compact size allows access to barns, paddocks, and field edges.

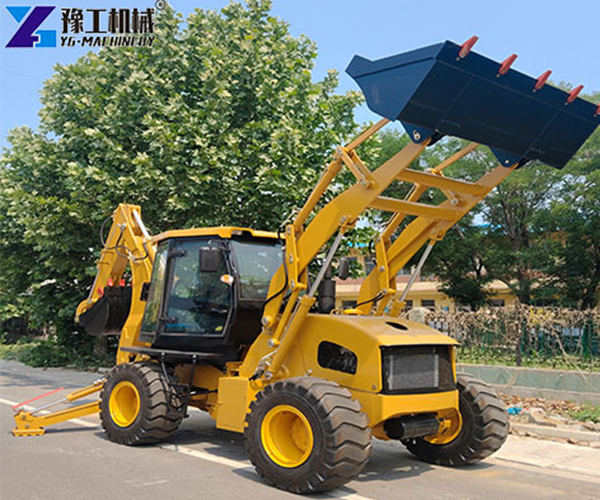

What about an Electric Backhoe Loader?
Electric models are becoming available for jobsites where noise and emissions matter. They offer lower operating costs and quieter operation. Ask our team about Electric Backhoe Loader options if this fits your needs.
How long does it take to learn to operate one?
Most operators become comfortable within a few days of practice. The controls are similar to other construction equipment. Basic training on safety and machine functions is recommended.
Do you ship internationally?
Yes. We export to many countries. Contact us for shipping details and delivery times to your location.
How to Choose and Buy a Backhoe And Loader Tractor
Check your project needs, job site size, and material types before purchase. Look for a reliable manufacturer with proven quality and global experience.
YG Machinery is a professional manufacturer of construction equipment with over ten years of industry experience. The YG series backhoe loaders are widely used in building, farming, and landscaping projects around the world.
For a complete jobsite setup, pair this machine with our Small Skid Loader, Mini Mobile Concrete Batching Plant, and GRC Spray Machine.
Contact us for a price quote. Tell us your working conditions, and we will match you with the right equipment. Fast shipping and solid after-sales support are available.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
