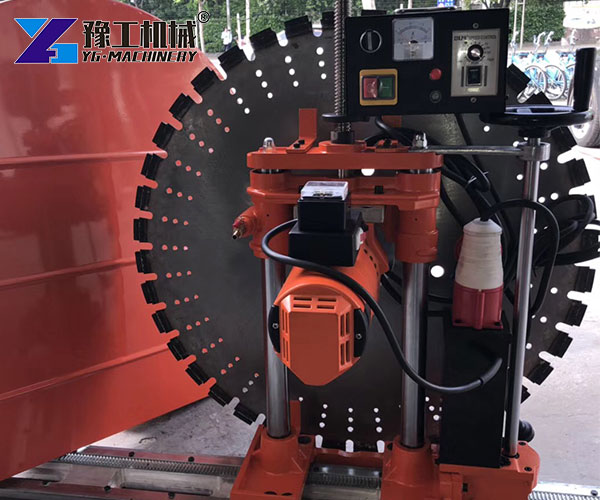

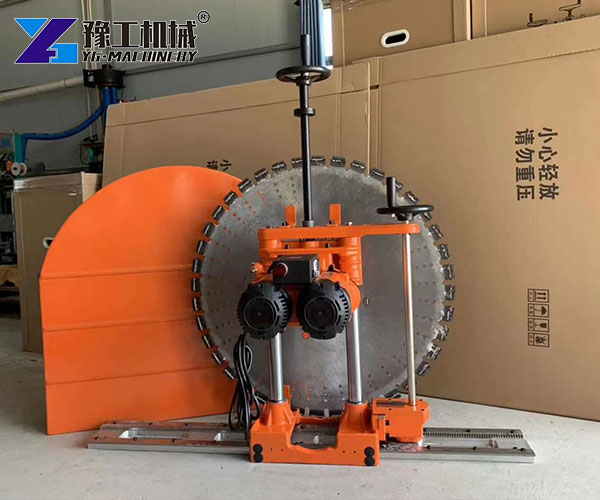

Concrete Wall Sawing Machine

A concrete wall sawing machine is widely used for cutting reinforced concrete walls, bridges, and slabs in construction and demolition projects. Contractors often face thick structures, dense rebar, and limited working space. Traditional tools struggle with precision and speed, leading to uneven cuts and extra labor.

This is where a concrete wall sawing machine becomes essential. It delivers clean, straight cuts with controlled depth, making it suitable for door openings, window cutting, and structural modification work.

REQUEST A FREE QUOTE

Parameters of Concrete Wall Sawing Machine

Model	YG600TM	YG700TM
Saw blade diameter range	800-1400mm	800-1600mm
Cutting depth	620mm	730mm
Center hole of blade	60mm	60mm
Saw blade life	Cut 20 square	Cut 20 square
Max. working pressure	180bar/18Mpa	200bar/20Mpa
Max. oil flow rate	100L/min	100L/min
Gearing	Gear	Gear
Rotation speed	450/900/1350Rpm	600/850/1400Rpm
Dimension(mm)	400*420*400	400*420*400
Weight	38kg	39kg

REQUEST A FREE QUOTE

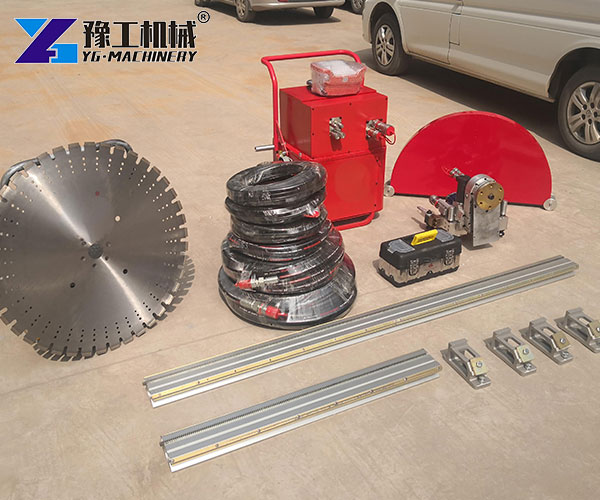

Components of the Wall Sawing Machine

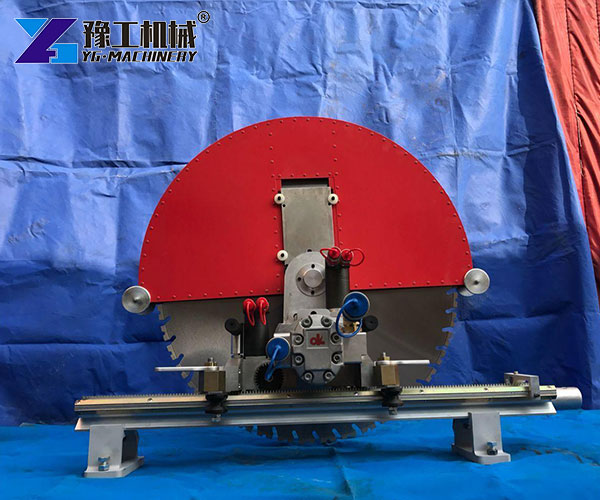

• Track System: The rail guides the machine during cutting. It keeps the blade aligned and improves accuracy.
• Hydraulic Power Unit: This system provides a stable output even under heavy load. It supports long working hours without overheating.
• Diamond Blade: The blade size usually ranges from 1200mm to 1600mm, allowing deep cutting into reinforced concrete.
• Control Panel: Operators can adjust speed and direction easily, improving safety and control during operation.

Wall Sawing Machine Operation and Setup

Using a wall sawing machine does not require complex steps, but proper setup is important.

1. Fix the track securely on the wall surface
2. Install the machine and connect the hydraulic system
3. Adjust blade position and cutting depth
4. Start cutting with controlled speed

Water cooling is recommended during operation to extend blade life and improve cutting efficiency.

REQUEST A FREE QUOTE

Benefits of Cutting Wall Machine

A cutting wall machine stands out for practical advantages that fit modern job sites:

Precision & Clean Results: Diamond blades and track guidance deliver straight, smooth cuts with no overcuts or cracks.

High Efficiency: Powerful motors cut through reinforced concrete 30% faster than manual methods, shortening project time.

Low Vibration & Noise: Reduces noise and dust, suitable for urban areas and occupied buildings.

Safety: Remote control and overload protection keep operators away from cutting areas.

Versatility: Works on walls, floors, ceilings, and bridges; cuts concrete, brick, and stone.

REQUEST A FREE QUOTE

Concrete Wall Sawing Machine vs. Traditional Tool

Key Factors	wall saw cutting machine	Traditional Cutting Tools
Cutting Speed	1.5–3 m²/hour (stable output)	0.5–1 m²/hour (varies with operator)
Max Cutting Depth	Up to 730 mm (single pass possible)	150–250 mm (multiple passes required)
Cutting Accuracy Deviation	≤ ±2 mm (track-guided)	±5–10 mm (manual control)
Continuous Working Time	4–6 hours stable operation	1–2 hours before frequent pauses
Labor Requirement	1–2 operators	2–3 operators
Rebar Cutting Efficiency	Smooth cutting without slowdown	Speed drops significantly when hitting steel
Project Time (Door Opening Example)	1–2 hours	3–5 hours
Estimated Labor Cost Reduction	↓ 30%–50%	Baseline

REQUEST A FREE QUOTE

Cutting Wall Machine for Different Applications

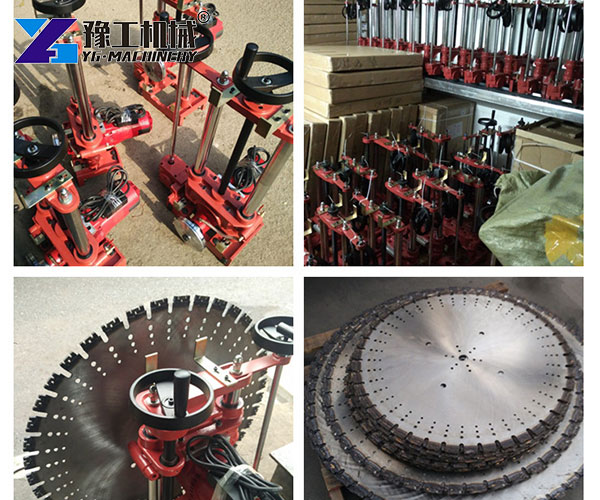

Building Renovation – Cutting doorways, windows, and ventilation openings in concrete walls.

Bridge and Infrastructure Work – Removing sections of reinforced concrete with high precision.

Demolition Projects – Controlled cutting reduces structural damage to surrounding areas.

Industrial Construction – Used in factories where thick concrete structures require modification.

With the right setup, a concrete wall sawing machine adapts easily to these environments.

REQUEST A FREE QUOTE

Customer Stories

• Residential Renovation in Australia

A local Australian contractor contacted YG for a concrete wall sawing machine to cut 12 door openings in a 300mm reinforced concrete wall. They ordered a YG600 electric wall saw. On delivery, the team installed tracks and completed all cuts in 2 days. The cuts were straight and clean, needing no extra finishing. The customer noted the machine saved time and labor, with no structural damage.

• Commercial Project in Portugal

A local construction firm in Portugal needed a wall saw cutting machine for a bridge repair project. They required 400mm deep cuts on concrete bridge decks. They chose a YG800 hydraulic wall saw. After setup, the machine cut at 5m/h, finishing the job in 3 days. The operator praised its stability and remote control safety. The project met all quality standards and finished ahead of schedule.

REQUEST A FREE QUOTE

FAQ

Q: What thickness can a concrete wall sawing machine cut?

A: Standard models cut up to 500mm deep. Hydraulic versions handle thicker walls.

Q: Is a wall saw cutting machine hard to use for new operators?

A:  With basic training, most users operate it in 1–2 days. The track system ensures stability.

Q:  Can it cut reinforced concrete with dense steel bars?

A: Yes. High‑quality diamond blades cut through rebar smoothly without breaking.

Q:  How much noise does a cutting wall machine produce?

A: Around 75–85dB, quieter than jackhammers. Water cooling further reduces noise.

Q: What’s the difference between electric and hydraulic wall saws?

A: Electric models suit indoor/light jobs; hydraulic ones deliver more power for thick, heavy walls.

REQUEST A FREE QUOTE

YG Machinery: Professional Wall Saw Manufacturer

At YG Machinery, we understand that buying a concrete wall sawing machine is an investment in your company’s future. With over 20 years of manufacturing experience, we have refined our engineering to meet the highest international standards, earning both CE and ISO certifications. We don’t just sell boxes; we provide comprehensive solutions. From detailed pre-sale consultations to ensure you get the right specs, to customized voltage configurations for your local grid, we are with you every step of the way. Beyond our wall saws, we also specialize in high-efficiency hydraulic wire saws and other heavy-duty concrete processing equipment. Contact us today to see how our experience can help you tackle your next big project with confidence.
