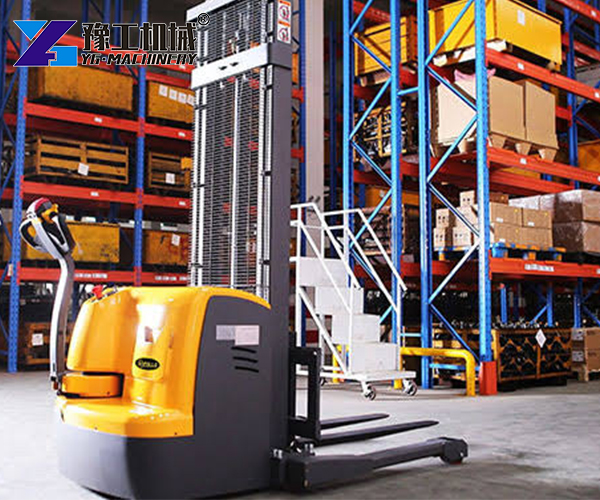

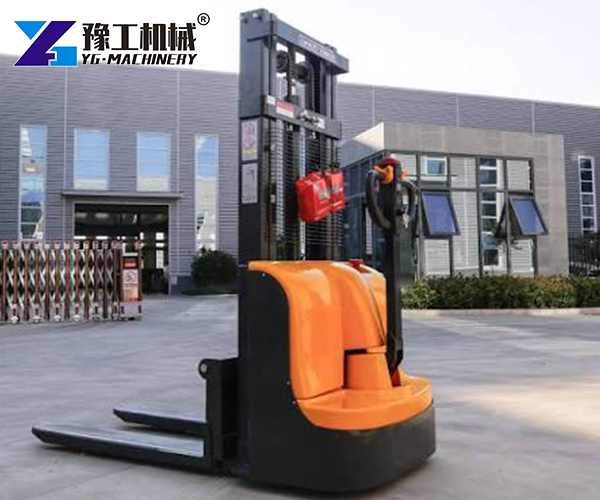

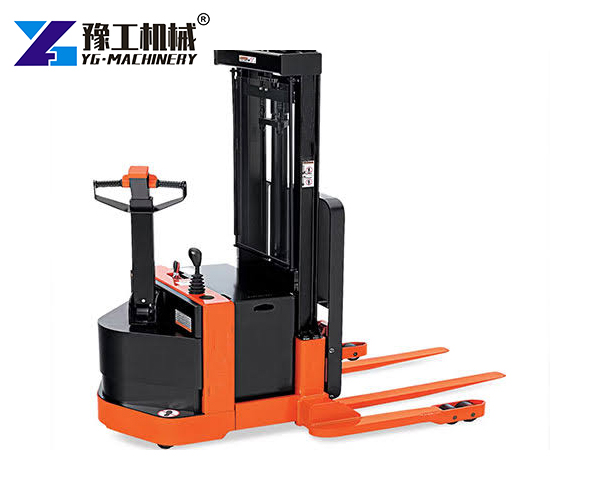

An Electric Stacker Lift is a powered machine used to lift and move pallets in warehouses, factories, and distribution centers. It runs on electricity, so it produces no fumes and operates quietly indoors. The YG-40E machine stacker is designed for operators who stand on the machine while handling loads up to 1500 kg. This stacker electric forklift offers a lift height of 4000 mm, making it suitable for medium to high racking systems. For businesses looking to improve efficiency, this electric stacker machine provides a practical alternative to manual lifting and diesel-powered equipment.
Specifications of the YG-40E Electric Stacker Lift
| Product model | YG-40E |
| Drive mode | Electric |
| Driving mode | Stand-up |
| Rated load | 1500kg |
| Load center | 600mm |
| Wheelbase | 1480mm |
| Weight | 720Kg |
| Wheels Tire | Polyurethane wheel |
| Drive wheel size | 250*80mm |
| Front-wheel size | 80*70mm |
| Balance wheel size | 100*40mm |
| Front-wheel width | 530mm |
| Rear wheel width | 650mm |
| Total height (when the fork is lowered to the lowest) | 1950mm |
| Total height (when the fork is raised to the highest) | 4500mm |
| Lifting height | 4000mm |
| Fork height from the ground | 90mm |
| Total length (including pedal) | 2100 (2600)mm |
| Fork length | 1100mm |
| Total width | 850mm |
| Fork width | 180*50*1100mm |
| Adjustable outer width of the fork | 680mm |
| Minimum ground clearance | 30mm |
| Turning radius | 1530mm |
| Mast | 3 masts |
| Performance Travel speed (full load/no load) | 4.5/5.0Km/h |
| Lifting speed (full load/no load) | 100/120mm/s |
| Lowering speed (full load/no load) | 100/100mm/s |
| Braking method | Electromagnetic brake |
| Charger | 24/15 V/A |
| Motor Drive motor power | 0.75Kw |
| Lifting motor power | 2.2Kw |
| Battery voltage/capacity | 24/120V/Ah |
Advantages of Electric Stacker Lift
- Energy-efficient operation:Electric power costs less than diesel or LPG. The machine uses battery energy only when lifting or moving, reducing waste. No fuel expenses and no exhaust fumes make it cheaper to run and safer for indoor use.
- Simple and intuitive controls:Operators can learn to drive this electric pallet truck stacker in a short time. The stand‑up platform and responsive steering allow smooth handling. Fewer training hours mean faster onboarding for new staff.
- Enhanced workplace safety:Built‑in electromagnetic braking ensures precise stops. The low center of gravity provides stability during lifts. Emergency reverse and horn features add extra protection in busy aisles. These safety measures reduce accident risks.
- Low maintenance and high reliability:With fewer moving parts than internal combustion forklifts, this electric stacker machine requires less frequent servicing. No engine oil, filters, or cooling system to maintain. Downtime is minimized, and long‑term operating costs stay low.
- Excellent maneuverability in tight spaces:The compact chassis and responsive steering allow this machine stacker to turn easily in narrow warehouse aisles. Operators can position loads accurately without extra shunting. This saves time and makes the most of available floor space.
Customer Case of Electric Stacker Lift
Case 1 – Spanish Logistics Warehouse
In 2025, a medium-sized logistics operator in Spain selected an electric stacker truck to improve pallet lifting efficiency. The warehouse faced rising labor costs and space limitations. After installing the electric pallet stacker, they reported faster loading and unloading cycles. The operator commented: “This stacker electric forklift runs smoothly all day. We moved more pallets with fewer people.” The compact design fit their narrow aisles perfectly.
Case 2 – U.S. Distribution Center
A mid-sized warehouse in Ohio upgraded its pallet handling process with YG’s electric stacker equipment. They had experienced labor shortages and safety issues during peak seasons. The new electric pallet truck stacker reduced manual lifting and improved safety. A warehouse manager said: “These machines run more than 10 hours a day with almost no breakdowns. Order processing speed increased by 40%, and labor costs dropped by 30%.” The center now stores 25% more pallets in the same space.
FAQ About the Electric Stacker Lift
What is the maximum load capacity?
The YG-40E lifts up to 1500 kg (about 3300 lbs). This covers most standard pallet loads in warehouses.
How high can it lift?
The three-stage mast reaches 4000 mm (about 13 feet). This is sufficient for second and third-level racking.
What type of battery does it use?
It uses a 24V/120Ah battery. The charger is included for convenient daily charging.
Is the machine easy to operate?
Yes. The stand-up design and simple controls make operation straightforward. Most workers can learn to use it quickly.
Where can this electric pallet stacker be used?
It works in warehouses, distribution centers, factories, cold storage, and retail backrooms. The zero-emission design makes it suitable for indoor environments.
How much does an electric pallet stackers cost?
The price depends on specifications like lift height and battery type. Contact YG Machinery for a quote tailored to your needs.
About YG Machinery
YG Machinery is a manufacturer of material handling equipment. The company produces the YG-40E electric stacker forklift along with other lifting solutions. Their product line includes the Spider Crawler Crane for rough-terrain lifting, the Electric Scissor Lift Platform for aerial work, and the Suction Lifter for handling flat materials,etc.YG Machinery serves customers worldwide with reliable equipment and factory-direct pricing. For inquiries about the electric pallet stackers price or to request a quote, contact the sales team today.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
