Aluminum alloy lifting platforms for sale are indispensable in the field of aerial operations in hotels, shopping malls, airports, factories, warehouses, and residential buildings, providing construction workers with safe, stable, and efficient elevated work access.

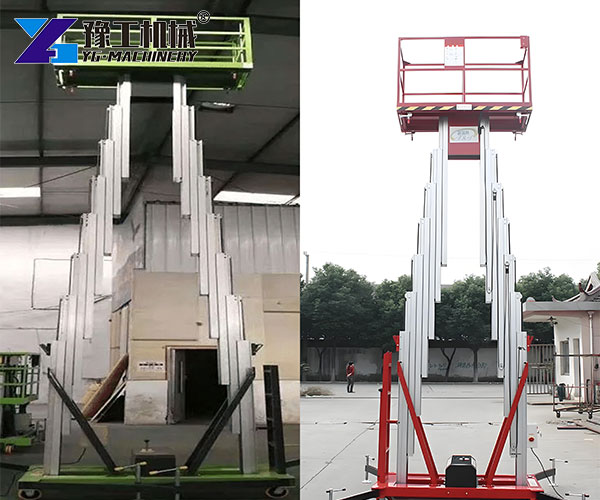

What is a Double Column Lifting Platform
Aluminum alloy lifting platforms are lightweight aerial work platforms manufactured using high-strength, high-quality aluminum alloy profiles. These platforms feature an attractive appearance, compact size, light weight, flexible movement, smooth lifting, and reliable safety. Their mast-type structure design allows for maximum lifting capacity in confined spaces. Depending on the structural configuration, various options are available, including single-column, double-column, and four-column types.
Parameters of the Vertical Mast Lift
| Model | Code (JFH) | Maximum height(m) | operation height （m） | Rated load（Kg） | Size(m) | Voltage(V/HZ) | Power(Kw) | External dimensions (m) |
| Single mast | GTWY4-100 | 4 | 5.7 | 100 | 0.60*0.60 | AC220/50HZ | 0.75 | 1.28*0.80.1.75 |
| GTWY6-100 | 6 | 7.7 | 100 | 0.60*0.60 | AC220/50HZ | 0.75 | 1.28*0.80*1.90 | |
| GTWY8-100 | 8 | 9.7 | 100 | 0.60*0.60 | AC220/50HZ | 0.75 | 1.28*0.80*1.98 | |
| GTWY9-100 | 9 | 10.7 | 100 | 0.60*0.60 | AC220/50HZ | 1.1 | 1.36*0.90*2.00 | |
| GTWY10-100 | 10 | 11.7 | 100 | 0.60*0.60 | AC220/50HZ | 1.1 | 1.36*0.90*2.10 | |
| Double mast | GTWY4-200 | 4 | 5.7 | 200 | 1.10*0.60 | AC220/50HZ | 1.5 | 1.30*0.90*1.75 |
| GTWY6-200 | 6 | 7.7 | 200 | 1.10*0.60 | AC220/50HZ | 1.5 | 1.30*0.90*1.90 | |
| GTWY8-200 | 8 | 9.7 | 200 | 1.15*0.60 | AC220/50HZ | 1.5 | 1.36*0.90*2.00 | |
| GTWY10-200 | 10 | 11.7 | 200 | 1.35*0.60 | AC220/50HZ | 1.5 | 1.56*0.97*1.90 | |
| GTWY12-200 | 12 | 13.7 | 200 | 1.45*0.60 | AC220/50HZ | 1.5 | 1.66*0.97*2.00. | |
| GTWY14-200 | 14 | 15.7 | 200 | 1.45*0.60 | AC220/50HZ | 1.5 | 1.66*1.10*2.35 | |
| Three masts | GTWY10-320 | 10 | 11.7 | 200 | 1.57*0.90 | AC220/50HZ | 2.2 | 2.00*1.25*2.00 |
| GTWY12-320 | 12 | 13.7 | 200 | 1.57*0.90 | AC220/50HZ | 2.2 | 2.10*1.25*2.00 | |
| GTWY14-320 | 14 | 15.7 | 200 | 1.57*0.90 | AC220/50HZ | 2.2 | 2.10*1.25*2.35 | |
| GTWY16-320 | 16 | 17.7 | 200 | 1.57*0.90 | AC220/50HZ | 2.2 | 2.10*1.25*2.65 | |
| Four masts | GTWY10-420 | 10 | 11.7 | 200 | 1.47*0.85 | AC220/50HZ | 2.2 | 2.00*1.25*1.90 |
| GTWY12-420 | 12 | 13.7 | 200 | 1.57*0.90 | AC220/50HZ | 2.2 | 2.10*1.25*2.00 | |
| GTWY14-420 | 14 | 15.7 | 200 | 1.57*0.90 | AC220/50HZ | 2.2 | 2.10*1.25*2.35 | |
| GTWY16-420 | 16 | 17.7 | 200 | 1.57*0.90 | AC220/50HZ | 2.2 | 2.10*1.25*2.65 | |
| GTWY18-420 | 18 | 19.7 | 200 | 1.57*0.90 | AC220/50HZ | 2.2 | 2.10*1.35*2.90 |

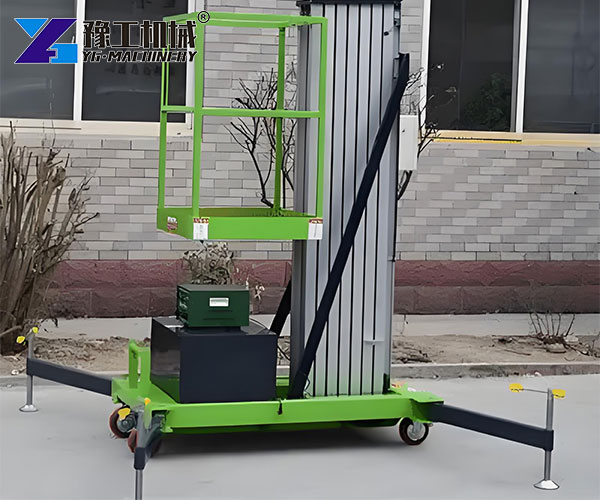

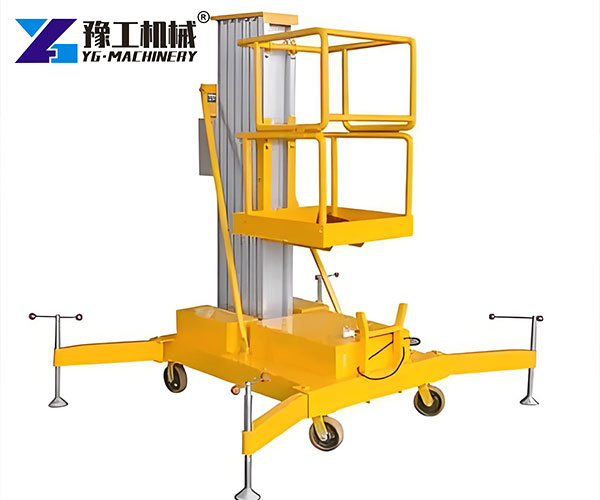

Features of a single-column lifting platform

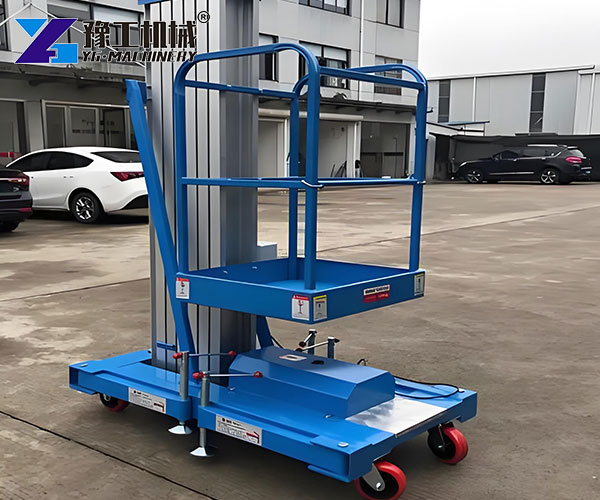

- Compact structure: The compact design allows for easy access to narrow passages, ordinary elevators, and small spaces.
- Smooth and safe lifting: The mast adopts a special device, and the platform lifting and lowering movements are smooth and free; it is equipped with anti-tipping devices, level indicators, and high-pressure steel wire hoses to ensure operational safety.
- Corrosion-resistant and durable: The oxide film on the aluminum alloy itself has excellent corrosion resistance, reducing long-term maintenance costs.
- Multiple specifications: including single mast, double mast, and multi-mast types, to meet different working height requirements.
Working principle of a single-column lifting platform
The mast-type lifting mechanism works in conjunction with a hydraulic or electric drive system to achieve vertical lifting of the platform through the nested extension and retraction of multiple masts.
- Hydraulic drive or electric motor drive
- Roller or slider guides enable smooth lifting and lowering.
- The coordinated movement of the multi-mast is ensured by relying on synchronizing valves and mechanical linkage.
Advantages of the YG aluminum alloy lifting platform for sale
- Lightweight design: The aluminum alloy material significantly reduces the overall weight of the machine.
- Stability: The multi-mast parallel design provides excellent resistance to lateral swaying.
- Safety: It integrates multiple safety mechanisms such as overload protection and hydraulic locks, and works with a dual control system to ensure the safety of workers at height.
- Compliance: We have obtained CE certification.
- Portability: The device is compact and can fit through standard doorways. It is electrically driven with low noise and does not require a time-consuming setup like scaffolding.
Choose a Suitable vertical mast lift
When choosing a vertical mast lift, you should first determine your working environment, working height, and number of workers.
Single-mast aluminum lifts: Suitable for single-person, lightly loaded scenarios involving frequent entry and exit from elevators and standard doorways, like indoor maintenance, light fixture replacement, and stocking shelves.

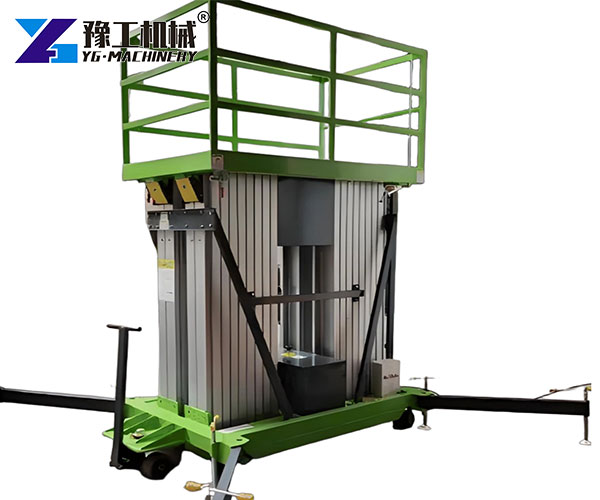

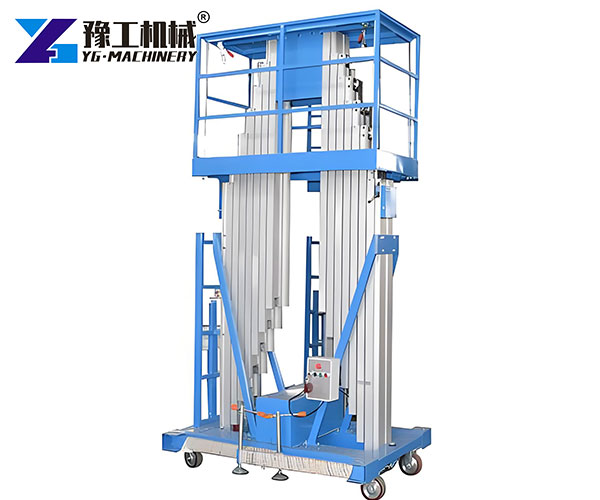

Double-mast aluminum lifts: Suitable for scenarios that require a certain height, can accommodate two people working, and have high stability requirements.Like building maintenance, window cleaning, and electrical work.
Four-mast aluminum lifts: Suitable for scenarios with ultra-high space, multi-person collaboration, and extremely high requirements for platform stability and load capacity. Like maintenance of heavy equipment and construction of insulation layers for large pipelines.
FAQ about the YG double-column lifting platform
Q: Can aluminum alloy lifting platforms be used outdoors?
A: Most vertical mast lifts are designed for use on flat indoor floors. Some models can be used on hardened concrete or asphalt surfaces outdoors, but care should be taken not to use them in windy weather or on uneven surfaces.
Q: Which is better, a hydraulic drive or an electric screw drive?
A: There is no absolute “better or worse” distinction; it depends on the specific application scenario. We can help you choose the appropriate model based on your needs.
Q: What maintenance is required regularly for double-column lifting platforms?
A: Perform regular inspections and lubrication on the working parts; change the hydraulic oil regularly.
Q: What does platform load capacity mean? What happens if it’s overloaded?
A: Load capacity refers to the maximum permissible total weight that the platform can bear, including the total weight of workers, tools, and materials. In case of overload, the hydraulic type will prevent the platform from rising through the relief valve; the electric type will trigger the overload protector to cut off the power.
Why Choose YG
YG Machinery has focused on manufacturing industrial machinery for 20 years. Our products have obtained multiple compliance certifications, including CE, and are exported to South America, Europe, Southeast Asia, and other regions. Our aluminum alloy lifting platform for sale offers a wide range of models and can provide customized solutions to meet your specific needs. In addition to aluminum alloy lifting platforms, we also offer scissor lifts, telescopic boom lifts, articulated boom lifts, and other lifting equipment.
