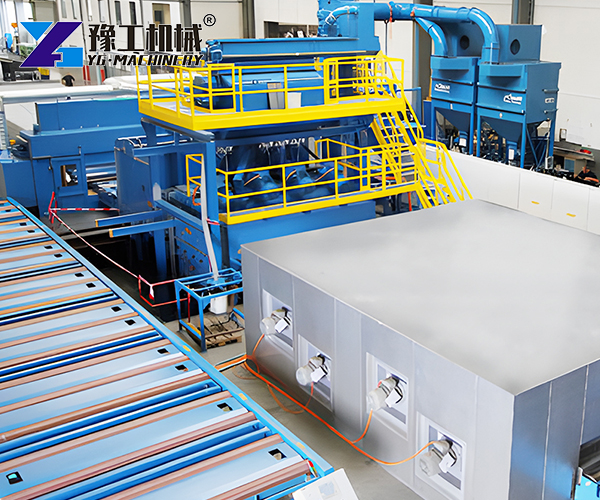

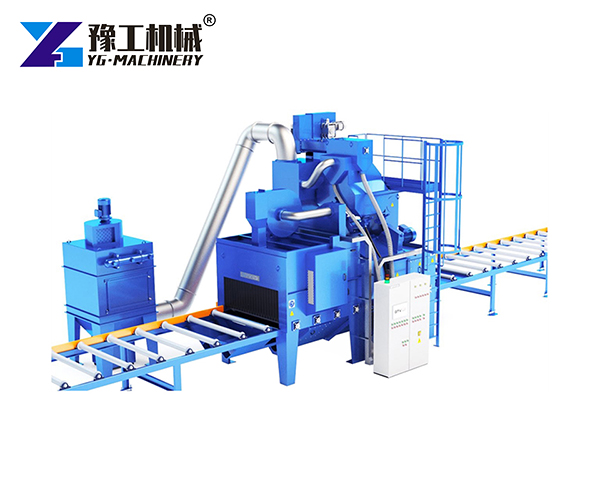

An industrial shot blasting machine cleans metal surfaces by throwing steel shot at high speed. The impact removes rust, scale, and old coatings. This prepares the surface for painting or welding.The YG series is a pass-through industrial shot blaster. Workpieces move on a conveyor through the blast chamber. It cleans plates, beams, and sections continuously. This design delivers high output with low labor.
YG Series Industrial Shot Blasting Machine Parameters
| Parameter | YG-698 | YG-6912 | YG-6915 | YG-6920 | YG-6925 | YG-6930 | YG-6940 |
| The effective cleaningwidth(mm) | 800 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
| The room feed-insize(mm) | 1000*400 | 1400*400 | 1700*400 | 2200*400 | 2700*800 | 3200*800 | 4200*400 |
| The length of cleaningThe workpiece (mm) | 1200-12000 | 1200-1600 | 1200-12000 | 1200-12000 | 3000-12000 | 2400-12000 | 4500-18000 |
| The speed of the conveyor(m/min) | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 |
| The thickness of the cleaningsteel sheet(mm) | 3-60 | 3-60 | 1.5-60 | 3-60 | 3-60 | 3-110 | 4.5-100 |
| The section steelspecification(mm) | 800*300 | 1000*300 | 1500*300 | 2000*300 | 2500*700 | 3000*700 | 4000*300 |
| The quantity of shotblasting(kg/min) | 4*180 | 4*250 | 4*250 | 6*250 | 6*250 | 6*360 | 8*360 |
| The first enclosedquantity(kg) | 4000 | 4000 | 4000 | 4500 | 4500 | 8000 | 11000 |
| Roll brush adjustingheight(mm) | 200 | 200 | 350 | 450 | 600 | 850 | 900 |
| Total power (kW) | 90 | 78.3 | 113.5 | 156.6 | 204.8 | 224.55 | 293.6 |
| Airness size(m3/h) | 22000 | 17560 | 19000 | 19550 | 27758 | 28050 | 38000 |
Where This Industrial Shot Blasting Machine Is Used
This shot blasting machinery serves many industries. Here are the main applications.
- Steel service centers use these machines to clean coils and plates before shearing or slitting. Clean steel sells for a better price. It also reduces tool wear.
- Bridge and structural steel fabricators need rust-free surfaces for welding and painting. The pass-through shot blasting machine cleans beams and girders quickly. The conveyor moves long parts through in one pass.
- Shipyards use this equipment for hull plates and sections. Saltwater corrosion is a big problem. Shot blasting removes all contamination before primer goes on.
- Wind tower manufacturers rely on this industrial shot blasting equipment for tower sections. These parts are large and heavy. The YG-6930 and YG-6940 handle the biggest towers.
- Automotive parts makers clean stamped parts and frames. The process removes oil and scale. Paint sticks better afterward.
- Pipe and tube mills use the system for round and square tubing. The shot reaches all sides. Internal surfaces also get cleaned.
- Railcar builders prepare side panels and structural members. The conveyor system moves cars through at a steady pace.
The YG series fits any production line that processes metal. Custom configurations are available. Talk to the YG team about your specific needs.
Types of Industrial Shot Blasting Machine
There are several types of industrial shot blasting equipment. Each type fits different workpieces and production needs.
- Pass-Through (Through-Feed) Type:This Pass Through Shot Blasting Machine uses a roller conveyor to move parts through the blast chamber. Wheels blast from multiple angles. The machine runs continuously without stopping for loading. This type is best for high-volume production of plates, beams, pipes, and sections. Conveyor speed adjusts to match the cleaning required.
- Hanger Type:Parts hang from an overhead rail on hooks or spinners. They move through the blast zone while rotating. This gives full coverage on complex shapes. Castings, forgings, and engine blocks are good examples. The hanger shot blasting machine works well for heavy or odd-shaped parts that cannot sit on a conveyor.
- Tumble Belt Type:Small parts go into this machine. A belt tumbles them as they pass through the blast zone. Fasteners, springs, and small castings get cleaned in batches. The tumbling action exposes all surfaces. This type is efficient for high volumes of small items.
- Table Type:Large, heavy parts sit on a rotating table. The table turns while blast wheels clean the top surface. Gear housings, machine bases, and large weldments are typical. This type handles parts that are too big or too heavy for other systems.
- Floor and Road Type:This is a mobile industrial shot blaster. It moves over concrete or asphalt surfaces. It removes coatings, rubber, and surface contaminants. Road crews use it for bridge decks and parking garages. The bead blaster floor machine prepares floors for new coatings or overlays.
FAQ About Industrial Shot Blasting Machines
Q1: How do I choose the right model for my parts?
Look at your workpiece width, length, and thickness. The effective cleaning width must be wider than your parts. Check the section steel spec and steel sheet thickness ranges. YG-698 handles 800mm wide parts. YG-6940 handles 4000mm wide parts. Choose the model that fits your largest workpiece.
Q2: What is the conveyor speed range?
All YG models run from 0.5 to 4 meters per minute. Speed adjusts based on the cleaning level needed. Heavy rust needs slower speed. Light scale cleans faster.
Q3: How much shot does the machine use per minute?
Shot quantity ranges from 4×180 kg/min on the YG-698 to 8×360 kg/min on the YG-6940. More shot means faster cleaning. It also means higher production rates.
Q4: What about dust collection?
Every machine includes a dust collector. Air volume ranges from 17,560 to 38,000 m³/h. This keeps the workplace clean. It also meets environmental standards.
Q5: How often do wear parts need replacement?
Blades and liners wear over time. Replacement depends on hours of use and shot type. Steel grit wears parts faster than steel shot. YG provides wear part kits. Keep spares on hand to minimize downtime.
Q6: Can the machine handle different shot sizes?
Yes. The system accepts various steel shot and grit sizes. Change the shot to match your surface finish needs. Coarse grit for heavy rust. Fine shot for smooth finishes.
Q7: What is the shot blasting machine price range?
Price depends on model, options, and shipping. Contact YG directly for a quote. Factory-direct pricing saves money. Ask about bulk discounts for multiple units.
Why Choose YG Machinery
YG builds rugged, reliable shot blasting machinery for factories worldwide. The pass-through series handles plates, beams, and sections up to 4000mm wide. Each machine includes a dust collector, control system, and wear parts. YG also offers hanger shot blasting machines, bead blaster floor machines, and small skid loaders,etc. Buy direct from the manufacturer for factory pricing and full support. Spare parts ship quickly. Technical help is available by phone or email. Send your workpiece specs for a custom recommendation. Request a quote today.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
