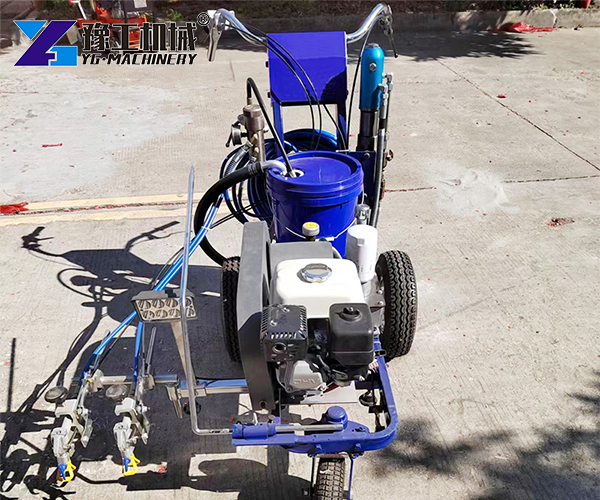

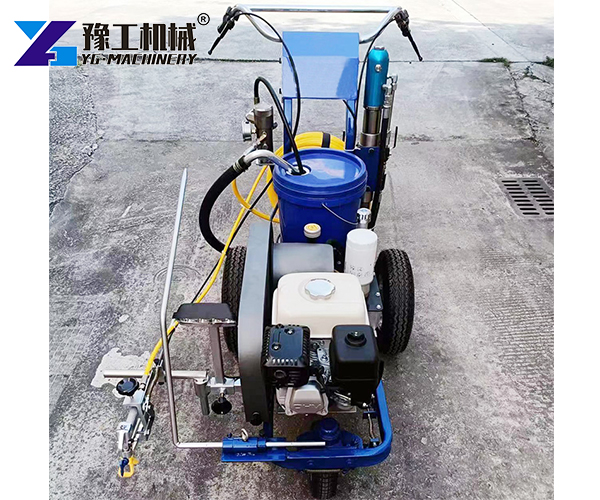

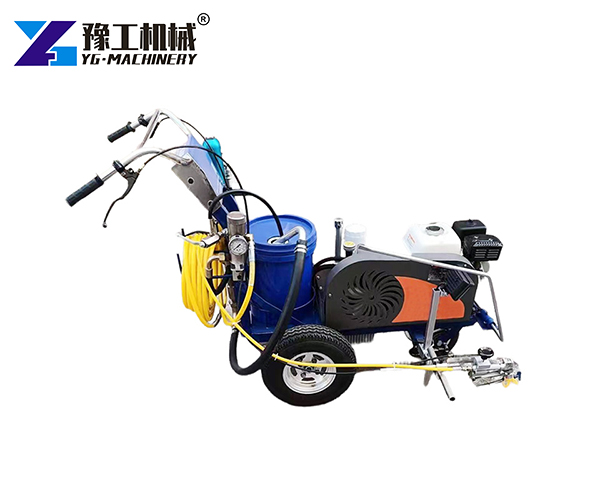

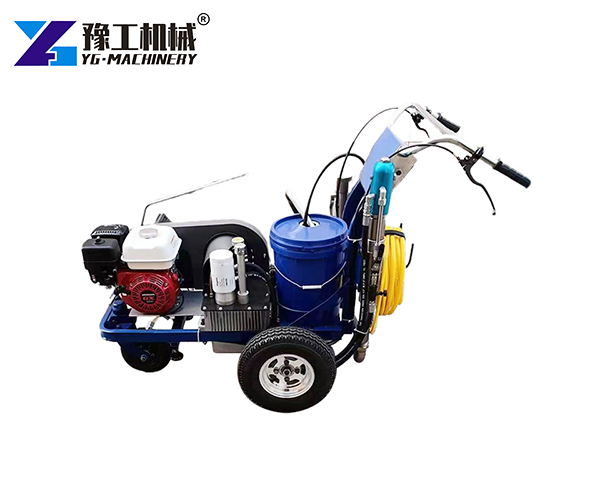

A cold paint road marking machine applies liquid paint onto roads, parking areas, and factory floors without using heat. It works with paint at normal temperature, so there is no need for pre‑heating equipment. This makes the machine quick to start and easy to clean after each job.The system uses a hydraulic pump to push paint through the spray gun. The paint exits in a steady fan pattern and creates clear, visible lines. For contractors who need reliable and cost‑effective equipment, this Road Painting Machine is a smart choice. It reduces daily fuel and cleaning costs while delivering consistent results.
Specifications of Cold Paint Road Marking Machine
YG Machinery offers two main models of this road painting machine. Both are powered by a petrol engine and use hydraulic drive. The table below lists the full technical data.
| Parameter | YG-8S (Single Gun) | YG-8D (Double Gun) |
| Motor Power | 5.5 hp Honda gasoline engine | 5.5 hp Honda gasoline engine |
| Plunger Pump | Electronic reversing | Automatic reciprocating commutation |
| Spray Gun | Single gun | Double gun |
| Work Mode | Hydraulic | Hydraulic |
| Pressure | 8–12 MPa | 8–12 MPa |
| Unloading Flow | 4.8 L/min | 8 L/min |
| Spray Width | 100–300 mm | 100–450 mm |
| Spray Thickness | 0.2–0.4 mm | 0.2–0.4 mm |
| Dimensions (L×W×H) | 1600 × 800 × 1200 mm | 1600 × 800 × 1200 mm |
| Weight | 120 kg | 120 kg |
The single‑gun model is suited for smaller projects, while the double‑gun version delivers higher output and wider coverage. Both maintain a uniform line thickness for professional finish.
Cold Paint Road Marking Machine vs. Thermoplastic Paint Machine
Many buyers ask how a Cold Paint Spray Road Marking Machine compares with a thermoplastic machine. The table below outlines the main differences.
| Feature | Cold Paint Machine | Thermoplastic Machine |
| Heating Required | No – works at ambient temperature | Yes – needs high heat to melt solid material |
| Paint Form | Liquid ready to use | Solid blocks melted before application |
| Line Thickness | Thin layer – suitable for standard markings | Thick layer – better for heavy duty roads |
| Machine Weight | Lighter and easier to move | Heavier, often with extra heating equipment |
| Setup Time | Ready in minutes | Requires 30–60 minutes of preheating |
| Durability | Good for moderate traffic | Excellent for high traffic and cold climates |
| Initial Cost | Lower investment | Higher equipment and material cost |
| Maintenance | Simple pump cleaning | More complex burner and melt system care |
A cold spray road marking machine is ideal when you need fast job starts and lower upfront spending. A thermoplastic paint machine works better for long‑lasting markings on busy highways. The right choice depends on traffic volume and project budget.
Applications of Cold Paint Road Marking Machine
This machine works on asphalt, concrete, and indoor floors. It is used in these common fields:
- Road and Highway Line Marking:Paints center lines, edge lines, and lane dividers on streets and highways. Handles both straight and curved sections well.
- Parking Lot Striping:Marks clear spaces, arrows, and crosswalks in parking lots. The lightweight frame makes repositioning quick and easy.
- Factory and Warehouse Floor Marking:Applies visible lines for safety zones, storage racks, and forklift routes on concrete floors. This road marking spray machine produces no smoke or strong odors, so it is safe for enclosed spaces.
- Airport Runway and Apron Marking:Provides accurate markings for runways and aprons. The spray width adjusts to meet different guidance line requirements.
- Plaza, Park, and Bicycle Lane Marking:Paints decorative and functional lines on walkways, bike paths, and public event areas. Its compact size allows easy transport between job sites.
FAQ
Q: What types of paint can this machine handle?
A: It works with solvent‑based traffic paint, waterborne paint, and one‑component acrylic paint – all applied without heating.
Q: Can I change the line width during operation?
A: Yes. Both models allow you to adjust spray width from narrow to wide, depending on the gun and tip used.
Q: Is the road striping machine difficult to move around?
A: No. It has a compact frame and is light enough for one person to maneuver on level ground.
Q: How long does the pump typically last?
A: The pump uses an oil‑lubricated design, which extends its service life well beyond typical industry standards with routine maintenance.
Q: Which model should I choose for my project?
A: Pick the single‑gun version for smaller jobs and the double‑gun version if you need higher output and wider coverage. For pricing, ask for a quote based on your specific needs.
About YG Machinery – Supplier of Cold Paint Road Marking Machine
YG Machinery is a Chinese manufacturer that designs and builds construction and road equipment for customers worldwide. The company produces the Cold Paint Spray Road Marking Machine described above, along with a range of other reliable machines. YG Machinery also offers a Hot Melt Road Marking Machine for durable highway markings, Hydroseeding Equipment for slope greening and erosion control, and a Concrete Laser Leveling Machine for large‑area floor flatness,etc.All products are built with quality components and come with factory support. For pricing, availability, or technical questions, please contact our sales team – we are happy to provide a quote and help you select the right model for your work.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
