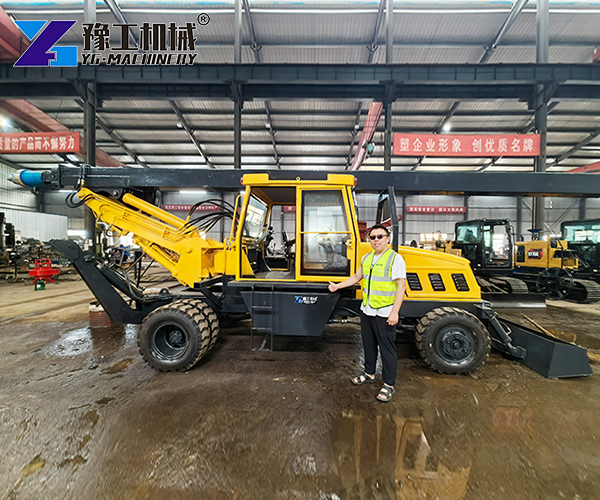

This wheeled rotary drilling rig is built for foundation piling work. It drills holes for building columns, bridge supports, and other deep foundations. The machine uses a rotating drill bit to cut through soil and rock. The rotation breaks the ground, and the bucket lifts the material out. It is simple to operate and moves fast between job sites.
This rotary drilling equipment works well in cities and tight spaces. The wheeled chassis lets you drive it on roads at 50 km/h. You do not need a trailer to move it. This saves time and money on transport.
Many contractors ask how this machine compares to other piling equipment. Here is a clear breakdown:
Feature
This Rotary Drilling Rig
Standard Pile Driver
Drilling method
Rotating bit cuts soil
Hammer drives piles in
Hole diameter
Up to 1600 mm
Limited by pile size
Depth capacity
13 m
Varies by hammer force
Mobility
Wheeled, 50 km/h
Often track-mounted
Noise level
Moderate
High (impact noise)
Soil types
Most soils and soft rock
Best for soft soils
Setup time
Quick
Slower
The main difference is how each machine works. A pile driver uses impact force to push prefabricated piles into the ground. This rotary piling rig drills a hole first, then you place the reinforcement and pour concrete. This gives you more control over hole diameter and depth. The rotary method also makes less noise, which matters in city areas.
High mobility:The wheeled chassis lets you drive this hydraulic rotary drilling rig on public roads. You do not need special permits or extra trucks for transport. The 50 km/h speed means you can move between sites in the same day.
Wide drilling range:This rotary piling machine handles holes from 600 mm to 1600 mm in diameter. The 13 m depth covers most foundation needs for residential and commercial buildings. You can adjust the setup for different hole sizes without changing the whole machine.
Simple hydraulic system:The CBJT2080 gear pump and 80 ml/r displacement give you reliable hydraulic power. The system runs at 20–25 MPa, which is standard for this class of equipment. This means parts are easy to find and repair costs stay low.
180-degree rotation:The mast rotates 180 degrees. This lets you drill in different positions without moving the whole rig. You can work around obstacles and reach tight corners.
Strong engine:The 4108 engine provides 88 kW of power. This is enough for most piling jobs. The engine is common in construction equipment, so service and parts are widely available.
Building foundations:This rotary piling machine drills holes for column footings in residential and commercial buildings. The 1600 mm diameter handles large loads. The 13 m depth reaches stable soil layers.
Bridge piling:Bridges need deep, strong foundations. This rotary well drilling rig creates the holes for bridge piers and abutments. The wheeled chassis lets you move along the bridge route easily.
Highway and railway work:Road and rail projects require many foundation holes. This machine drills them quickly. The 50 km/h travel speed means you can follow the project as it moves forward.
Urban construction:City sites have limited space. The wheeled design and 180-degree rotation help you work in tight areas. The lower noise level compared to pile drivers is better for neighbourhood projects.
Utility and infrastructure:Power poles, communication towers, and other structures need foundation holes. This rotary drilling machine handles these jobs efficiently.
Q:What soil types can this Rotary Drilling Machine handle?
This machine works in clay, sand, gravel, and soft rock. The rotating drill bit cuts through most common soil types. For very hard rock, you may need a different attachment.
Q:How deep can this rotary piling rig drill?
The maximum depth is 13 meters. This covers most foundation needs for buildings up to several stories high.
Q:What is the maximum hole diameter?
The drilling diameter range is 600 mm to 1600 mm. You can choose the right size for your project requirements.
Q:Is this hydraulic rotary drilling rig easy to transport?
Yes. The wheeled chassis lets you drive it on roads at 50 km/h. You do not need a low-boy trailer or special transport permits.
Q:What is the price of this rotary well drilling rig?
Prices vary based on configuration and options. Request a quote from YG Machinery for current pricing and availability.
Q:Do you offer spare parts and support?
YG Machinery provides spare parts and technical support. The common engine and hydraulic components mean parts are readily available.
YG Machinery manufactures construction equipment for foundation work. The company offers a range of machines including the Mini Concrete Pump Machine, Hydraulic Core Drilling Machine, and Pneumatic Water Well Drilling Rig,etc.All equipment is built for durability and ease of use. YG Machinery serves customers worldwide with competitive prices and reliable after-sales support. Contact the sales team for a quote on this rig or other equipment for sale.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
