A hydraulic pile breaker is a specialized attachment used to remove extra concrete from the tops of foundation piles. During construction, piles are often poured higher than needed to guarantee structural strength. Once the concrete sets, the excess material must be cut off to expose the steel reinforcement bars (rebar).
Traditional methods use jackhammers or diesel hammers. These are slow, loud, and often damage the rebar. A Hydraulic Concrete Pile Cutter solves these problems. It applies even pressure around the pile, cracking the concrete cleanly while leaving the steel untouched.This tool mounts on an excavator. It works on any foundation job, from small buildings to large bridges.
Specifications of YG Hydraulic Pile Breaker

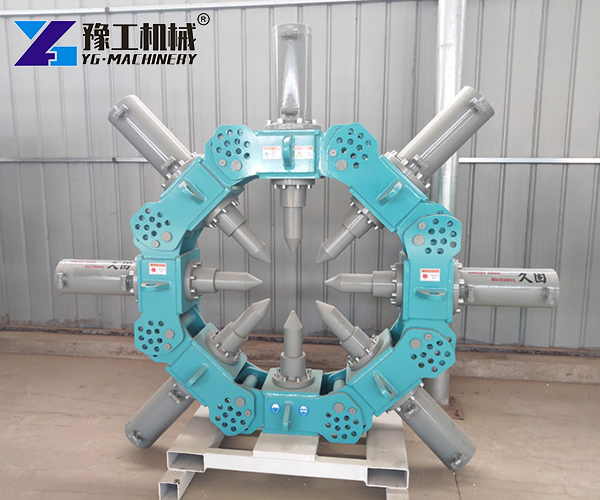

The table below gives the full specifications for YG Machinery’s Concrete Pile Cutting Machine models. The machine has a modular design. Each module weighs 335 kg and includes one hydraulic cylinder with a chisel diameter of 110 mm.
| Module Number | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Combination of the total weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
| Max.Cylinder Trip | 300mm | Chisel diameter | 110mm | Singlemodule weight | 335KG | ||||||||
| Max.Cylinder Pressure | 300MPa | Max.Hoist Capacity | ≤500mm | Singlemodulesize | 1015*865*340mm | ||||||||

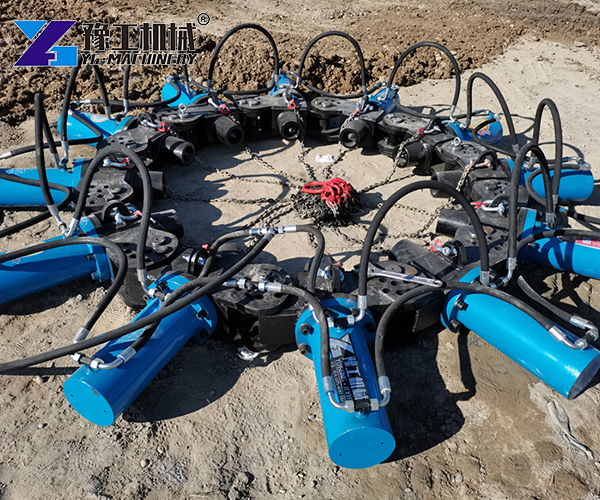

Because of the modular build, you can add or remove modules to fit different pile diameters. This makes it suitable for many projects.
How a Hydraulic Pile Breaker Works

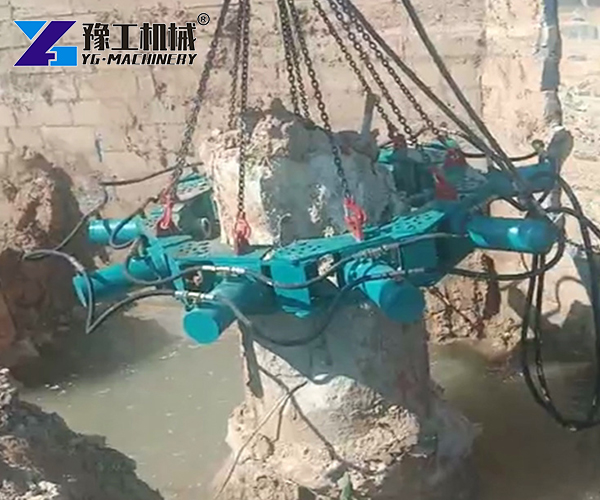

The working principle is straightforward. Hydraulic oil from the excavator (or a separate power station) flows into each cylinder. Every module has its own cylinder. When pressurised, all cylinders push their chisels inward at the same time.
These chisels apply force around the pile circumference. This creates controlled cracks in the concrete. The concrete breaks away in chunks, leaving a flat, clean surface. The rebar stays undamaged because the chisels stop automatically when they reach the steel.

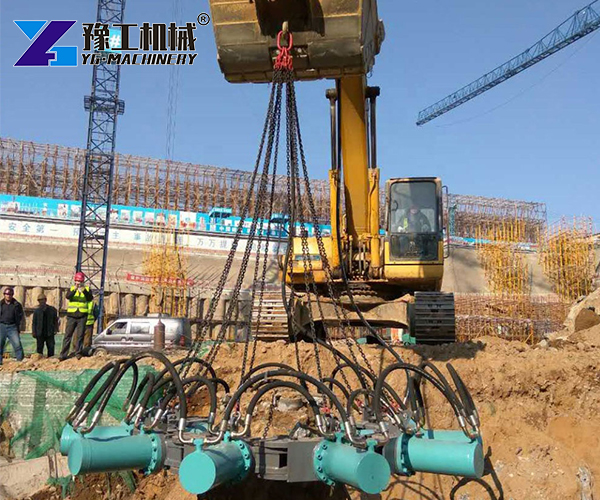

The operator controls the entire process from the excavator cab. Each pile takes only a few minutes to cut.
For bonded piles – where concrete sticks tightly to the rebar – the chisels push deeper, breaking the concrete into smaller pieces that are easy to remove.
Advantages of a Hydraulic Pile Cutting Machine
- High productivity:A hydraulic pile breaker can process 20 to 120 piles per day. Manual methods manage only 5 to 10 piles daily. This speed saves labour costs and keeps large projects on schedule.
- Clean, level cuts:The machine produces a uniform horizontal fracture. The cut surface is precise and even – no jagged edges or uneven heights.
- Rebar protection:The chisels are engineered to stop at the rebar. They break concrete without cutting, bending, or damaging the steel. This preserves the full structural strength of the foundation.
- Low noise operation:Unlike impact tools, this equipment uses static hydraulic pressure. There is no loud hammering. This is a major benefit for urban job sites with strict noise limits.
- Safer for workers:Operators stay inside the excavator cab, away from the cutting zone. There is no hand‑arm vibration, and no one needs to stand near the breaking head.
- Modular flexibility:Add or remove modules to match pile sizes from 400 mm up to 2500 mm. One machine handles a wide range of diameters, so you do not need multiple machines.
- Cost‑effective:Faster work means fewer paid labour hours. Less rebar damage means fewer repairs. The machine pays for itself quickly on medium to large projects.
Applications of a Hydraulic Pile Breaker
- Bridge construction:Bridges need deep pile foundations. A hydraulic concrete pile cutter removes pile heads rapidly, helping bridge builders meet tight deadlines.
- High‑speed rail:Railway foundations use hundreds of piles. The pile breaker machine handles the high volume with consistent quality.
- High‑rise buildings:Skyscrapers rely on strong pile caps. This hydraulic pile cutter prepares pile heads for connection to the main structure.
- Industrial facilities:Factories and warehouses use pile foundations for heavy loads. The concrete pile breaker preps these foundations quickly and cleanly.
- Civil infrastructure:Roads, tunnels, and utility projects all use piles. The hydraulic pile cutting machine works on every type of site.
- Residential developments:Even smaller housing projects benefit from faster, quieter pile preparation.The equipment works on round piles from 400 mm to 2500 mm in diameter and mounts on any excavator of 20 tons or more.
FAQ
Q: What is a hydraulic pile cutter used for?
It removes surplus concrete from pile tops, exposing the rebar for connection to the building or bridge structure.
Q: What pile sizes can it handle?
YG models cover diameters from 400 mm to 2500 mm. You adjust the machine by adding or removing modules.
Q: Will it damage the rebar?
No. The chisels are designed to stop at the steel, so the rebar stays intact.
Q: How many piles can it cut per day?
The machine typically processes 20 to 120 piles in an 8‑hour shift, depending on pile size and concrete strength.
Q: What excavator size do I need?
You need at least a 20‑ton excavator. For larger modules (12–18 pieces), a 30–40 ton machine is recommended.
Q: Can I buy spare modules separately?
Yes. Additional modules are available for purchase, so you can expand your machine’s capacity as your projects grow.
Q: What is the price of a concrete pile breaker?
Price depends on the number of modules and your specific requirements. Contact us for a custom quote based on your pile diameters and excavator model.
