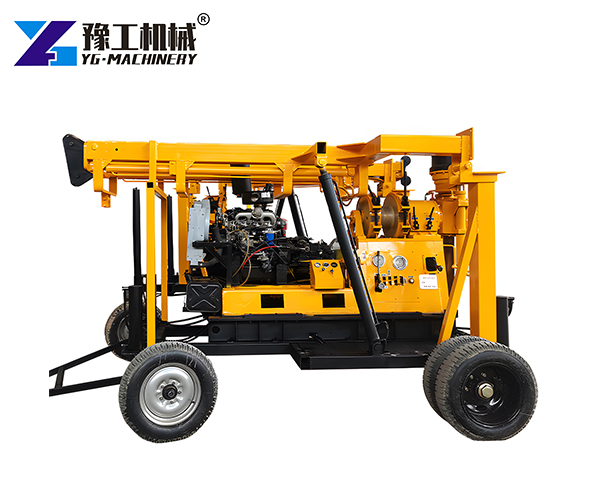

Water lies deep underground. Reaching it needs a machine that can handle tough ground and long hours. The YG borewell drilling machine uses a strong hydraulic system to cut through soil, clay, and rock. It runs smoothly, needs less manual effort, and gives clean holes every time. Operators can move it on site with ease and start drilling within minutes. This rig works well for farms, villages, and building projects.
Borewell Drilling Machine Parameters
| Parameter | Value | Parameter | Value |
| Torque | 7500 N.m | Moving head speed | 0–170 r/min |
| Stroke | 3400 mm | Lifting force | 70 kN |
| Feeding force | 36 kN | Drilling depth | 130–170 m |
| Drill pipe diameter | 50–250 mm | Drilling angle | 0–90° |
| Power | 55 kW + 18.5 kW | Weight | 5900 kg |
| Horizontal movement | 900 mm | Hydraulic working pressure | 20 MPa |
| Gradeability | 25° | Walking speed | 1 km/h |
| Other functions | Added lift / built in gripper | ||
| Construction dimension | 3550×2200×5650 mm | Transport dimension | 5600×2200×2100 mm |
These numbers tell the real story. Torque of 7500 N.m gives enough turning force to break hard layers. The 3400 mm stroke lets the bit go deep in one pass. Drilling depth from 130 to 170 meters covers most water wells. The pipe diameter range of 50–250 mm suits different hole sizes. Power comes from a 55 kW plus 18.5 kW system–strong yet fuel‑efficient. The 5900 kg weight keeps the rig steady while drilling. Hydraulic pressure of 20 MPa ensures power reaches the bit without drops. This bore drilling machine performs reliably across various ground conditions.
Advantages of the Hydraulic Borewell Machine
- Steady hydraulic pushing force – The hydraulic system delivers constant pressure. It keeps the bit moving forward even when the ground turns hard or rocky. Operators do not need to adjust power often.
- Quick rod changes without stopping – The ball clip and reverse function allow workers to add or remove drill pipes while the machine stays running. This cuts downtime and speeds up each job.
- Strong lifting capacity – The reinforced hoisting system gives extra pulling strength. When workers pull the drill string out of a deep hole, the machine handles the heavy weight safely and smoothly.
- Straight and stable drilling – The vertical axle box uses four high‑strength bearings. These hold the drill head in a straight line, reduce wobble, and prevent uneven wear on parts.
- Efficient power transfer – The high‑torque taper clutch sends power from the engine to the bit with less energy loss. It is also simpler to repair than other clutch types, which saves maintenance time.
- Extra gripping and lifting aids – The built‑in gripper holds pipes firmly during operation. The added lift feature helps move heavy components around the site, making setup and breakdown easier for the crew.
The Hydraulic Borewell Machine operates at 20 MPa and maintains consistent output even in demanding jobs.
Applications of the Borewell Drilling Machine
- Farm irrigation wells – Farmers use this rig to drill water supply holes for crops and livestock. It reaches deep underground water even during dry seasons, keeping fields productive. For smaller plots, a mini borewell machine can also be arranged.
- Construction foundation work – Builders drill test holes and pile sockets for houses, bridges, and roads. The machine’s adjustable angle and horizontal movement fit tight job sites.
- Mining exploration – Mining companies take core samples and check rock layers before starting full extraction. The rig’s torque and depth range handle the demands of exploration drilling.
- Geothermal and environmental monitoring – Install ground‑source heat pump loops or monitor water quality with observation wells. The machine drills clean holes with minimal surface disturbance.
Beyond these uses, the rig adapts to various ground types–clay, sand, gravel, and fractured rock. The drilling angle from 0 to 90 degrees allows vertical or slanted holes, which helps on hillsides or cramped areas. The 900 mm horizontal movement lets operators shift the drill position without moving the whole unit. The walking speed of 1 km/h and 25° gradeability allow travel on uneven ground and reach remote sites. Transport dimension of 5600×2200×2100 mm fits standard containers and flatbed trucks. For those who need a tractor borewell machine, YG also offers trailer‑mounted options–that version works well with farm tractors and is easy to tow.
FAQ

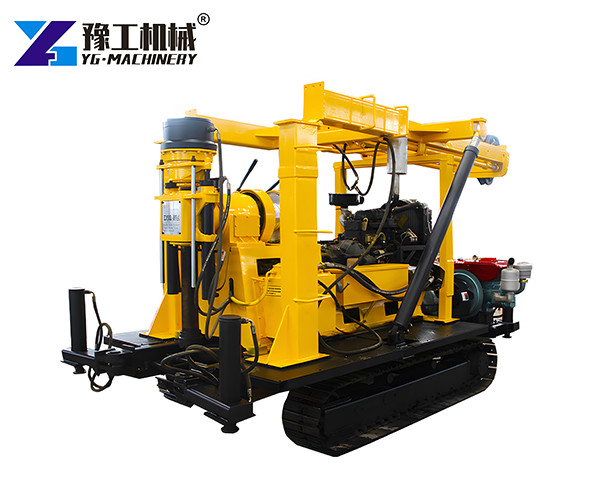

Q: What is the borewell machine price for this model?
Price depends on configuration, accessories, and shipping destination. YG offers factory‑direct pricing. Contact our team for a custom quote based on your project needs.
Q: What drilling depth can this rig reach?
It drills from 130 to 170 meters deep. This covers most agricultural, residential, and commercial water well projects.
Q: What pipe diameters does it support?
The drill pipe diameter ranges from 50 mm to 250 mm. This allows drilling holes of various sizes for different uses.
Q: What power source does it use?
It uses a dual‑power setup: 55 kW plus 18.5 kW. This gives reliable operation in different site conditions.
About YG Machinery–Borewell Drilling Rig Supplier
YG Machinery has been making drilling equipment since 2005. The factory in Zhengzhou, China, holds ISO9001 certification. Every unit is tested before shipping. YG provides pre‑sales advice, installation guides, and after‑sales service. Spare parts are available for all models.
Besides this borewell drilling rig, YG also supplies RC Drilling Rig Machine and Crawler Dredging Robot. If you need a compact mini borewell machine or a larger unit, we have options. For a price list, technical details, or a quote, contact YG Machinery today. Our team will help you choose the right machine and arrange shipping to your site. Buy direct from the factory and get reliable equipment with full support.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
