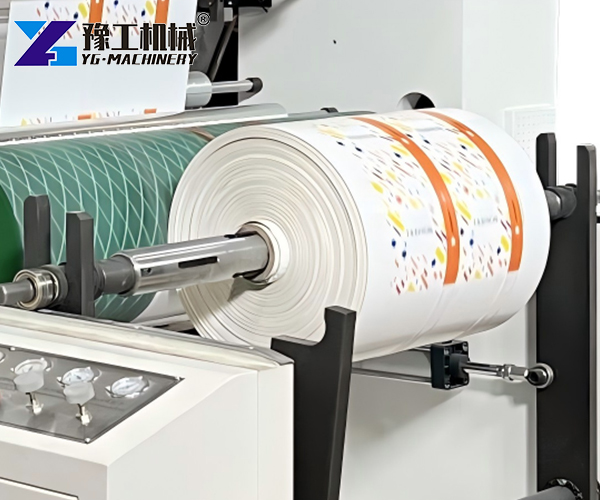

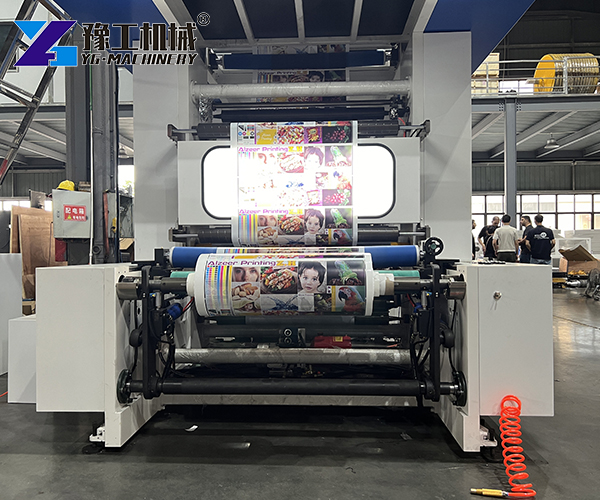

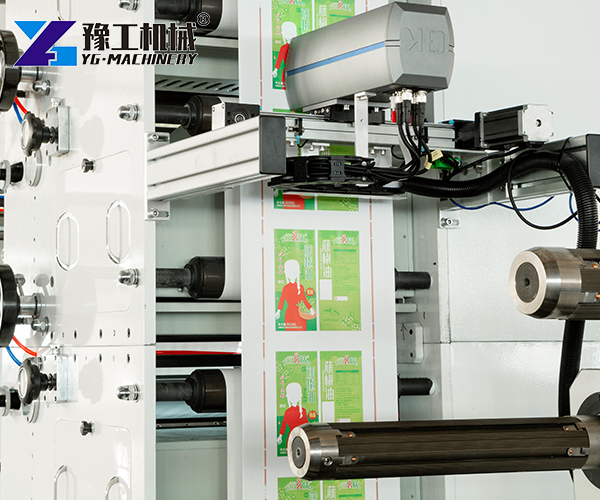

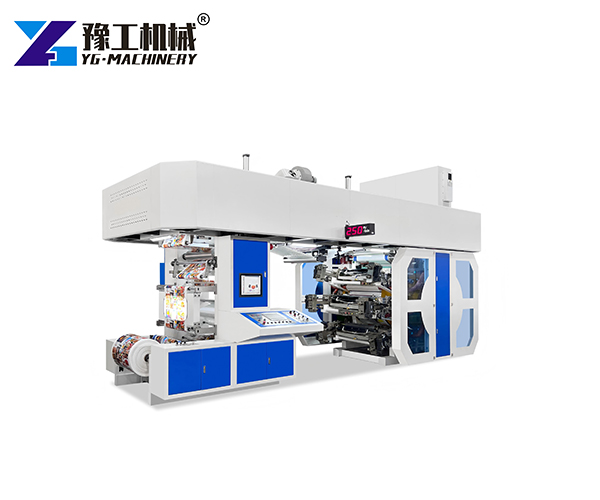

A flexo printing machine transfers ink from flexible plates onto paper, film, or other materials. It runs at high speed and handles continuous rolls. This equipment is common in packaging plants and label shops. The printing quality stays stable over long runs. Many businesses choose this technology for its reliability and low cost per piece.YG Machinery offers the YG series flexographic printing press. These units come in five sizes. They fit different web widths and production volumes. The design focuses on simple operation and steady output.
Key Specifications of Flexo Printing Machine
All models use a tension control system with a range of 10-100 KG and accuracy of ±0.5 kg. The YG-850 flexographic press accepts 30-300 gsm paper and runs with 100 PSI clean, dry air. Drying is done with IR heat, with UV as an option. The oven reaches up to 80°C.
Advantages of Flexographic Printing Press
This flexographic printer offers clear benefits for daily operations.
- Simple setup and color registration:The machine starts quickly. The color register stays accurate during production. Operators do not need to spend much time on adjustments.
- Automatic counting and stop:The meter counter sets the print quantity. When the target number is reached, the unit stops itself. It also stops if the material runs out. This saves material and labor.
- Pneumatic cylinder lift:The printing cylinder lifts and lowers with air pressure. The ink stirs automatically after lifting. This keeps the ink mixed and ready.
- Even ink spread:The anilox cylinder spreads the ink evenly. This gives consistent color across the whole roll. The result is less waste and fewer rejected pieces.
- Reliable drying:The drying system works with the printing speed. If the machine stops, the dryer breaks the circuit automatically. This prevents overheating and damage.
- 360° register adjustment:The longitudinal register device adjusts continuously. Operators can fine-tune alignment while the press runs. This reduces downtime.
- Variable speed control:The motor uses frequency control. Speed adapts to different jobs and materials. This flexo press handles changes without mechanical rework.
- Easy plate mounting:Jogging and stop buttons sit on the plate roller base. These make plate installation simple and safe.
Common Applications of Flexo Printing Machine
A flexo printer fits many industries. The YG series works with paper from 30 to 300 gsm. Below are typical uses.

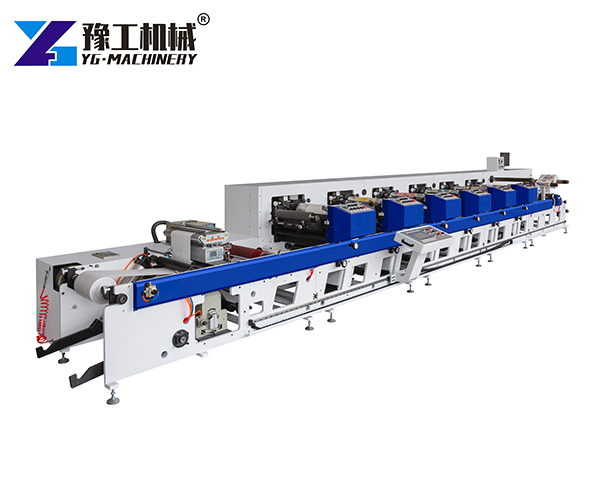

- Packaging lines. Corrugated boxes and folding cartons are common jobs. The machine prints logos, product names, and handling instructions directly on the board. This replaces pre-printed labels and saves cost.
- Flexible packaging. Snack bags, cereal liners, and shrink film all use flexographic printing. The press runs at 10-60 m/min on models YG-320 to YG-650, and up to 100 m/min on YG-850. This speed supports high-volume orders.

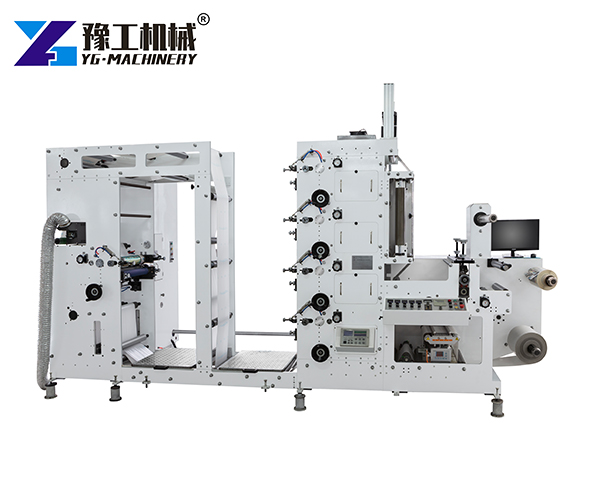

- Label production. Self-adhesive labels for bottles, jars, and tubes are printed in 1 to 8 colors. The registration accuracy of ±0.12 mm on YG-850 ensures fine text and small barcodes are clear.
- Paper products. Paper cups, bags, and envelopes are printed in single or multiple colors. The machine handles rolls up to 1000 mm in diameter on the YG-850. This reduces roll changes and increases uptime.
- E-commerce shipping materials. Corrugated mailers and shipping boxes need clear branding. The flexo press prints large areas of solid color and fine details on the same run.
FAQ
Q: What materials can this flexographic machine run?
A: The YG-850 runs paper from 30 to 300 gsm. Other models run similar paper stocks and films. The anilox roller and plate system adapt to different substrates.
Q: How many colors can I print?
A: All models support 1 to 8 colors. You choose the number of printing stations based on your jobs. More stations mean more color options in one pass.
Q: What is the registration accuracy?
A: Models YG-320 through YG-650 hold ±0.15 mm. The YG-850 holds ±0.12 mm. This keeps colors aligned and text sharp.
Q: What power do I need?
A: All models run on 380V ±10%, 3 phase, 50 HZ. Check your local supply before ordering. The machine also needs clean, dry air at 100 PSI for the YG-850.
Q: How does drying work?
A: The standard system uses IR heat. UV drying is optional. The oven reaches 80°C maximum. This works for water-based and solvent-based inks.
Q: Can I get a price quote?
A: Yes. Contact YG Machinery for a quote on any model. The price depends on color count, options, and shipping.
Why Choose YG Flexo Printing Machine?
YG Machinery builds this Flexo Printer and other converting equipment. The company also supplies paper packet machine, wet wipes machine, egg tray production machine, and more. Why choose YG Machinery? Because every unit is tested before shipping. Spare parts are ready in stock. Technical support responds quickly. The design is practical and the build is reliable. For a flexo printing machine price or to buy a unit, contact our team directly. We will give you a quote with specs and delivery times.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
