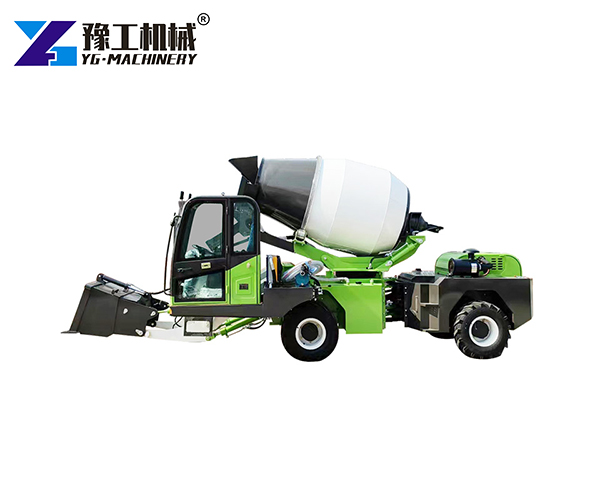

The Self Loading Concrete Mixer Machine is an all‑in‑one unit that loads aggregates, mixes concrete, and transports the fresh mix to pour points–all by itself. One operator controls the entire cycle. This design removes the need for separate loaders, batching plants, or ready‑mix trucks. It cuts labor, reduces equipment costs, and speeds up concrete placement on any job site.
Specifications of the Self Loading Concrete Mixer
Below is a specification table of a typical model (CMT1500) to give you a clear reference. Other models are available with different capacities and power options.
| Category | Specifications |
| Model | CMT1500 |
| Rated Power | 55kW |
| Engine Model | Quanchai 4B2-75m22 |
| Dimensions (L×W×H)(mm) | 6400×2550×2650 |
| Wheelbase | 2400mm |
| Vehicle Weight | 4185kg |
| Driving Form | Torque converter |
| Maximum Climbing Angle | 30° |
| Minimum Turning Radius | 4700mm |
| Minimum Ground Clearance | 280mm |
| Maximum Speed | 30km/h |
| Gearbox Model | ZL-265 gearbox |
| Gearbox Gears | 4 forward, 4 back |
| Water Tank Volume | 400L |
| Water Supply Method | Time relay |
| Fuel Tank Capacity | 63L |
| Oil Capacity | 16L |
| Hydraulic Capacity | 63L |
| Reducer | KY07-2-0 |
| Pump | FC 50/40 |
| Motor | BM5-160 |
| Drum Capacity | 1700L |
| Drum Rotation Speed | 13 rpm |
| Concrete Yield | 1.5 m³ per batch |
| Mixing Drum Features | Double helical agitating screw and convex bottom |
Advantages of the Self Loading Concrete Mixer Machine
- All‑in‑One Operation Saves Labor – This self loading mixer loads, weighs, mixes, and transports concrete without extra equipment. One worker runs the whole process. You reduce crew size and payroll costs significantly, while gaining full control over mix quality.
- Mobility for Rough and Tight Sites – The self loading mobile concrete mixer moves easily over dirt, gravel, and slopes. Its strong driving system and high ground clearance let you work in remote areas, mountain roads, or crowded city streets. You bring the batching plant right to the pour point.
- Fresh Concrete, Zero Waste – With a self mixing concrete truck, you produce concrete only when and where you need it. No waiting for delivery trucks. No leftover hardened concrete to dispose of. The mixing drum with advanced screw design ensures every batch is uniform and consistent.
- Flexible Capacity Options – These machines come in various drum sizes and engine powers, from small units for village roads to larger ones for commercial buildings. You can choose a model that matches your typical batch volume, so you never over‑size or under‑size your investment.
- Easy Maintenance and Long Service Life – The automatic loading concrete mixer uses durable hydraulic components and simple mechanical structures. Daily checks are quick. Spare parts are widely available. This keeps your machine running for years with low downtime.
Applications of the Self Loading Concrete Mixer
- Road and Bridge Construction – Pour concrete for highways, rural roads, bridge abutments, and culverts. The machine travels along the project line, supplying continuous fresh concrete without stopping.
- Residential and Commercial Buildings – Ideal for house foundations, columns, slabs, and parking lots. It works in tight residential areas where large trucks cannot enter.
- Water Conservancy and Irrigation – Build canals, reservoirs, and drainage ditches. The self loading concrete mixture delivers concrete along long waterway projects with ease.
- Remote and Off‑Grid Projects – No batching plant nearby? This machine is your own portable plant. Use it for farm buildings, wind turbine bases, or mountain shelters.
- Urban Infrastructure and Repairs – Repair sidewalks, manholes, and curb lines. Its compact turning radius allows operation in crowded neighborhoods with minimal disruption.
FAQ–Self Loading Concrete Mixer Machine
Q: How much concrete can these machines produce per batch?
A: Capacities range from 1.0 m³ to 2.0 m³ per batch, depending on the model. You can select the size that fits your project volume.
Q: Does one person really operate the whole machine?
A: Yes. The operator uses simple joystick controls to load aggregates, add water, mix, drive, and discharge. No second person is needed.
Q: What fuel do they use?
A: Most models run on diesel engines. They are fuel‑efficient and reliable for heavy construction work.
Q: Can these self loading mixture climb steep slopes?
A: Yes. Typical models have a climbing angle of 25°–30° and multi‑speed gearboxes to handle inclines.
Q: How do I maintain the Automatic Loading Concrete Mixer?
A: Wash the drum thoroughly after each shift. Check hydraulic fluid and engine oil daily. Replace filters as recommended in the manual.
Q: Can I get a price quote for a specific model?
A: Yes. We offer factory‑direct quotes for all models. Tell us your capacity and power needs, and we will send you the best price.
Q: Is training required to operate it?
A: Basic training is helpful but not complex. Most operators become proficient within a few days.
YG Machinery–Self Loading Concrete Mixer Machine Supplier
YG Machinery is a leading manufacturer of construction machines, trusted by customers in over 50 countries. Our Self Loading Concrete Mixer Machines are built with robust components, strict quality inspection, and tested under real working conditions. We offer worldwide shipping, spare parts availability, and responsive after
‑sales support. Beyond concrete mixers, YG Machinery also produces the Glass Installation Robot for safe glass handling on high‑rise facades, and the GRC Spray Machine for glass‑fiber reinforced concrete applications, and the Hydraulic Core Drilling Machine for accurate core sampling and drilling in construction and mining projects,plus other reliable construction tools. Contact us today to buy, request a quote, or ask about our latest promotions. We give you competitive factory prices and fast delivery.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
