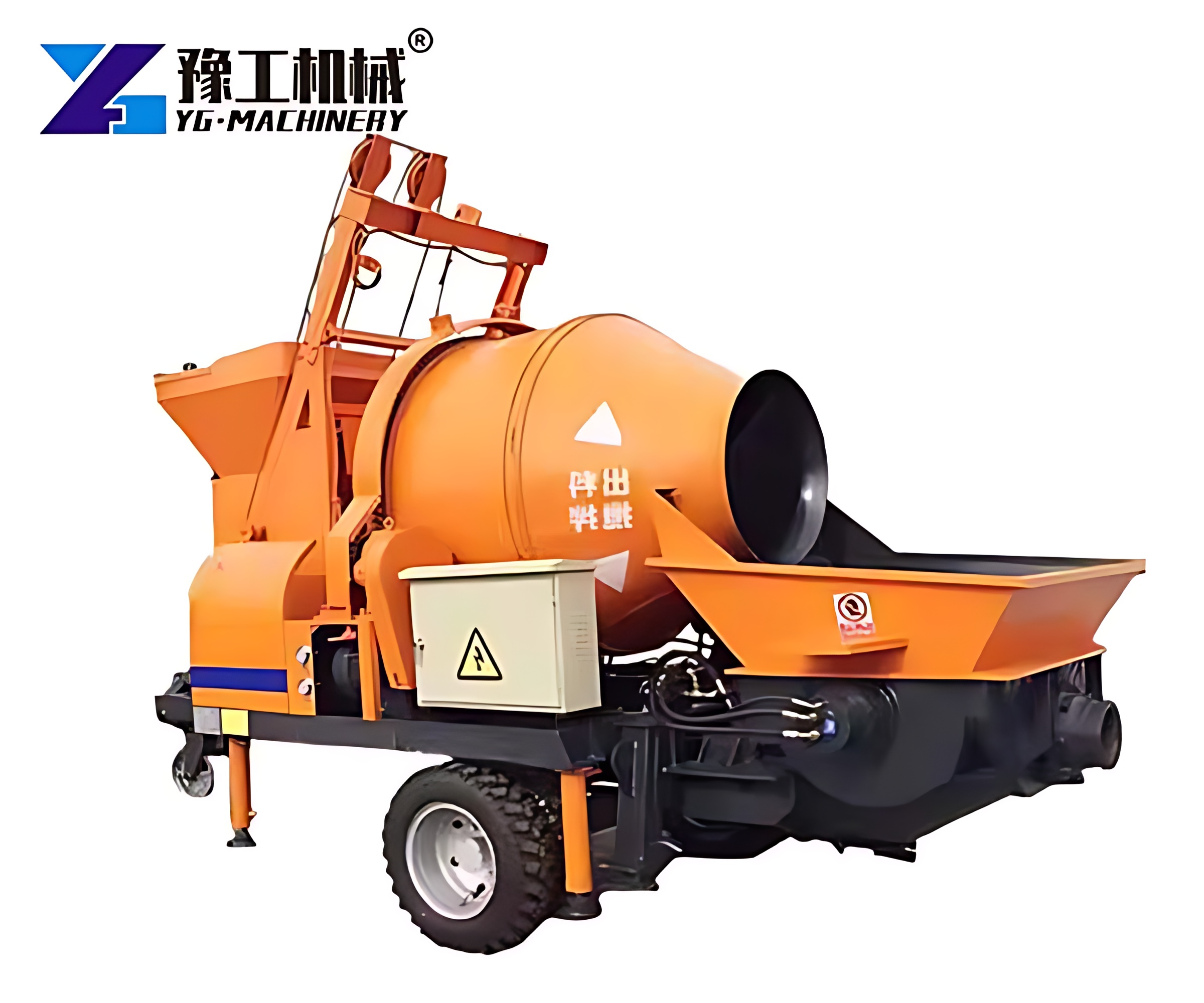

A concrete mixer pump combines mixing and pumping in one unit. The machine takes cement, sand, gravel, and water, then mixes them into concrete. After mixing, it pumps the concrete through pipes to the target place.

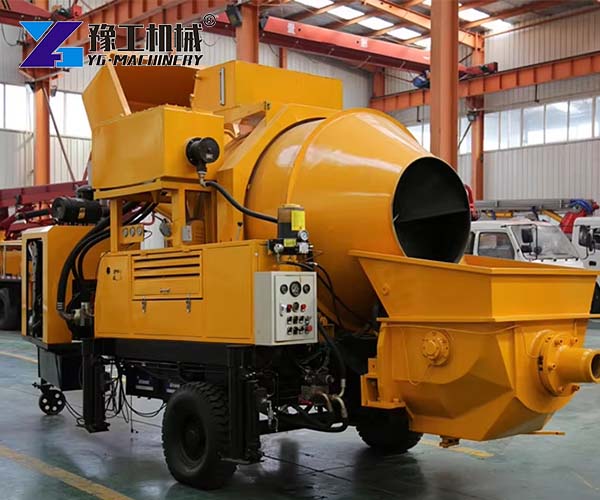

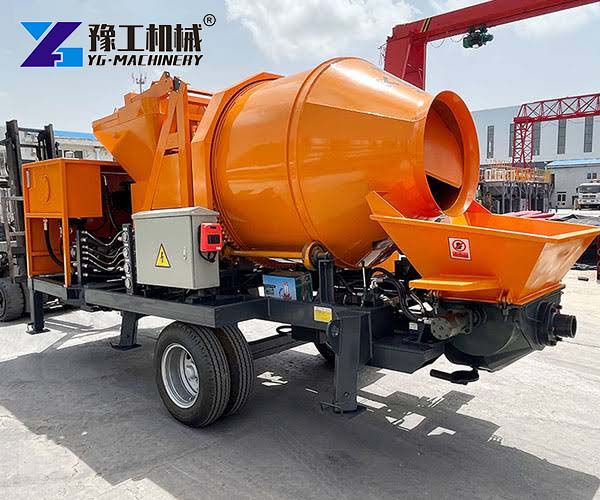

This is useful for sites with narrow roads or high floors. A portable concrete mixer pump is easy to move and set up. Many buyers search for a concrete mixer pump for sale when they need a compact and efficient solution. The cement mixer with pump design reduces the need for separate mixing and pumping equipment. It also lowers labor costs and shortens project time. The concrete mixture pump can work in different weather conditions. It is a common choice for building, bridge, and tunnel projects.

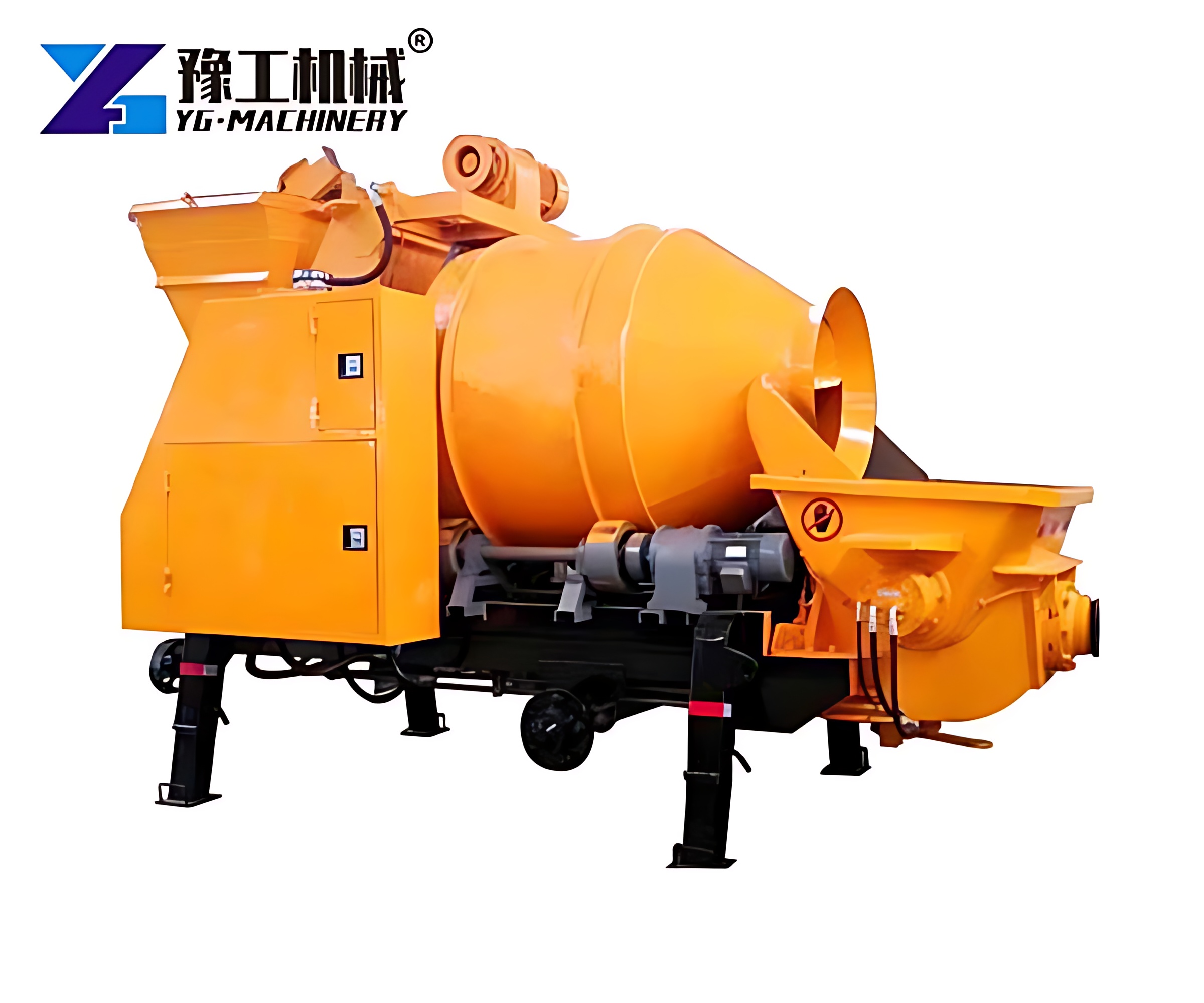

Specifications of Concrete Mixer with Pump
| Model | YG-350 | YG-550 |
| Theoretical delivery volume | 20-30M3/h | 40M3/h |
| Bone particle diameter | 0.5-40mm | 20-40mm |
| Greatest pressure | 20mpa | 20mpa |
| Bore*Stroke | 180*1000mm | 200*1110mm |
| Motor Power | 45kw | 55kw |
| Oil pump power | 100(column)L/S | 140(column)L/S |
| Delivery pipe | 125mm | 125mm |
| Genset power | 150kw | 150kw |
| Machine size | 6100*2000*2700mm | 6200*2000*2700mm |
| Weight | 5500kg | 6500kg |
How the Concrete Mixing Pump Works
- Loading – Materials are loaded into the hopper. The mixer starts to blend them. The operator checks the mix ratio before starting.
- Mixing – The drum or shaft mixes cement, sand, gravel, and water. The mix becomes uniform. A good mix helps the concrete flow smoothly.
- Pumping – The mixed concrete enters the pump chamber. A piston pushes it through the delivery pipe. The pipe size must match the machine.
- Delivery – The concrete moves through pipes to the work area. The operator controls the flow speed. The machine can pump to different heights and distances.
Operation Notes of Concrete Mixing Pump
- Check Power Supply – Make sure the voltage and frequency match the machine. Use a stable power source. A genset can provide backup power if needed.
- Inspect Delivery Pipe – Check pipes for damage or blockages. Tighten all connections. A loose pipe can cause leakage and slow down the work.
- Control Material Size – Keep stone size within the machine’s range. Large stones can block the pump. Always check the manual for the correct range.
- Monitor Pressure – Watch the pressure gauge. Stop the machine if pressure is too high. High pressure can damage the system.
- Clean After Use – Flush the system with water. Clean the hopper and pipes to prevent hardening. This keeps the machine ready for the next job.
Concrete Mixer with Pump User Case
A construction company in Colombia used a YG-350 concrete mixer pump for a housing project. The site had narrow roads and limited space. The machine mixed and pumped concrete to the second floor. It saved about 30% time compared to manual mixing and wheelbarrow delivery. The company later bought another unit for a new project. The concrete mixture pump worked well in hot weather. The team said the portable concrete mixer pump was easy to move and operate. The motor power of 45kw was enough for their daily work. They also liked the 125mm delivery pipe because it reduced blockages. After the project, the company asked for a price on a larger model for a bridge job.
FAQ
Q: Can a Concrete Mixer Pump work on small sites?
A: Yes. The pump is easy to move and set up. It fits narrow roads and limited space. Many small projects use it.

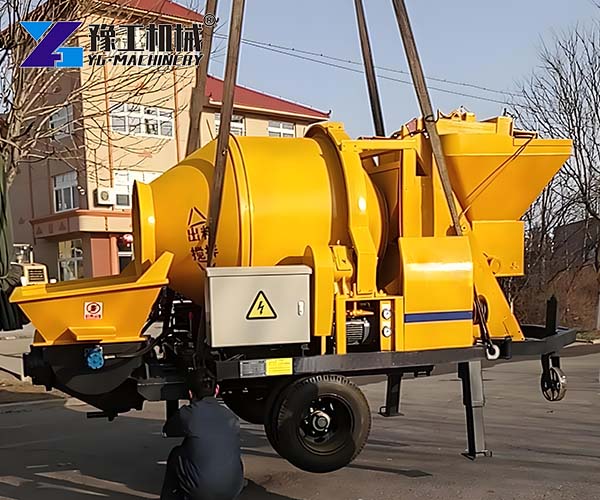

Q: What is the price of a concrete mixer pump for sale?
A: Price depends on model, power, and delivery volume. Send your project details to get a quote. YG will recommend a suitable model and price.
Q: How often should I clean the cement mixer with pump?
A: Clean after every use. Flush the pipes and hopper with water. This prevents concrete from hardening and keeps the machine ready.
Q: What size stones can the machine handle?
A: It depends on the model. Always check the manual. Large stones can block the pump. Keep material size within the machine’s range.
About YG Machinery
YG Machinery provides construction and industrial equipment. Its product range includes Commercial EV Charging Stations, Industrial Excavator, and Crawler Dredging Robot,etc. For a concrete mixer pump quote, send your project details. The team will recommend a suitable model and price. Contact us for a free quote.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
