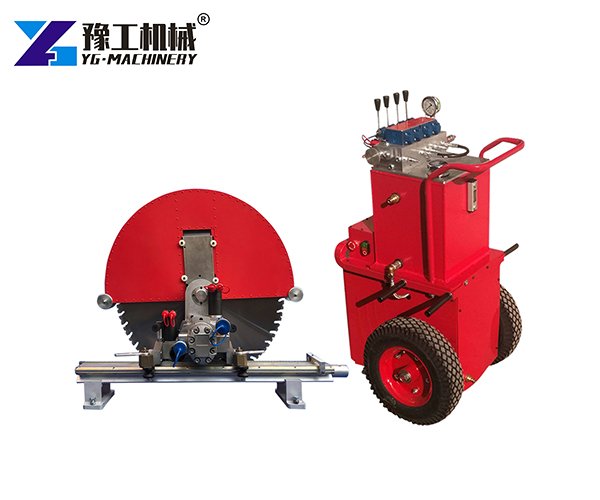

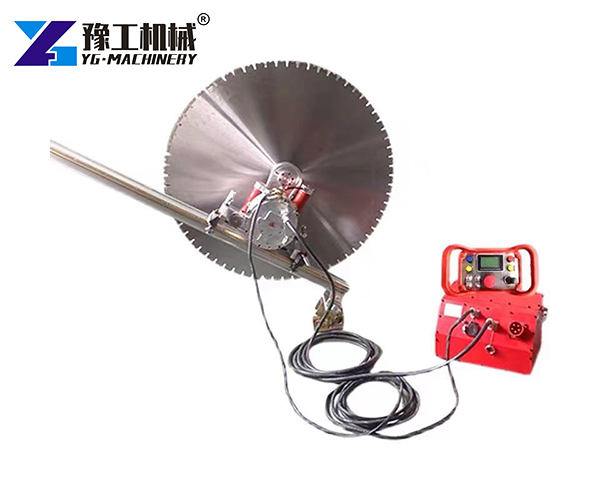

A hydraulic wall saw is a machine used to cut through concrete walls, reinforced concrete, and masonry. It runs on hydraulic power from a separate power station. This gives it more force than standard electric saws. The saw moves along a track mounted on the wall. This ensures straight, clean cuts every time. Whether you are making door openings, cutting elevator shafts, or doing bridge repairs, this tool gets the job done fast. It cuts with less dust and less vibration than traditional methods. If you are looking for a reliable concrete wall sawing machine, this is the right choice.
Technical Specifications Of Concrete Wall Sawing Machine
Hydraulic Oil Pump
Model
YG 600
YG 700
Max. power
25KW
30KW
Motor cooling method
Air cooling
water cooling
Rated voltage
380V 50HZ
380V-420V 50HZ-60HZ
Pressure stages
3
3
Max.operating pressure
200bar/20Mpa
210bar/21Mpa
Oil flow rate
30-80L/min
40-100L/min
Dimensions
600mm*650mm*1050mm
500mm*520mm*1100mm
Weight
220kg
140kg
WallSaw
Saw blade diameter range
800-1400mm
800-1600mm
Cutting depth
620mm
730mm
Max. working pressure
180bar/18Mpa
200bar/20Mpa
Max. oil flow rate
100l/min
100l/min
Gearing
Gear
Gear
Rotation speed
450/950/1300Rpm
450/850/1200Rpm
Dimension
400mm*420mm*400mm
400mm*420mm*400mm
Weight
38kg
39kg
The YG 700 offers more power and deeper cuts. The YG 600 is lighter and easier to move. Both models use gear-driven systems for reliable torque. The hydraulic concrete cutter runs smoothly even under heavy loads.
This concrete wall saw cutting machine delivers serious benefits on the job site.
High Cutting Speed – The hydraulic system provides strong, steady power. It cuts through reinforced concrete much faster than manual methods. This means shorter project timelines and lower labor costs.
Precision Cutting – The track-mounted wall saw follows a straight line. The cut surface is smooth and flat. You get accurate openings without extra finishing work.
Low Vibration – The saw cuts without shaking the surrounding structure. This protects nearby walls and equipment from damage.
Safe Operation – The system includes overload protection. The hydraulic seals prevent oil leaks. The machine shuts down automatically if the load gets too high.
Versatile Use – This equipment works on walls, floors, and ceilings. It handles reinforced concrete, brick, and stone. Common uses include building renovation, bridge repair, tunnel work, and road construction.
Hydraulic Wall Saw vs Electric Wall Saw Machine–Which One to Choose?
Both types have their place. Here is how they compare.
Power – The hydraulic version has more cutting force. It handles thicker walls and harder materials. The electric wall saw works well for smaller jobs.
Weight – Electric wall saw machines are lighter and easier to carry. Hydraulic models are heavier but more stable during cutting.
Setup – Electric saws plug directly into a power outlet. Hydraulic saws need a separate power station. Setup takes a bit longer, but the cutting power is worth it for big projects.
Cooling – Both types use water cooling during cutting. This keeps the blade from overheating and extends blade life.
Best Use – Choose the hydraulic model for heavy commercial and industrial work. Choose an electric wall saw for lighter tasks, tight spaces, or jobs where noise is a concern.
Q: Do I need water for cooling? Yes. Water cooling is required during cutting. It keeps the blade temperature down and extends blade life. A water pipe connects to the inlet on the machine.
Q: Can the guide rails be connected together? Yes. Each rail section connects with a simple snap mechanism. You can extend the track to match the length of your cut.
Q: What is the waterproof rating? The saw has an IP65 waterproof rating. This means it is protected against dust and water jets. It works reliably in tough job site conditions.
YG Machinery is a professional manufacturer of construction equipment. Our wall saws are exported to over 15 countries including the US, Canada, France, Australia, and Saudi Arabia. Every machine goes through strict quality inspection from material selection to final testing. We follow international standards at every step. Beyond wall saws, YG Machinery also offers Concrete Wall Sawing Machine, Static Concrete Pump, and Suction Lifter. Whatever your job requires, we have the equipment to get it done. Contact us today for a quote and pricing details. Let us help you find the right machine for your next project. 【WhatsApp/WeChat/Phone/Skype】+86 13937183602
