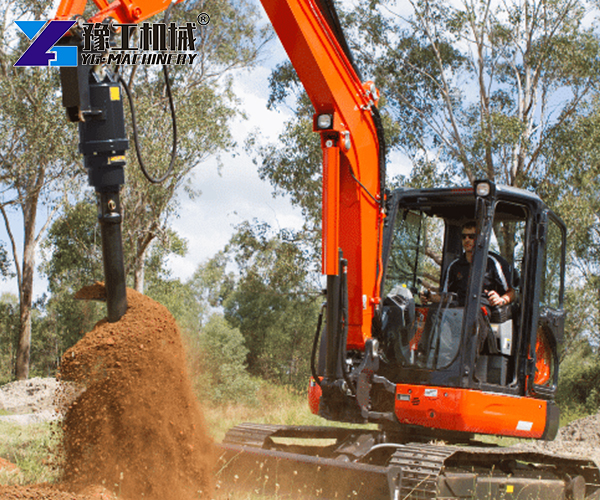

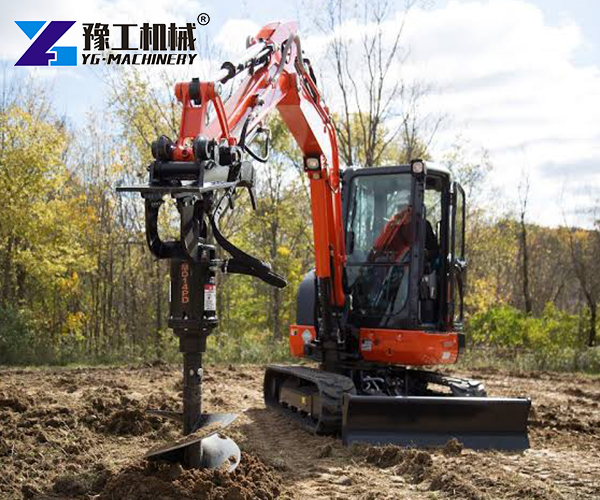

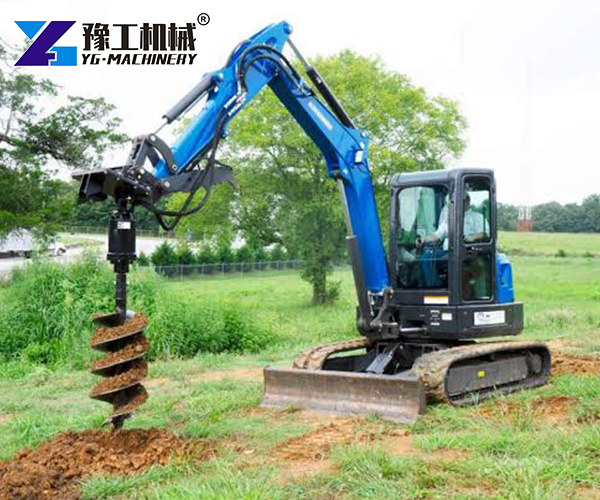

An excavator auger attachment turns a standard excavator into a fast, powerful hole drill. It hooks to the hydraulic system and spins a steel bit to bore into soil, clay, or gravel. For fence posts, tree planting, or footings, the auger drill excavator cuts digging time by hours. It also reduces manual labor and gives straight, even holes every time. To pick the correct model, match your machine’s weight, oil flow, and pressure. If you plan to buy, review the specs below and request a quote for the model that fits your job.
Model Specifications of Excavator Auger Attachment
| Model | YGMINI | YG1500 | YG2000 | YG2500 | YG4000 | YG4500 | YG5000 |
| Applicable(T) | 0.8-2T | 1-2 | 1.5-3 | 1.5-3 | 2-4 | 2-4 | 3-6 |
| Torque Range(Nm) | 305-1175 | 545-1580 | 656-2270 | 855-2510 | 1290-4580 | 1290-4580 | 1608-4890 |
| Oil pressure(bar) | 60-200 | 60-200 | 60-200 | 60-200 | 60-210 | 60-210 | 60-210 |
| Oil flow(lpm) | 12-45 | 20-75 | 30-75 | 30-75 | 40-95 | 40-95 | 40-95 |
| Speed (rpm) | 28-95 | 32-97 | 35-98 | 35-90 | 32-77 | 32-77 | 28-57 |
| Output shaft(mm) | 65Rd | 65Rd | 65Rd | 65Rd | 65Rd | 65Rd | 65Rd |
| Weight(kg) | 38 | 49 | 50 | 50 | 52 | 87 | 88 |
Key Benefits of the Excavator Auger Attachment
This attachment gives operators clear advantages on any drilling job. Each benefit comes from the engineering behind the design.
- Strong torque for hard ground – Torque is the turning force that drives the bit down. Higher torque breaks through clay, compacted dirt, and rocky soil without stalling. For example, the YG5000 offers up to 4,890 Nm, enough for most construction sites. Even the smaller YGMINI provides 305 Nm for light work. This makes the excavator auger drill reliable in varied conditions.
- Wide oil flow compatibility – Oil flow (measured in litres per minute) decides how fast the auger spins. Models accept 12 to 95 lpm, so they fit many excavators, from compact units to medium-sized machines. This broad range means you do not need to modify your excavator’s hydraulic system.
- Lightweight build – Weight affects machine stability. The YGMINI weighs only 38 kg, and the heaviest YG5000 is 88 kg. A lighter auger drill excavator reduces wear on the boom and arm, and keeps the excavator balanced during deep drilling.
- Adjustable speed range – Speeds vary from 28 to 98 rpm. Operators can slow down for tough layers or speed up in soft soil. This control improves drilling accuracy and prolongs bit life.Standard shaft design – The 65Rd output shaft is common across all models. You can swap auger bits of different diameters without extra adapters, saving time and money.
Common Uses for the Excavator Auger Attachment
- Fencing and post drilling – Ranchers and contractors drill dozens of post holes per day. The auger produces clean, vertical holes, so posts stand straight and firm. This reduces the need for backfilling and tamping.
- Landscaping and tree planting – Nursery workers and landscapers use the auger drill attachment for excavators to dig holes for trees and shrubs. The uniform hole size matches root balls, helping new plants establish quickly.
- Building foundations – For decks, sheds, and light structures, crews drill holes for concrete footings. The auger reaches precise depths, ensuring each footing carries the load evenly.
- Utility pole installation – Power and telecom companies set poles for lines and streetlights. A mini digger auger on a small excavator works in tight urban spaces, while larger models handle roadside work.Agricultural projects – Farmers drill holes for irrigation risers, vineyard posts, and greenhouse anchors. The work is fast and causes minimal soil disturbance.
How to Choose the Right Excavator Auger Attachment
Selecting the correct model depends on three factors: your excavator’s weight, oil flow, and ground condition. Follow these steps to make a confident choice.
- Match the weight class – Each model fits a specific range of excavator weight (see table). For a 1.5‑ton mini excavator, choose YG1500 or YG2000. For a 5‑ton machine, YG5000 is suitable. Using an undersized mini excavator auger can damage the unit, while an oversized one strains the excavator.
- Check hydraulic oil flow – Your machine’s oil flow must fall within the model’s lpm range. If your excavator delivers 40 lpm, models YG4000 and YG4500 are ideal. If flow is lower, select YGMINI or YG1500. Always confirm this number in your excavator’s manual.
- Consider ground hardness – For soft soil, lower torque models work fine. For rocky or frozen ground, pick a high‑torque unit like YG5000. You can also pair it with a heavy‑duty auger bit for extra performance.
- Ask about price and availability – Price depends on model and order quantity. Contact our team for a current price list. We offer competitive rates for single units and bulk orders. Request a free quote online.
FAQ
- Can I use this on a mini excavator? – Yes. The YGMINI and YG1500 are designed for mini excavators from 0.8 to 2 tons. They are light and easy to handle.
- What is torque and why is it important? – Torque is the rotational force that turns the bit. Higher torque lets you drill through harder materials. For clay or gravel, choose a model with at least 1,000 Nm.
- How do I know if my excavator has enough oil flow? – Look at your machine’s hydraulic specs for litres per minute. Then match it to the flow range in the table. If your flow is between two models, pick the one with the higher flow capacity to avoid overheating.
- Do I need special bits? – All models use a 65Rd shaft, which is a standard size. You can buy different bit diameters for holes from 100 mm to 600 mm. We also sell bits separately.
- Is the auger drill attachment for excavators for sale individually? – Yes, each model is for sale as a standalone unit. We also offer packages with bits and hoses. Ask for a quote to see options.What warranty do you provide? – YG Machinery gives a standard warranty against manufacturing defects. Extended coverage is available. Contact us for details.
About YG Machinery
YG Machinery designs and manufactures hydraulic attachments for construction and earthmoving equipment. Our product range includes the excavator auger series, Excavator Magnet, Hydraulic Concrete Splitter,Concrete Crusher Bucket,etc.All products are built to ISO standards and backed by responsive after‑sales support. For a price list, a custom quote, or to buy directly, reach out to our sales team. We will help you select the right attachment and ship it promptly to your job site.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
