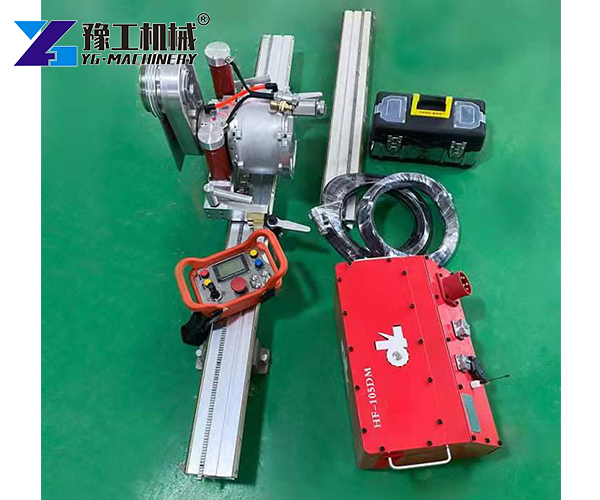

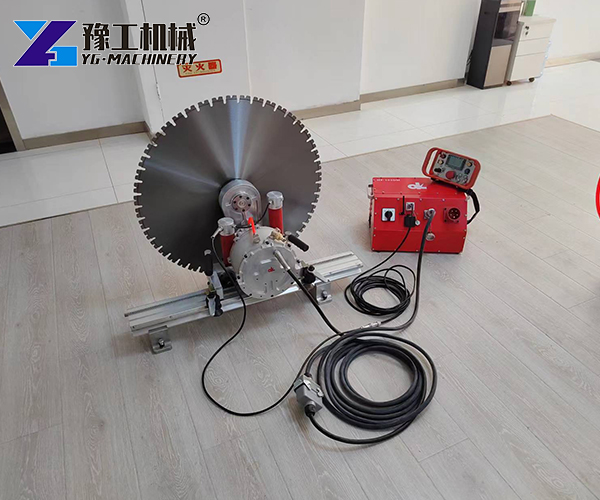

High Frequency Wall Saw is a powerful cutting tool for reinforced concrete walls. It combines strong cutting force with a lightweight design. This machine helps contractors finish wall cutting jobs faster and safer.
Wall saws come in different types. Hydraulic models are heavy. Standard electric models lack power. The High-Speed Wall Saw sits right in the middle. It gives you the power you need without the extra weight. This makes it a smart choice for modern construction sites.The machine uses a high-frequency electric motor. This motor delivers stable torque and smooth blade movement. Less vibration means cleaner cuts. It also means less strain on the operator. Whether you are cutting door openings or making structural adjustments, this tool keeps the job moving.
Lightweight and Portable:The wall saw weighs only 27kg including the feed motor. This makes it easy to carry between floors and job sites. Contractors can set it up fast without extra lifting equipment. The main motor adds just 18kg more. Total weight stays manageable for daily use.The control unit adds 19kg, and the wireless controller weighs only 2kg. This split design means you can carry each piece separately. Setup takes less time. You save money on labor and transport.
Deep Cutting Capacity:The Concrete Wall Saw Cutting Machine accepts blades up to φ1200mm. This gives a maximum cutting depth of 510mm. That is deep enough for most concrete walls in commercial and residential projects. Door openings, window cutouts, and structural adjustments all become straightforward jobs.
Water-Cooled Motor for Continuous Work:The 16kw motor uses water cooling. This keeps the motor temperature stable during long cutting sessions. The machine keeps working without overheating shutdowns. This is critical for large projects where downtime costs money.The motor has an IP 67 rating. This means it is fully protected against dust and water ingress. It can handle tough job site conditions without failing.
Wireless Remote Control:The system includes a wireless controller weighing just 2kg. The operator can stand at a safe distance while cutting. This reduces exposure to dust and flying debris. It also improves cutting accuracy because the operator has a clear view of the blade path.
Flexible Power Options:The control unit accepts 380-460V power. Single phase is also available. This flexibility matters because different job sites have different power setups. The machine works on both 50Hz and 60Hz systems. You can use it in most countries without worrying about power compatibility.
Flush Cutting Design:The blade fixing uses 6 countersunk head screws on a 110mm graduated circle. This design allows flush cuts against adjacent surfaces. You can cut right up to walls or floors without leaving messy edges. This saves time on finishing work.
A demolition contractor in Lyon, France needed to convert an old industrial building into apartments. The project required cutting large openings in thick, reinforced concrete walls. Noise and vibration limits were strict because the building was in a city center.
The contractor, Pierre, had a problem. His standard electric saw could not handle the thick walls. Hydraulic saws were too heavy to move around the building. He needed a wall saw cutting machine that was both powerful and portable.
Pierre found the high frequency concrete cutting saw from YG Machinery. The machine cut through the reinforced concrete walls with ease. Its lightweight design made it easy to move between floors. The wireless remote control let him operate safely from a distance.The project finished on time. The cuts were clean and precise. Pierre was satisfied with the performance and has recommended the machine to other contractors in the area.
A: The maximum cutting depth is 510mm with a φ1200mm blade. This is deep enough for most concrete walls in construction and renovation projects.
Q: What power supply does the machine need?
A: The control unit works with 380-460V power. Single phase is available. The machine supports both 50Hz and 60Hz frequencies. This makes it suitable for most job sites worldwide.
Q: Is the machine safe to operate?
A: Yes. The wireless remote control lets you operate from a safe distance. The IP 67 rated motor is fully sealed against dust and water. Water cooling keeps the motor from overheating.
Q: How much does the machine weigh?
A: The wall saw including the feed motor weighs 27kg. The main motor adds 18kg. The control unit weighs 19kg and the wireless controller weighs 2kg. Total system weight is manageable for one or two workers.
Q: What kind of blades does this machine use?
A: The machine accepts blades up to φ1200mm. The blade fixing uses 6 countersunk head screws on a 110mm graduated circle. This design ensures secure blade mounting and allows flush cuts.
YG Machinery: High Frequency Wall Saw Manufacturer
YG Machinery is a professional manufacturer of concrete cutting equipment. The company produces Concrete Wall Sawing Machine systems, Hydraulic Wall Cutter units, and Electric Wall Saw models for contractors worldwide. YG Machinery focuses on reliable performance, practical design, and competitive pricing.
All machines undergo testing before shipment. The company provides clear documentation and maintenance guides with every order. Technical support is available to help with setup and operation questions.For a quote on the hydraulic concrete wall cutter or other wall saw for sale options, contact YG Machinery directly. The team can help match the right machine to your project requirements. Buy with confidence knowing you get a tested, reliable product backed by professional support.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
