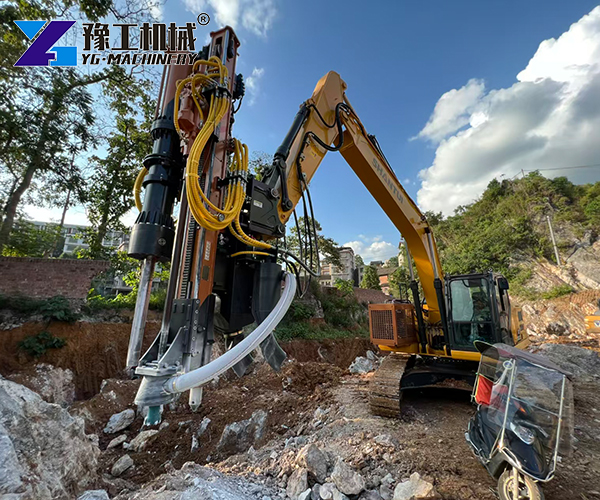

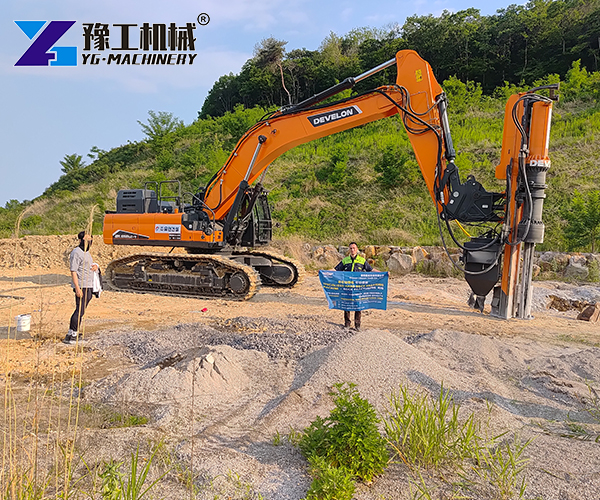

An Integrated Rock Drill and Splitter is a machine that does two jobs in one. It drills holes into hard rock. Then it splits the rock using hydraulic force. This all-in-one design saves time and reduces the need for multiple machines. The machine mounts onto an excavator. It uses the excavator’s hydraulic system for power. This setup makes rock breaking faster, safer, and more cost-effective. For projects that need non-blasting rock excavation, this equipment is a smart choice.
Specifications of the Integrated Rock Drill and Splitter
| Rock Drilling Machine | |||
| Power | Drilling hole diameter | Drilling depth | Drilling speed |
| 24kw | Middle 120mm | 1600mm | 1m/min |
| Splitting Machine | |||
| Splitting depth | Splitting force | Rotation angle | – |
| 1000MM | 8000T | 120° | – |
| Push Beam | |||
| Rock drilling maximum propulsion | Splitting maximum pullout force | ||
| 25KN | 70KN | ||
| Excavator requirements:>25T | |||
Advantages of the Integrated Rock Drill and Splitter
- Combined drilling and splitting saves time and labor:This machine performs both tasks in one working cycle. Operators do not have to change attachments or wait for a second unit. The integrated hydraulic rock drill and splitter reduces idle time and lowers manpower needs. It also cuts fuel costs because one engine does the work of two separate machines.
- Powerful splitting capability for tough materials:The unit delivers high splitting force to break granite, basalt, and heavily reinforced concrete. Its rotation angle allows flexible positioning in narrow or uneven work areas. The splitting depth is sufficient for most medium‑to‑large rock breaking tasks.
- Safe and environmentally friendly:Unlike blasting, this Rock Drill and Splitter equipment produces no flyrock, no shock waves, and no toxic gases. Vibration and noise levels are low. This makes it suitable for city construction, tunnel projects, and other sensitive sites where blasting is prohibited or restricted.
- Simple operation and low maintenance:The attachment connects quickly to the excavator arm. Operators can control it from the cab or via remote control. The hydraulic circuit is straightforward, with easily accessible components. Regular service checks are simple, and replacement parts are widely available.
- Versatile and cost‑effective:With one machine for both drilling and splitting, you reduce capital expenditure and storage space. It adapts to various rock hardness levels and job site conditions, offering a flexible solution for contractors and quarry owners alike.
Applications of the Integrated Rock Drill and Splitter
- Tunneling and underground excavation:The Drilling and Splitting Machine works safely in confined spaces. It does not cause overbreak or damage to adjacent rock layers. The static splitting action protects existing supports and linings.
- Quarrying for dimension stone:In marble, granite, and limestone quarries, this Excavator Drill And Splitting Machine extracts blocks with clean, controlled cuts. It minimizes waste and yields more usable stone.
- Concrete demolition and renovation:For bridge decks, building foundations, and industrial floors, the hydraulic rock splitter drilling machine breaks reinforced concrete efficiently. It can operate near rebar without damaging it, making removal easier.
- Urban infrastructure projects:Road widening, pipeline laying, and subway construction often require rock removal in populated areas. This equipment meets strict environmental standards and keeps surrounding buildings safe.
- Water conservancy and slope stabilization:Dam construction, riverbed clearing, and slope treatment benefit from precise rock splitting. The low disturbance ensures the stability of remaining rock masses.
FAQ
Q: What are the main benefits of using an Excavator Drill And Splitting Machine instead of blasting?
A: It eliminates blast‑related risks, reduces noise and vibration, and works in areas with strict safety regulations. It also gives you better control over rock fragmentation.
Q: Can this machine handle hard rock like basalt or granite?
A: Yes. The hydraulic system provides enough splitting force for most hard rock types. The drilling unit is designed to penetrate tough surfaces efficiently.
Q: Is Hydraulic Rock Drilling Splitting Machine easy to install and remove from the excavator?
A: Yes. The attachment uses a quick‑coupler system. Changeover takes only a few minutes, and no special tools are required.
Q: What maintenance does the equipment need?
A: Regular checks of hydraulic hoses, filters, and wear parts are recommended. A daily lubrication routine keeps the moving parts in good condition.
Q: How do I choose the right model for my project?
A: Factors include rock hardness, required depth, and excavator size. Contact us with your job details, and we can recommend the best configuration.
Q: Can I get a price for this equipment?
A: Yes. Prices vary by model, options, and shipping destination. Request a quote directly from YG Machinery for an accurate price.
