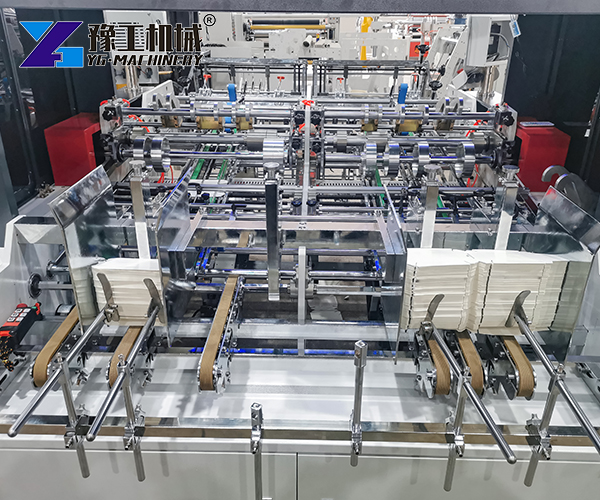

What Is a Hamburger Box Making Machine?
A hamburger box making machine is a piece of equipment that turns flat paper sheets into finished hamburger boxes. It feeds the paper in, folds it, applies glue, and presses it into shape—all automatically. The whole process runs without much human help.
This machine is built for food packaging businesses. Fast food chains, takeaway restaurants, and packaging suppliers all use it. With a burger box forming machine, you can make large numbers of boxes in a short time. The boxes come out the same every time. No crooked folds. No loose glue. Just consistent, food-safe packaging.
A burger box machine works with different paper types. It handles coated paper, kraft paper, and cardboard. You can also change the mold to make different box sizes. This makes it a flexible tool for any packaging business.
Hamburger Box Making Machine Parameters
| Model | YG-800 | YG-C800 | YG-S800 | |
| Paper Cup Size | 3-16OZ | 3-16OZ | 3-16OZ | |
| Raw Material | One-side PE | One-side PE | One-side or two-side PE-coated paper (Singe PE or Double PE coated paper) | |
| Speed | 65-75 pcs/min | 70-80 pcs/min | 75-85 pcs/min | |
| Suitable paper weight | 150-180g;±20g | 150-300g;±20g | 160-300g/;±20g | |
| Voltage supply | 380V, 50HZ | 380V, 50HZ | 380V(220V) 50HZ | |
| cup size | Bottom35-70mm, Top45-90mm High32-135mm | Bottom35-70mm,Top45-90mm, High32-135mm | Bottom35-70mm, Top45-90mm, High32-135mm | |
| General power | 4.5 kW | 5 kW | 6 kW | |
| Working Air Source | NO | NO | 0.4-0.6Mpa; 0.4m3/min | |
| Net weight | 1680kg | 1680kg | 2000kg | |
| Measurement (mm) | L:2115mm;W:1000mm;H:1700mm | L:2115mm;W:1000mm;H:1700mm | Main engine | L:2100mm;W:1200mm;H:1800mm |
| Cup holder | L:900mm;W:600mm;H:1500mm | |||
| Cup Side Sealing | Copper bar heating | Evergreen Ultrasonic | Evergreen Ultrasonic | |
| Bottom Knurling | Heating | Heating | Hot Air System | |
| We can customize the machine and mold according to the customer’s requirements. Also, we have a high-speed machine, 100-120pcs/min. | ||||
Benefits of a Burger Box Forming Machine
- Saves Labor Costs:The machine does the work of several workers. It feeds, folds, glues, and ejects boxes by itself. One person can run the whole operation. This cuts your payroll and reduces mistakes.
- Delivers Consistent Quality:Every box comes out the same. The machine uses a PLC control system to keep everything precise. Folds are straight. Glue is even. The boxes hold their shape. Customers notice the difference.
- Runs at High Speed:Speed matters in packaging. These machines produce 65 to 85 boxes per minute. That adds up to thousands per shift. You meet big orders without working overtime.
- Handles Multiple Paper Types:The machine works with single-side PE paper and double-side PE paper. It also handles different paper weights. You are not locked into one material.
- Easy to Change Molds:Need a different box size? Just change the mold. The switch takes little time. You can produce hamburger boxes, lunch boxes, and other food containers on the same machine.
Where to Use a Hamburger Box Machine
- Fast Food Restaurants and Chains:Burger joints need boxes by the thousands. A paper food box making machine lets them make their own packaging. No more waiting for supplier deliveries. No more paying high prices for branded boxes.
- Takeaway and Delivery Services:Delivery orders keep growing. Each order needs a sturdy box. A paper lunch box making machine produces boxes that survive the trip. Grease-resistant paper keeps the food looking good.
- Food Packaging Suppliers:Suppliers serve many customers. Each customer wants different boxes. A Burger Box Making Machine handles multiple sizes and styles. One machine serves many accounts.
- Catering Companies:Caterers pack meals for events. They need boxes in bulk. Making their own boxes cuts costs. It also lets them print their brand on every box.
- Bakeries and Delis:Bakeries sell sandwiches and pastries. Delis serve takeout meals. Both need reliable packaging. A burger box machine gives them control over their supply.
FAQ about Hamburger Box Making Machine
What paper can this machine use?
It works with single-side PE coated paper and double-side PE coated paper. Paper weight ranges from 150g to 300g depending on the model.
How fast does it produce boxes?
Production speed ranges from 65 to 85 boxes per minute. A high-speed version is also available.
Do I need an air compressor?
The YG-800 and YG-C800 models do not need an air source. The YG-S800 requires 0.4-0.6Mpa air pressure.
Can I make different box sizes?
Yes. You can change the mold to make different sizes. Custom molds are available upon request.
What sealing methods are available?
The YG-800 uses copper bar heating. The YG-C800 and YG-S800 use Evergreen Ultrasonic sealing. Each method gives strong, clean seals.
Is training provided?
Yes. Each machine comes with operation manuals. Technical support is available online and on-site.
YG Machinery – Your Packaging Equipment Partner
YG Machinery is a Chinese manufacturer with over 20 years of experience in packaging machinery. Based in Zhengzhou, the company holds ISO9001 and CE certifications, serving customers in more than 50 countries. YG Machinery offers factory-direct prices on all equipment, with full after-sales support, spare parts availability, and technical guidance.
Beyond hamburger box machines, YG Machinery also manufactures Paper Making Machine units for paper production, Paper Cup Forming Machine for cup manufacturing, and Egg Tray Making Machine for egg packaging. This means you can source multiple machines from one trusted partner.
To get a quote for a hamburger box making machine, send your box size and production needs. All models are for sale with competitive factory prices and fast global shipping. Contact YG Machinery today to buy the right machine for your business.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
