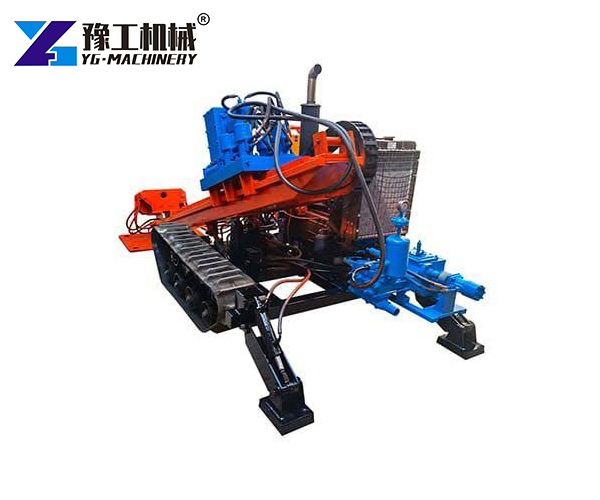

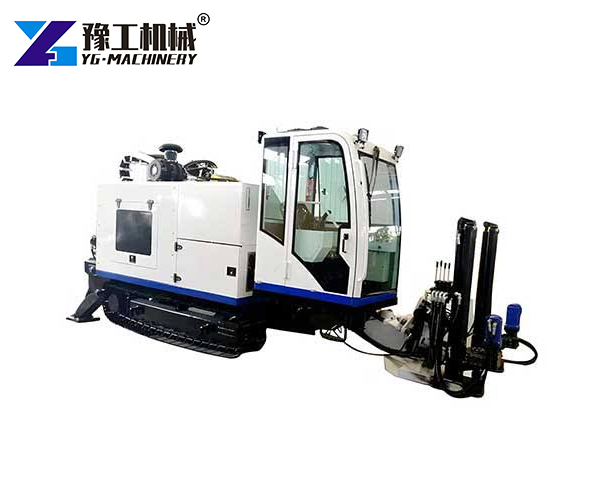

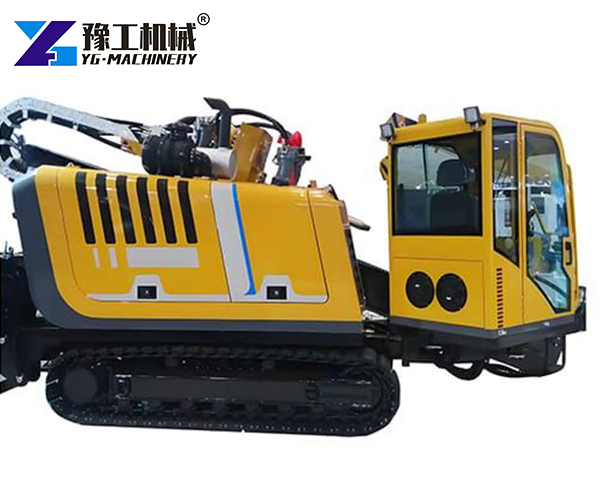

A horizontal directional drilling machine is a piece of equipment used to install pipes, cables, and conduits underground without digging open trenches. This method is called trenchless technology.The machine drills a pilot hole along a planned path. Then it enlarges the hole and pulls the pipe back through. This avoids damage to roads, landscapes, and existing structures.YG Machinery offers five models of this horizontal directional drilling machine: YG-160A, YG-180, YG-280, YG-320, and YG-320A. Each model suits different project sizes and ground conditions. If you need a horizontal directional drilling rig for sale, these models give you a range of options.These machines run on diesel engines. They use a drilling fluid (mud) to cool the drill bit and carry soil out of the hole.
Key Specifications of Horizontal Directional Drilling Equipment
| Parameter | YG-160A | YG-180 | YG-280 | YG-320 | YG-320A |
| Engine rated power | 100KW | 97KW | 160KW | 140KW/160KW | 160KW |
| Push and pull system | Cylinder | Motor | Motor | Cylinder | Motor |
| Max reaming hole diameter | Φ600mm | Φ600mm | Φ750mm | Φ800mm | Φ800mm |
| Drill rod length (single) | 3m | 3m | 3m | 3m | 3m |
| Drill pipe diameter | Φ60mm | Φ60mm | Φ73mm | Φ73mm | Φ73mm |
| Drill angle | 10-23° | 10-22° | 10-23° | 10-20° | 10-20° |
| Max mud flow | 160L/min | 250L/min | 320L/min | 320L/min | 320L/min |
| Max mud pressure | 100bar | 80bar | 80bar | 80bar | 80bar |
| Overall weight | 6700kg | 8500kg | 12500kg | 11500kg | 11200kg |
| Dimensions (L×W×H) | 5.7×1.82×2.4m | 6.4×2.27×2.34m | 7.1×2.26×2.45m | 7.1×2.25×2.45m | 7.1×2.25×2.45m |
Horizontal Drilling Rig Machine vs. Conventional Excavation
Traditional pipe installation uses open-cut trenching. Workers dig a trench, lay the pipe, and fill it back in. This method works but has many drawbacks.The HDD Drill Rig offers a better way. Here is a direct comparison:
| Feature | Horizontal Directional Drilling Rig | Conventional Trenching |
| Surface disruption | Minimal – only entry and exit pits | Large – full trench along pipe path |
| Traffic impact | Low – roads stay open | High – roads closed or narrowed |
| Environmental damage | Low – less soil disturbance | High – topsoil removed, vegetation lost |
| Restoration cost | Low – minimal backfill and repaving | High – full restoration needed |
| Project speed | Fast – continuous drilling | Slow – dig, lay, backfill in stages |
| Obstacle crossing | Easy – goes under roads, rivers, buildings | Difficult – requires detours or disruption |
| Labor requirement | Small crew | Large crew |
| Accuracy | High – guided drilling along planned path | Lower – trench follows surface layout |
The directional boring equipment from YG saves time and money. It also reduces the social costs of traffic delays and community disruption. For urban projects, this directional boring machine is often the practical choice.
Applications of Directional Boring Equipment
The horizontal directional drilling machine serves many industries. Here are the main uses:
- Telecommunications:Install fiber optic cables and telephone lines underground. The machine drills under streets without cutting service or blocking traffic.
- Electric Power:Place power conduits for new developments or upgrades. Avoid overhead lines and pole replacement costs. The HDD drill rig puts cables safely below ground.
- Water Supply:Lay new water mains or replace old ones. The trenchless method keeps water service running during installation.
- Natural Gas:Install gas distribution pipelines in urban and suburban areas. Reduce safety risks compared to open trenches.
- Sewer and Drainage:Put in new sewer lines or storm drains. The machine works in tight spaces where excavators cannot fit.
- Oil and Petroleum:Cross rivers, highways, and sensitive environmental areas with product pipelines. The horizontal directional drilling equipment reaches places trucks cannot go.
- River Crossings:Drill under rivers and waterways without disturbing the water flow or marine life. This is a common use for larger models like the YG-320.
Each project type benefits from the precision and low impact of this directional boring machine.
FAQ
Q1. What is a horizontal directional drilling machine?
It is a machine that drills underground horizontally to install pipes and cables without digging trenches. It uses a guided drill head and drilling fluid to create a borehole.
Q2. How deep can these machines drill?
Drilling depth depends on the model and ground conditions. The YG-160A can drill up to 400m deep. Other models have similar or greater capacity.
Q3. What pipe sizes can the YG series install?
The maximum reaming diameter ranges from Φ600mm (YG-160A and YG-180) to Φ800mm (YG-320 and YG-320A). This means you can install pipes up to these diameters.
Q4. How do I choose the right model?
Consider your project size, pipe diameter, drilling distance, and ground conditions. The YG-160A suits smaller jobs. The YG-280 and YG-320 handle larger, more demanding projects.
Q5. What is the difference between cylinder and motor push/pull systems?
Cylinder systems use hydraulic cylinders for thrust and pullback. Motor systems use hydraulic motors. Both work well. The choice affects speed and control characteristics.
