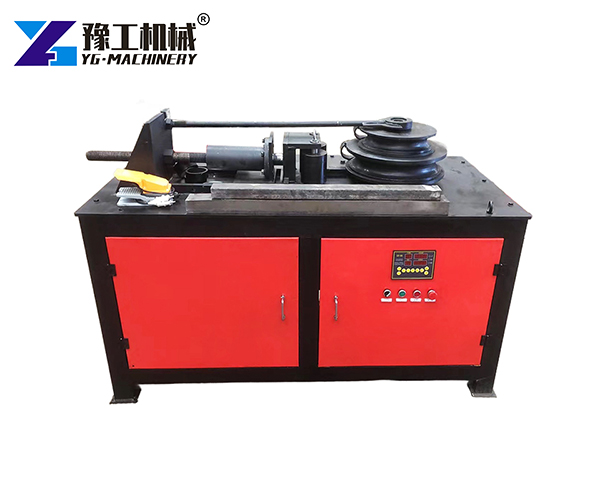

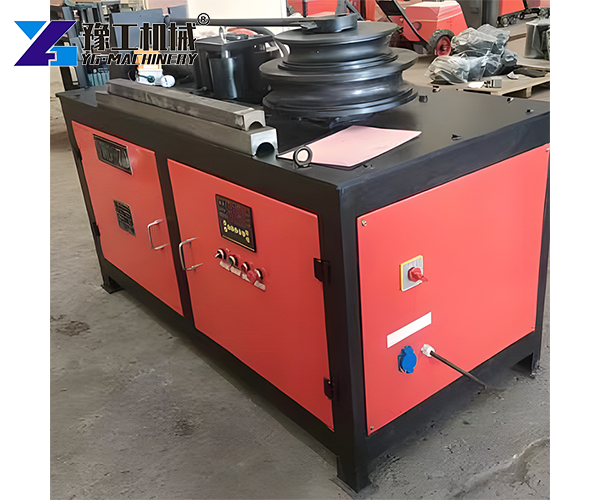

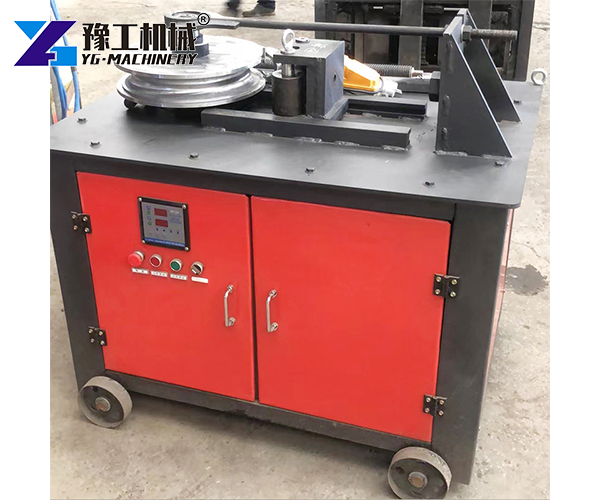

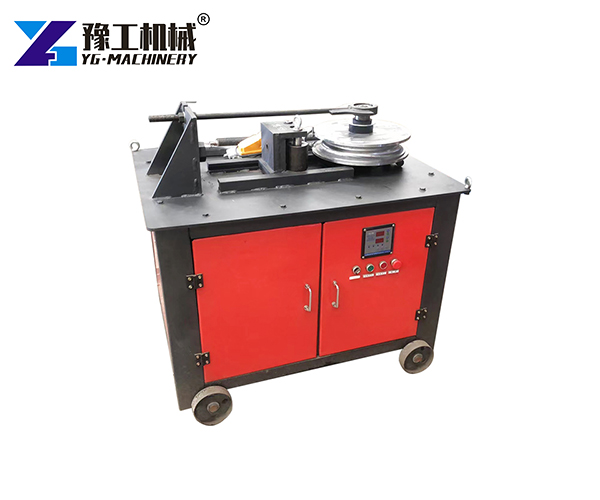

The Automatic Pipe Bending Machine is built for high-speed, high-precision tube forming. It replaces manual bending with automated CNC control. This machine handles round, square, and rectangular tubes with consistent accuracy. It reduces labor costs and improves output quality. For industrial workshops, this equipment is a reliable solution for repetitive bending tasks. The CNC Pipe Bender Equipment uses a programmable system to control angle and speed. Operators set parameters once, and the machine repeats the task without deviation. Whether processing steel, copper, or aluminum, this auto pipe bending machine delivers stable performance.
Automatic Pipe Bending Machine Parameters
| Model | YG-26 | YG-38 | YG-51 | YG-76 | YG-N76 |
| Tube diameterMaximum wall thickness | Φ8-26mm2mm | Φ10-38mm3mm | Φ10-51mm3mm | Φ10-76mm3mm | Φ10-76mm4-5mm |
| Maximum square tube diameterMaximum wall thickness | 25mm2mm | 30mm3mm | 40mm3mm | 50mm3mm | 60mm3mm |
| Maximum rectangular tube diameter(Vertical Bend) Maximum wall thickness | 10*20mm2mm | 20*40mm3mm | 30*50mm3mm | 40*80mm3mm | 50*100mm3mm |
| Maximum rectangular tube diameter(Flat bend)Maximum wall thickness | 10*20mm2mm | 20*30mm3mm | 20*40mm3mm | 30*50mm3mm | 40*80mm3mm |
Advantages of the Automatic Pipe Bending Machine
- High Bending Accuracy:The CNC system controls the bending angle precisely. Each bend matches the programmed angle within a tight tolerance. This reduces scrap and rework. The cnc pipe bending machine delivers consistent results across large production runs.
- Fast Production Speed:The automatic cycle reduces bending time significantly. For a φ50mm steel pipe, the machine completes one bend in about 12 seconds. This is up to three times faster than traditional hydraulic benders. The automatic tube bending machine keeps production moving without delays.
- Low Labor Requirement:One operator can manage the machine after a short training session. The automatic feeding, bending, and demolding functions run with minimal human input. This reduces the need for skilled labor and cuts payroll costs.
- Flexible Material Compatibility:The machine works with carbon steel, stainless steel, copper, and aluminum pipes. Different models cover pipe diameters from 8mm up to 76mm. Changing the die and adjusting parameters allows quick switching between jobs.
- Durable Construction:High-strength steel is used for the machine frame. This ensures stable operation under heavy use. The hydraulic system provides steady power for repeated bending cycles.
Applications of the Automatic Pipe Bending Machine
- Automotive Manufacturing:The Automatic Pipe Bender forms chassis suspension pipes and engine exhaust pipes. It handles small-radius bends (1D) accurately. The CNC Pipe Bender Equipment ensures each pipe fits the vehicle design.
- Construction and Decoration:Curved guardrails and spiral staircase handrails are produced efficiently. The machine supports three-dimensional bending for complex architectural shapes. Square and rectangular tubes up to 60mm can be processed.
- HVAC and Kitchen Appliances:Gas stove hoses and floor heating coils require fast, repeatable bending. The auto pipe bending machine handles high-volume production of household pipes. The 5-minute fast mold change feature reduces downtime between jobs.
- Furniture Manufacturing:Metal furniture frames and components are bent to precise angles. The machine processes both round and square tubes. Consistent bending quality improves product appearance and structural integrity.
FAQ
Q:What pipe materials can this machine bend?
The machine bends carbon steel, stainless steel, copper, and aluminum pipes. Different materials require appropriate die settings.
Q:What is the bending angle range?
The bending angle can be set from 0° to 180°. Nine preset angles are available for quick selection.
Q:How accurate is the bending?
The CNC Platform Pipe Bending Machine controls the angle within ±0.1°. This ensures each bend matches the specification closely.
Q:How long does it take to change the mold?
Mold change takes about five minutes. This allows quick switching between different pipe diameters and shapes.
Q:What power supply is required?
The machine operates on 380V, 50Hz, three-phase power.
Q:Do you provide after-sales support?
Yes. YG Machinery provides a one-year warranty. Remote technical guidance and spare parts supply are available.
About YG Machinery
YG Machinery has focused on rebar and pipe processing equipment for over 15 years. Products are exported to more than 60 countries worldwide. The company also manufactures CNC Stirrup Bending Machine, Steel Bar Bending Machine, and Thread Rolling Machines,etc.A one-year warranty is provided with each machine. Technical support and spare parts are available throughout the machine’s service life. Contact YG Machinery today for a price on the Automatic Pipe Bending Machine. Request a quote to see how this equipment can improve your production line. Machines are available for sale with factory-direct pricing. Buy directly from the manufacturer for the best value and support.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
