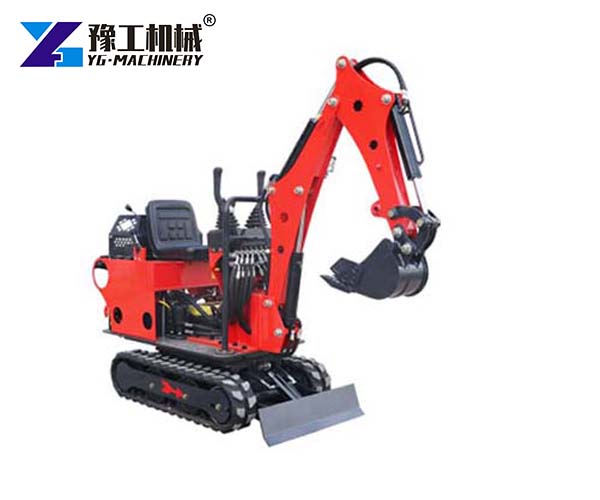

A mini crawler excavator is a small digging machine with tracks. It fits into tight spaces and works on soft or uneven ground. This machine is a compact unit with a reliable engine. It digs, lifts, and moves soil with ease. The small size makes it useful for gardens, small construction sites, and farm work. The controls are simple. One person can operate it after a short training period. It is a practical choice for small jobs that need real digging power.
Specifications of Mini Crawler Excavator
| Model | YG10-8 |
| Operating Weight | 1000kg |
| Digging bucket capacity | 0.025cbm/100kg |
| Bucket width | 340mm |
| Rated power | 10.2 / 7kw/2200r/min |
| Displacement | 0.499 L |
| Bore stroke | 70×55 |
| Displacement | 6.8ml/r |
| Travel speed | 1.5km/h |
| MAIN DIMENSIONS | |
| Overall dimension( LxWxH) | 1877x896x1990 mm |
| Wheelbase | 770 mm |
| The total length of the track | 960mm |
| Platform ground clearance | 376 mm |
| Platform back-turning radius | 664 mm |
| Chassis width | 896 mm |
| Track width | 180 mm |
| Chassis ground clearance | 132 mm |
| Track height | 320 mm |
| OPERATING RANGE | |
| Max. Digging depth | 1650 mm |
| Max. Vertical digging depth | 1376 mm |
| Max. Digging height | 2365 mm |
| Max. Dumping height | 1655 mm |
| Max. Digging radius on the ground | 2560 mm |
| Min. Rotation radius | 1200 mm |
| Max. Upgrade the height of the bulldozer blade | 165 mm |
| Max. Digging depth of bulldozer blade | 170 mm |
Advantages of a Mini Excavator
- Compact size — The machine is narrow and short. It passes through gates and works in backyards. This makes it perfect for small projects.
- Strong digging force — The bucket digs deep enough for small jobs. It handles soil, sand, and small rocks. The hydraulic system gives smooth power.
- Easy to move — The tracks move at a steady speed. A small trailer can carry it. No heavy truck is needed.
- Simple controls — Levers and pedals are easy to learn. New operators can work safely after a few hours.
- Low fuel use — The engine sips fuel. It keeps running costs low for daily jobs.
- Stable on slopes — The wide track base and low center of gravity prevent tipping. It works on hills and uneven ground.
Applications of Mini Crawler Excavator
- Home landscaping — Digs holes for trees, pools, and fences. The small excavator fits through narrow gates.

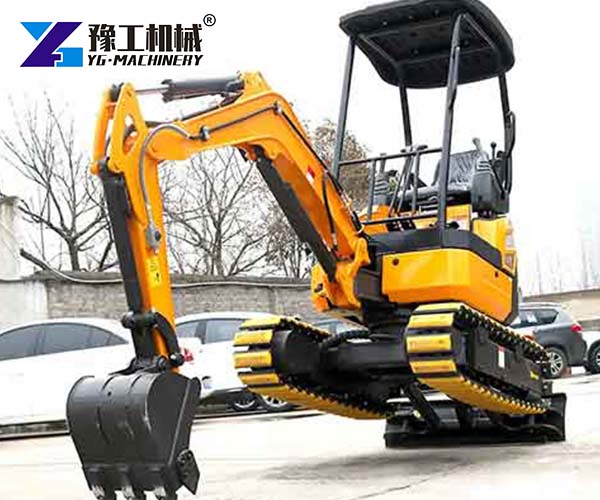

- Construction work — Helps with trenching, foundation digging, and material moving. The mini construction excavator works well on tight sites.

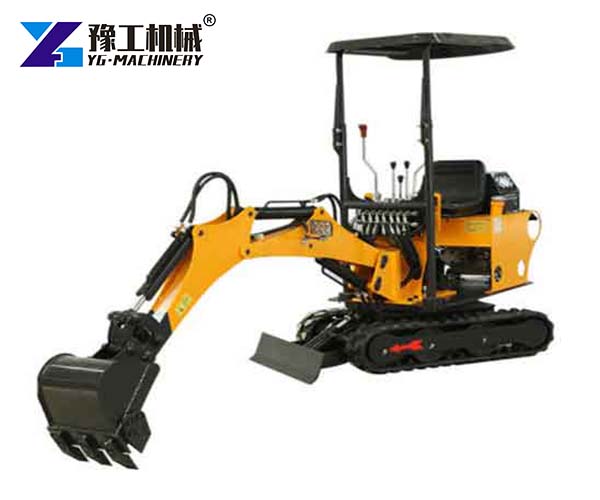

- Farm and ranch — Clears ditches, moves feed, and digs post holes. The mini digger saves manual labor.
- Utility repair — Digs around pipes and cables without damaging them. The precise controls help avoid accidents.
- Demolition cleanup — Lifts broken concrete and wood. It loads debris into trucks quickly.
Customer Cases of Mini Crawler Excavator
- Case1:A landscaper in Texas needed to dig holes for a new garden project. The site was behind a house with a narrow gate. A full-size excavator could not fit. He bought a mini excavator from YG Machinery. The machine passed through the gate with no trouble. He finished the job in two days. “This little machine digs like a big one,” he said. “The price was good, and the quote came fast. I will buy another one for my other crew.”
- Case2:A farmer in Australia had blocked drainage ditches. Water was flooding his fields. He needed a small machine that could work in wet ground. He ordered a mini digger from YG Machinery. The tracks handled the mud without sinking. He cleared all the ditches in one week. “It is easy to use and does not get stuck,” he said. “I use it every month now. Best money I spent on farm equipment.”
FAQ
1. What is the price of this excavator?
Price depends on accessories and shipping. Contact YG Machinery for a free quote.
2. Can I buy it for home use?
Yes. This excavator is small and easy to use. It is a good choice for homeowners.
3. What attachments are available?
Buckets, hammers, and augers are available. Tell us your job and we will suggest the right tool.
4. Do you ship to my country?
YG Machinery ships to many countries. Contact us for shipping cost and time.

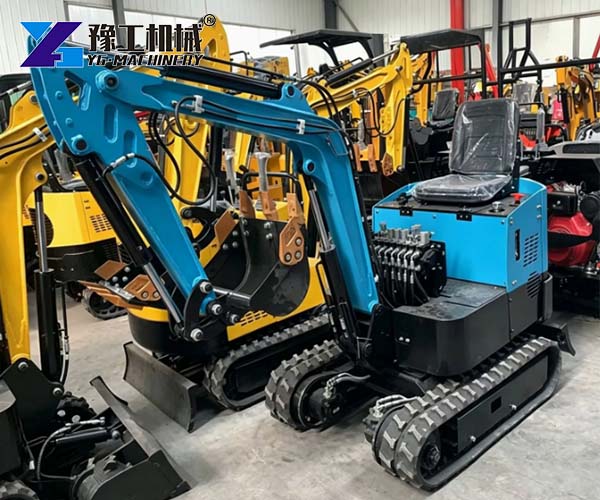

YG Machinery: Mini Excavator Manufacturer
YG Machinery is a construction equipment maker in Zhengzhou, China. It serves buyers in over 30 countries. The company offers the mini excavator for sale. It also builds the Industrial Excavator, Concrete Crusher Bucket, and Hydraulic Pile Breaker,etc. For a free quote or price, contact YG Machinery. The team will help you pick the right machine for your job.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
