High-rise projects struggle to move concrete to upper floors, long-distance pours lose consistency, and frequent equipment stops delay timelines. A static concrete pump addresses these issues by delivering concrete steadily over long distances or heights, supporting continuous pouring for large projects, and keeping the workflow stable.


Parameters of Static Concrete Pump
| Model | YG-30 | YG-40 | YG-50 | YG-60 |
| Motor Power | 37kw | 45kw | 55kw | 90kw |
| Work Efficiency | 13-15m³/h | 20-25mm³/h | 30-35mm³/h | 55-60mm³/h |
| Work Pressure | 20mpa | 23mpa | 23mpa | 23mpa |
| Aggregate Size | 0-3cm | 0-4cm | 0-4cm | 0-5cm |
| Vertical Conveying Distance | 20-60m | 30-130m | 30-150m | 30-150m |
| Horizontal Conveying Distance | 50-150m | 50-350m | 50-500m | 50-500m |
| Delivery Pipe Diameter | 80-125mm | 80-125mm | 80-125mm | 125mm |
| Total Weight | 1500-2000kg | 2200kg | 2200kg | 3500kg |

Components of Concrete Trailer Pump
A concrete trailer pump integrates smart control, reliable hydraulics, and durable pumping parts for stable performance.
Intelligent Control System
- High-low pressure switch: Adjusts pressure for different heights or distances
- Stepless displacement regulation: Changes the pumping speed smoothly to match pour rates
- Automatic centralized lubrication: Reduces manual upkeep and part wear

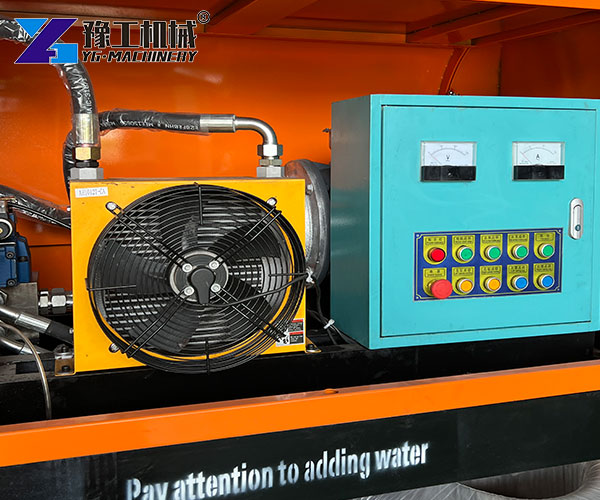

Hydraulic & Electrical System
- Dual pump group: Adopts an open dual-pump design for a stable power supply
- Bypass cooling filtration: Keeps hydraulic oil clean and extends service life
- PLC control: Uses Siemens electrical components for precise operation
Pumping System & Core Parts
- Large-angle hopper: Prevents concrete buildup and ensures smooth feeding
- S-valve design: Reduces flow resistance and improves pumping efficiency
- Imported core parts: Kawasaki oil pump, Parker seals, Siemens electrical components for quality

Application Scope of Static Concrete Pump
The static concrete pump serves diverse construction fields with large-volume or long-distance needs.
- High-Rise Building Construction
It pumps concrete vertically up to 260m for core walls, elevator shafts, and floor slabs, supporting continuous pours for tall structures.
- Infrastructure & Tunnel Projects
For bridges, dams, and highway tunnels, it delivers concrete horizontally over 500m, handling tunnel lining and bridge foundation pours.
- Industrial & Commercial Sites
Factories, warehouses, and large malls rely on it for massive foundation and slab pours, ensuring concrete consistency across wide areas.
- Water Conservancy & Municipal Works
Dams, sewage plants, and port projects use it for long-term, high-volume concrete delivery in complex environments.

Advantages of Static Concrete Pump
Compared with other delivery methods, the static concrete pump offers clear benefits:
| Aspect | Static Concrete Pump | Traditional Crane & Bucket | Mobile Concrete Pump |
| Delivery distance | Up to 1000m horizontal, 260m vertical | Limited to 50m height | Up to 200m height |
| Continuous working | Supports 24h non-stop operation | Needs frequent reloading | Limited by mobility |
| Labor demand | 1–2 operators | 4–6 workers | 2–3 operators |
| Concrete quality | Consistent flow, no segregation | Easy segregation | Good but less stable |
| Site adaptability | Fits narrow or complex layouts | Requires wide space | Needs access for movement |
Cost and Practical Value of Static Concrete Pump
When planning a project, cost is not just about the machine price. A static concrete pump influences daily expenses, work speed, and long-term returns.
Lower Cost Per Cubic Meter
- Less material waste during transfer
- Reduced fuel or electricity consumption
- More controlled concrete usage
Stable Output Means Fewer Delays
- Fewer stops during pouring
- Better coordination with other teams
- Reduced risk of rework
Reduced Dependence on Labor
- Smaller crew needed on site
- Easier operation with basic training
- Less pressure on skilled labor availability
Long-Term Equipment Value
- Durable structure supports long working hours
- Key components ensure stable performance
- Lower maintenance frequency over time
Flexible Use Across Projects
- Suitable for small buildings and large sites
- Works in both urban and remote areas
- Easy to integrate into existing workflows

Customer Feedback
Case 1: Contractor in the Philippines
A mid-rise residential project needed stable and continuous concrete pouring for slabs and columns. The contractor reached out after facing delays caused by manual transport. Based on the site conditions and required output, we recommended a suitable static concrete pump. After confirmation, the machine was produced and delivered within around 30 days, followed by a quick on-site setup.
On-Site Feedback:
·Concrete flow became stable and continuous
·Pouring speed improved significantly
·Daily coordination between teams became easier
Case 2: Builder in Mexico
A small construction company in Mexico needed flexible equipment for foundation work across multiple sites. After comparing several options, they contacted us for a static concrete pump that matched their working scale. We confirmed the configuration, completed production, and arranged shipment within the agreed schedule.
On-Site Feedback:
·Simple operation with short training time
·Stable performance during long working hours
·Reduced reliance on manual labor


FAQ About Static Concrete Pump
Q: What type of concrete can be pumped?
A: The static concrete pump can handle most standard construction concrete mixes.
Q: Is it suitable for long-distance pumping?
A: Yes, it is designed for horizontal and vertical delivery.
Q: How is it powered?
A: Both diesel and electric versions are available.
Q: Is the operation complicated?
A: No, the control system of the concrete trailer pump is designed for easy use.
About YG Company
YG is a construction machinery manufacturer with over 20 years of experience in concrete and steel processing equipment. Our machines are widely used in many countries, supported by stable performance and practical design for real construction work.
Manufacturing & Quality:
- CE and ISO certified products
- Stable performance for long working hours
- Tested before delivery to ensure site use
Support & Service:
We support customers from inquiry to after-sales service.
- Technical advice before purchase
- Simple installation guidance
- Spare parts and remote support
Our Equipment Range:
- Concrete mixer pump
- Pumping and mixing integrated machine
