If you are struggling with tight deadlines or difficult-to-reach pouring sites, a mobile concrete pump is the strategic investment you need. These machines eliminate the “wheelbarrow bottleneck,” allowing you to move high volumes of concrete over long distances and heights with minimal effort. Whether you are pouring a backyard pool or a massive bridge deck, the right pumping equipment ensures your project stays on schedule and your labor costs stay low.
What Is a Mobile Concrete Pump
A mobile concrete pump is a flexible construction device that can move freely on the construction site and transport concrete through pipelines. Unlike fixed concrete pumps, it doesn’t need complex installation and can be transferred quickly between different work areas. It combines mobility and high efficiency, making it an essential tool for modern construction. Whether it’s a small rural house project or a large-scale municipal construction, the mobile concrete pump can adapt to different needs and provide stable concrete delivery services.
Parameters of YG Mobile Concrete Pump
| Spec/Model | YG-10 | YG-20 |
| Work efficiency | 6m³/h | 12m³/h |
| Motor power | 15kw | 22KW |
| Working pressure | 15MPa/10MPa | 18MPa/12MPa |
| Aggregate size | 0.5-1.5cm | 0.5-2cm |
| Vertical/Horizontal conveying distance | 20m/50m | 40m/80m |
| Diameter of conveying pipe | 80mm | 80mm |
| Weight | 600KG | 1600kg |
| Dimensions | 1800*700*1100mm | 3400x1200x1600mm |
| Standard Configuration | 10m steel pipe, 10m hose | 40m steel pipe, 10m hose |
| Model | Yg-110 | Yg-180 |
| Transport Volume | 86/51 | 95/61 |
| Max pressure | 16 | 20 |
| Hydraulic system | open | open |
| Power(KW) | electric | electric |
| Rotating speed | 1480 | 1480 |
| Power(KW) | 110 | 90*2 |
| Cylinder Bore | 200200 | 200 |
| High/Low Voltage | No | No |
| Hydraulic Oil Tank Volume | 450 | 800 |
| Hopper Volume | 0.8 | 0.8 |
| Loading height | 1380 | 1430 |
| Dimensions(m) | 6*2.16*2.3 | 7*2.3*2.6 |
| Total weight(KG) | 6150 | 7000 |
How a Mobile Pump Works

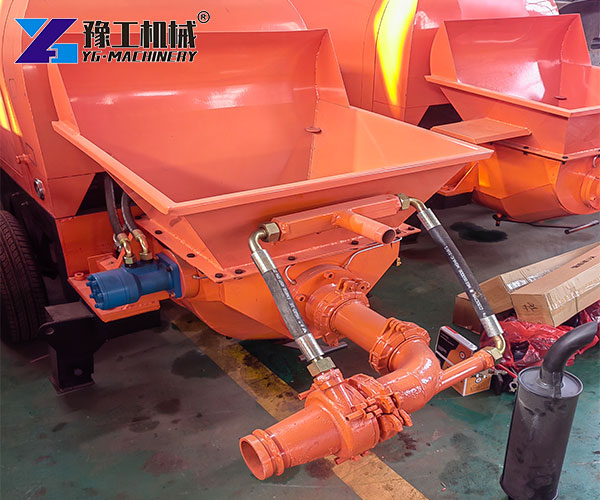

Concrete is fed into the hopper. Two hydraulic cylinders alternately pull concrete into the pumping cylinder and push it out through the S‑valve into the pipeline. The boom, controlled by a remote, guides the hose exactly where you point. A mobile pump works like a giant syringe – steady, powerful, and precise.
Optional Types of Mobile Concrete Pump
- Towable or Truck-Mounted Concrete Pump: The truck-mounted concrete pump is installed on a truck chassis, which can be driven directly to the site, making it suitable for large projects that need frequent transfer. The towable type is small and flexible, easy to tow by a tractor, and perfect for narrow sites.
- Electric or Diesel Power: The electric mobile concrete pump is cost-effective and suitable for sites with a stable power supply. The diesel type is not limited by power, suitable for remote areas or construction sites without electricity, and has strong mobility.
Advantages of YG Mobile Concrete Pump
- Hydraulic System
Adopting a dual pump configuration, the main pump oil circuit and the swing oil circuit are independent, which is more reliable and easier to maintain. The bypass cooling function can reduce the temperature of the system, avoiding equipment failure caused by overheating.
- Electrical System
Equipped with PLC control, which makes the operation more accurate and stable, reducing manual errors and ensuring smooth and efficient operation of the equipment.
- Pumping System
The large-inclination hopper is not easy to accumulate materials, ensuring smooth feeding. The high pumping rate can improve construction efficiency, saving your time and labor costs.
- Easy Operation
The control panel is simple and clear, with clear operation prompts; no professional training is needed, and one person can complete the operation.
High-Quality Materials Ensure Long Service Life
- Wear Parts: Adopting Japanese Kawasaki and American Parker brands, which are well-known for their reliability and long service life, ensuring that the equipment can work stably for a long time.
- Wear-Resistant Plate: Made of high-wear-resistant hard alloy, its service life is 3 times that of traditional materials, reducing the frequency of replacement and saving your time and money.
- Other Parts: All key parts are strictly inspected to ensure that they meet the standard, avoiding equipment failure caused by inferior parts.
Suitable Scenarios for Mobile Concrete Pump
Small Mobile Concrete Pump – Perfect for Tight Sites:
- Rural Self-Built Housing
Ideal for rural self-built houses, whether it is a single-story or two-story house, the small-sized mobile concrete pump can easily move in narrow courtyards and construction areas.
- Indoor Decoration or Secondary Structure Construction
Suitable for indoor decoration projects and secondary structure construction. Its small size allows it to enter indoor spaces and narrow construction gaps that large equipment cannot reach.
- Small-Scale Auxiliary Projects
Applicable to small-scale tunnel auxiliary construction, small water conservancy projects (such as small reservoir reinforcement, farmland irrigation channel construction), and small civil engineering projects.
Large Mobile Concrete Pump – For Big Projects:
- High-Rise Residential or Community Construction
Suitable for large-volume concrete delivery needs such as high-rise residential buildings, community supporting buildings, and commercial residential complexes.
- Municipal Engineering Projects
Perfectly adapted to large-scale municipal projects such as urban road construction, overpass and bridge construction, urban square renovation, and underground pipeline laying. For such large projects, we also provide matching mixing stations or mixing and conveying integrated machines, realizing one-stop concrete mixing and delivery to save construction time and costs.
- Large-Scale Industrial Construction
Applicable to large-scale industrial projects such as factory building construction, workshop expansion, warehouse construction, and industrial park infrastructure.
Customer Review
We previously worked with a Brazilian construction company that was facing a labor shortage on a multi-story residential project.
The Challenge: They needed to pour concrete on the 5th floor but lacked a tower crane with sufficient reach.
The Solution: After a consultation, they purchased our truck-mounted concrete pump with a diesel engine.
The Feedback:
“The delivery was faster than expected. When we started using the pump, the difference in speed was incredible. We finished the floor slab in half the time we usually take. The PLC controls made it very easy for our operators to learn quickly.” — Carlos M., Site Manager
FAQ About Mobile Concrete Pump
Q: Can I use a mobile concrete pump for high‑slump concrete?
A: Yes. Just adjust the pumping speed.
Q: How many people are needed to operate?
A: One operator with a remote control. One person at the hopper to clean the spillage.
Q: How do I choose between an electric and a diesel mobile concrete pump?
A: An electric mobile concrete pump is ideal for urban projects or indoor environments with a stable power supply and noise restrictions. For construction projects with an insufficient power supply, a portable concrete pump can be selected.
About YG Machinery
For over 20 years, YG Company has been a leader in the construction machinery industry. We are not just a factory; we are engineering partners. Our mobile concrete pump lines are CE and ISO certified, ensuring they meet international safety and quality standards. We offer comprehensive pre-sales consulting to help you choose the right specifications, and our after-sales team is always ready to support you with parts and guidance.
