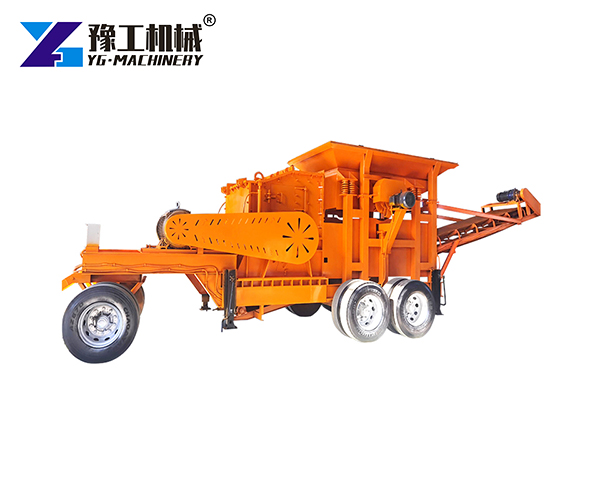

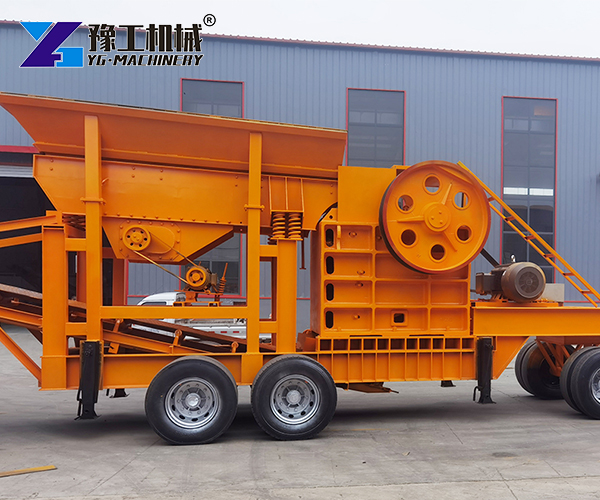

A mobile crusher machine brings the crusher directly to the material. It eliminates the need to haul rocks or concrete to a stationary plant. This machine integrates feeding, crushing, and conveying on a single mobile frame. Contractors and quarry owners use it to process stone, concrete, and asphalt right at the job site. The result is less transport cost and faster project completion. This crusher mobile saves time and reduces equipment needs on every project.
Mobile Crusher Machine Parameters
| Model | 800×800 | 800×1000 | 1000×1200 | 1200×1200 | 1200×1500 | 1400×1600 |
| Motor Power | 90kw×4G | 110kw×4G | 132kw×4G | 160kw×4G | 185kw×4G | 250kw×4G |
| Diesel Power | 195HP | 195HP | 260HP | 330HP | 330HP | 400HP |
| Hopper | 3500×1800×8mm | 3600×2200×8mm | 3600×2200×8mm | 3800×2200×8mm | 3800×2200×8mm | 4000×2400×10mm |
| Hammerhead Weight | 15kg | 15kg | 20kg | 36kg | 36kg | 55kg |
| Total Weight | 10t | 12.5t | 14t | 19t | 21t | 26t |
| Belt | 7×0.8m | 8×0.8m | 8×1m | 8×1m | 8×1m | 9×1m |
| Belt Conveyor Power | 5.5kw | 5.5kw | 7.5kw | 7.5kw | 7.5kw | 7.5kw |
| Tyre Model×Number | 1100×8pcs | 1100×8pcs | 1100×8pcs | 1000×12pcs | 1100×12pcs | 1100×12pcs |
| Sand Capacity | 30t | 45t | 55t | 65t | 80t | 100t |
| Stone Capacity | 50t | 70t | 80t | 90t | 120t | 180t |
| Overall Size | 10*2.8*3.5m | 11*2.8*3.5m | 11.5*2.8*3.5m | 12*3*3.6m | 12*3*3.6m | 13*3.2*3.7m |
Advantages of Mobile Crushing Plant
- Easy to Move:The machine moves between sites without disassembly. Wheeled tires allow road transport. Setup takes minutes, not days. You can relocate the mobile crusher (a common short name for this equipment) as the project moves.
- Lower Transport Cost:Crushing on site means no trucking costs for raw materials. You process material where it sits. This saves fuel and reduces truck traffic on your site.
- Quick Setup:No concrete foundation is needed. The mobile rock crusher starts working soon after arrival. You avoid long installation periods and expensive base construction.
- Flexible Operation:The machine adapts to different materials and site conditions. You can move it around the quarry or job site as needed. This flexibility helps you respond to changing production demands.
- Fuel Efficient:Diesel-electric drive systems reduce fuel consumption. Some models save up to 25% on fuel. Lower fuel use means lower operating costs.

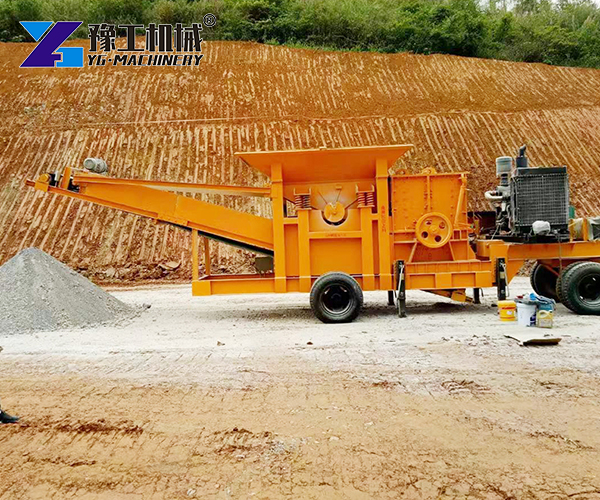

Applications for Mobile Crushing Station
The machine serves many industries and project types. Whether you need a mobile rock crusher for hard stone or a mobile stone crusher plant for recycling, this equipment fits the job.
- Quarrying and Mining:Process granite, limestone, basalt, and other rocks. The machine works at the quarry face. It reduces haul distance and speeds up production.
- Construction and Road Building:Crush stone for road base and aggregate. Use it directly on construction sites. Produce materials where you need them.
- Concrete and Asphalt Recycling:Process demolition waste into reusable aggregate. The mobile stone crusher plant turns old concrete and asphalt into new material. This supports sustainable building practices.
- Tunneling and Underground Work:Handle ore and rock in confined spaces. The crusher mobile design (with wheeled chassis) allows easy movement in tight areas.
FAQs About Mobile Crusher Machine
Q: What materials can this machine process?
A: It processes limestone, granite, basalt, concrete, asphalt, and construction waste.
Q: How long does setup take?
A: Setup takes less than one hour. The mobile crushing plant arrives ready to work.
Q: Do I need a concrete foundation?
A: No. The mobile crusher machine operates without a foundation. This saves time and money.
Q: Can I get a price quote?
A: Yes. Contact YG Machinery for a quote. We provide pricing based on your model and capacity needs.
Q: Is the mobile crushing station easy to transport?
A: Yes. The wheeled design allows road transport.
Q: What is the stone capacity range?
A: Stone capacity ranges from 50t/h to 180t/h depending on the model.
YG Machinery – Quality Mobile Crusher Machine Manufacturer
YG Machinery manufactures durable and reliable Mobile Crusher for customers worldwide. Beyond crushing solutions, YG Machinery also offers Pneumatic Water Well Drilling Rigs, Snow Removal Machines, and Polyurethane Spray Machines for diverse project needs,etc. Contact us today for a quote. We help you find the right model for your project.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
