A road line marking machine applies paint or thermoplastic material to pavement surfaces. These machines create lane lines, crosswalks, arrows, and other traffic markings. Contractors and road crews use this equipment to make roads safer and more organized. The right road marking machine helps you complete projects faster while keeping labor costs under control. Whether you need a unit for a small parking lot or a large highway project, the right road painting machine makes a real difference.
Specifications of YG Road Line Marking Machine
| Model | YG-CK360S | YG-CK380S |
| Thermoplastic Tank | synchronous clutch spreading, equipped with a speed-adjustable gear shifting device, single/double spreading can be selected according to needs, 50-200mm | synchronous clutch spreading, equipped with a speed-adjustable gear shifting device, single/double spreading can be selected according to needs, 50-200mm |
| Glass Bead Container | 10kg/box | 10kg/box |
| Adjustable glass bead spreader | Ensure the machine is moving in a straight line or turning freely on the curved road | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Rear Wheel Directional Device | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, and removable devices | Ensure the machine moving in a straight line or turning freely on a curved road |
| Brake | Using a drum brake, you can adjust the brake tension | Using a drum brake, you can adjust the brake tension |
| Marking width | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) |
| Battery Capacity | 15AH | 15AH |
| Battery Voltage | 48V lithium battery | 48V lithium battery |
| Driver Speed | 1-8km/hour | 1-8km/hour |
| Working Duration | Ensure the machine is moving in a straight line or turning freely on a curved road | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Dimensions | 1210X970X1070mm | 1200X970X1100mm |
| Net weight | 130kg | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, and removable devices |
Hot Melt Road Marking Machine vs. Cold Paint Road Marking Machine: Which One to Choose?
Choosing between a thermoplastic striping machine and a cold paint one depends on your project needs. Each type has strengths for different jobs.

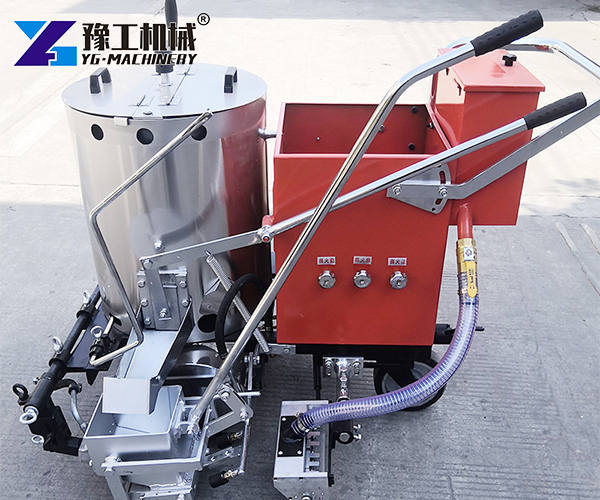

Hot Melt Road Marking Machine
This type heats thermoplastic material to about 180-220°C before applying it to the road. The material cools and hardens quickly. Hot melt markings are thick, typically 1.5-1.8mm, and very durable. They reflect light well when glass beads are added. This makes them ideal for high-traffic roads and highways where markings must last for years. The YG-CK360S and YG-CK380S models are thermoplastic striping machines built for this work.

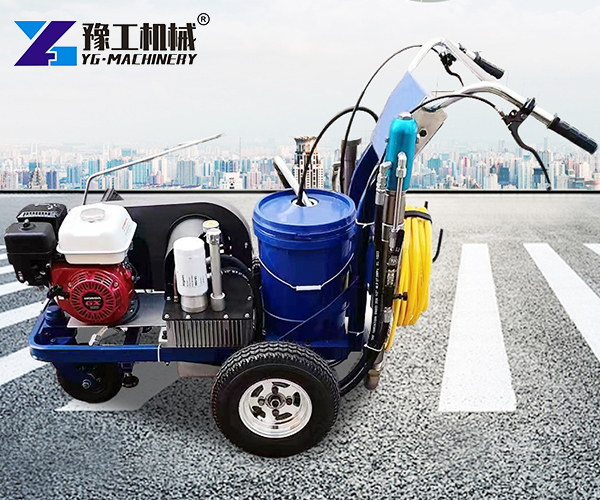

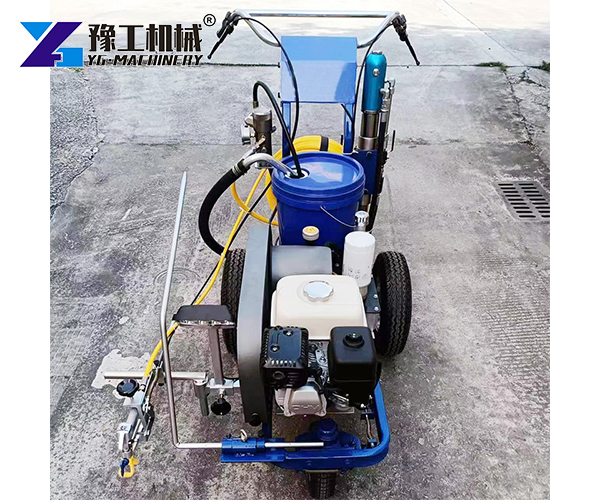

Cold Paint Road Marking Machine
This type sprays liquid paint at normal temperatures. No heating is required. Cold paint dries fast, often in seconds. These machines are simpler to operate and cost less upfront. Cold paint markings work well for parking lots, temporary projects, and low-traffic areas. YG Machinery also offers cold paint machines for these applications.
How to Choose
For highways and busy roads – Choose a hot melt machine. The markings last longer and handle heavy traffic.
For parking lots and warehouses – A cold paint machine works well. It costs less and gets the job done.
For long-term projects – Hot melt is the better investment.For quick, low-budget jobs – Cold paint offers flexibility.
Applications for Road Marking Equipment

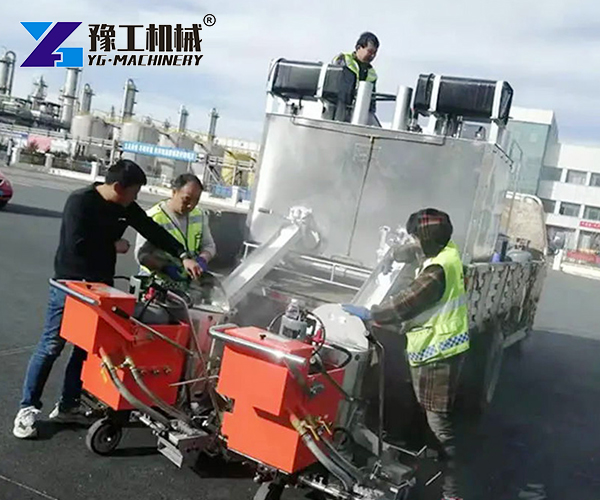

- Highways and Expressways:Highways need clear, durable lines for safety. A road line marking machine with hot melt material creates markings that last for years. Reflective glass beads improve visibility at night and in rain. Well-defined lanes help traffic flow smoothly and reduce accidents.
- Parking Lots:Parking lots require straight, clean lines for organized spaces. Manual painting is slow and often uneven. A road marking machine delivers uniform lines quickly. Cold paint works well here because traffic is lighter and costs are lower.
- Airports:Airports need precise markings for runways, taxiways, and parking areas. Accuracy is critical for safety. Road marking equipment with adjustable width settings handles these demanding jobs.
- Factories and Warehouses:Industrial facilities use lines to define work areas, walking paths, and storage zones. Clear markings improve workplace safety. An electric line painting machine can mark both straight and curved lines quickly.
- Sports Fields and Stadiums:Sports tracks and fields require smooth, consistent lines. Marking curves and straight lines with precision matters for professional results.
FAQ about Road Line Marking Machine
What is the difference between hot melt and cold paint machines?
Hot melt machines heat solid thermoplastic material before applying it. Cold paint machines spray liquid paint at room temperature. Hot melt markings are thicker and last longer. Cold paint dries faster and costs less.
What marking widths are available?
Standard width is 150mm. Optional widths include 100mm, 200mm, 250mm, 300mm, 400mm, and 450mm. You can choose what fits your project.
How long does the battery last?
The 48V lithium battery provides about 5 hours of continuous work after a full charge.
What power supply does the machine need?
These models run on 48V lithium batteries. No external power connection is needed during operation.
Does the machine work on curved roads?
Yes. The rear wheel directional device allows the machine to turn freely on curved roads.
What is the warranty and support?
YG Machinery provides warranty coverage and technical support. Spare parts are available. Our team offers installation guidance and training.

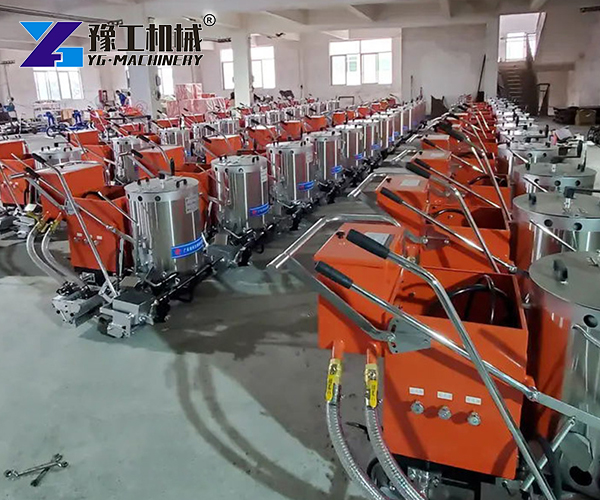

YG Machinery – Road Line Marking Machine Manufacturer
As a manufacturer of road painting machine, YG Mechanical has earned a strong reputation in the industry, serving clients in Romania, the US, and beyond. Leveraging this expertise, YG offers a versatile range of equipment: the Mobile Scissor Lift Platform for safe and flexible elevation, the Concrete Laser Leveling Machine for precision floor finishing, and the Fog Cannon Machine with a 20–120m spray range for effective dust suppression. Whether for marking, lifting, leveling, or environmental control, YG Mechanical delivers reliable solutions for diverse construction needs. For more details and competitive pricing, please contact us today!【WhatsApp/WeChat/Phone/Skype】+86 13937183602
