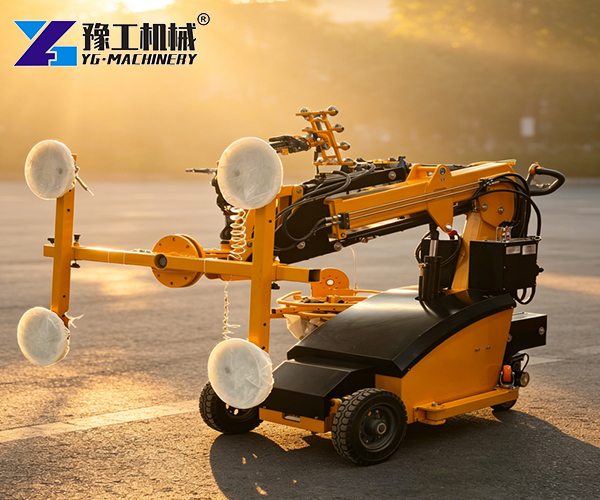

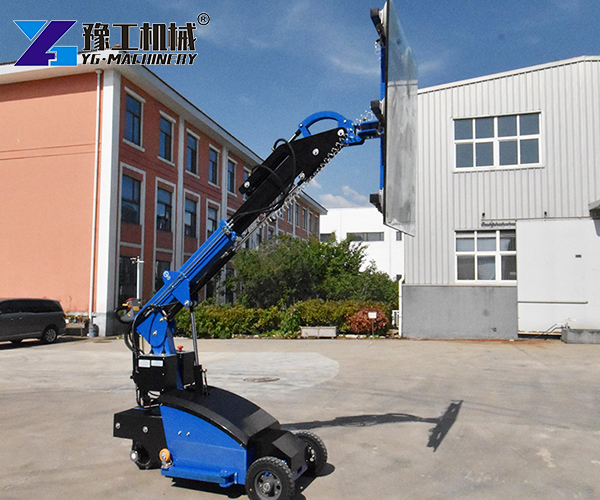

A Glass Installation Robot is designed to lift, move, and place large glass panels on construction sites. This machine uses a vacuum system to hold the glass securely. It replaces manual lifting, which is risky and slow. With this robot, one worker can control heavy glass panels from a safe distance. The machine moves smoothly and places the glass with precision. It is built for curtain wall installation, glass facade projects, and industrial glass handling. Contractors choose this equipment to finish jobs faster and reduce the risk of glass breakage or worker injury.
Specifications of Glass Installation Robot
The Robot comes in five models to match different project needs. Each model has a load capacity from 400 kg to 1200 kg. The suction pads are 300 mm in diameter. The number of pads increases with the load capacity. All models offer 360°rotation and 90°tilting. This allows the operator to position the glass at any angle.
| Parameter | Unit | 400 | 600 | 800 | 1000 | 1200 |
| Load Capacity | kg | 400 | 600 | 800 | 1000 | 1200 |
| Pads Size | mm | Φ300 | Φ300 | Φ300 | Φ300 | Φ300 |
| Pads Qty | pcs | 4 | 6 | 8 | 10 | 12 |
| Battery | V/Ah | 46/376 | 46/376 | 46/376 | 46/376 | 46/376 |
| Charger | V/A | 46/197 | 46/197 | 46/197 | 46/197 | 46/197 |
| Rotation | ° | 360 | 360 | 360 | 360 | 360 |
| Tilting | ° | 90 | 90 | 90 | 90 | 90 |
| Suction Frame Size (X) | mm | 920×820 | 2430×1090 | 1980×1610 | 1980×1610 | 1980×1610 |
| Suction Frame Size (H) | mm | 2396×1180 | 2396×1180 | 2396×1180 | 2396×1180 | 2396×1180 |
| Packing Size (X) | mm | 1200×800×520 | 1200×800×520 | 1200×800×520 | 1200×800×520 | 1200×800×520 |
| Packing Size (H) | mm | 2250×1080×590 | 2250×1080×590 | 2250×1080×590 | 2250×1080×590 | 2250×1080×590 |
The battery and charger specifications are the same across all models. This makes maintenance simple. The suction frame size varies by model to accommodate different glass panel dimensions. The packing size is consistent, which helps with shipping and storage planning. This equipment is not only a glass installation machine but also works for other smooth materials.
Advantages of Glass Installation Robot

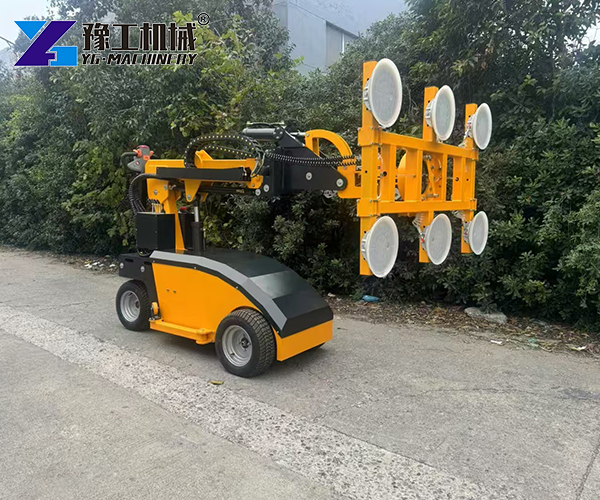

Strong Vacuum Suction System:The machine uses multiple suction cups to hold glass panels firmly. This vacuum glass lifter robot prevents slipping during lifting and movement. That is important for safety on site. The suction cups are made of durable rubber and fit glass surfaces well.

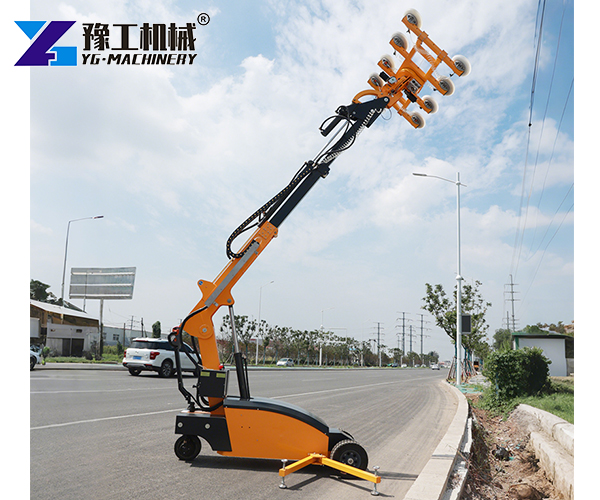

360° Rotation and 90° Tilting:Operators can rotate the glass a full circle and tilt it up to 90 degrees. This flexibility makes it easy to align glass panels with curtain wall frames or window openings. The robot handles angled installations without extra effort.
Easy Remote Control:The glass lifting robot comes with a remote control system. The operator stands at a safe distance while moving the glass. This reduces the risk of accidents. The controls are simple and respond quickly.
Reduces Labor Costs:One machine can do the work of several workers. This lowers labor expenses on each project. The robotic glass lifter also works faster than manual methods. Projects finish sooner, which saves money.
Works with Different Materials:This glass handling robot also lifts marble slabs, metal sheets, and wooden boards. This versatility makes it useful for many types of construction and renovation work.
Maintenance-Free Battery:The battery does not need regular maintenance. This saves time and reduces operating costs. The smart charger protects the battery from overcharging.
Applications of Vacuum glass lifter robot

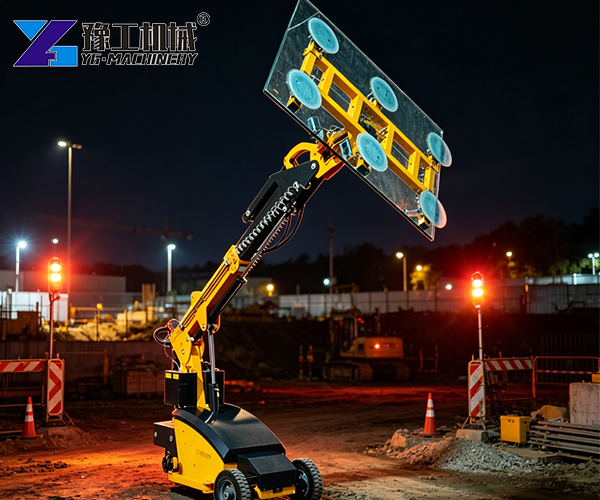

Curtain Wall Installation:High-rise buildings need large glass panels for curtain walls. The Glass Installation Robot lifts these panels to height and positions them accurately. It reduces the need for cranes and scaffolding.
Glass Factory Handling:Glass manufacturers use this machine to move panels within the factory. It reduces breakage during transport. The robot also helps with loading and unloading trucks.
Stone and Marble Lifting:The suction system works on smooth stone surfaces. Contractors use it to install marble cladding on building facades. The tilting function helps align heavy stone panels.
Renovation Projects:Older buildings often need new glass installations. The robot works in tight spaces where cranes cannot reach. Its compact design allows operation indoors and on crowded sites.
Metal Panel Installation:Some buildings use metal panels for exteriors. The robotic glass lifter handles these panels as well. The vacuum suction holds metal surfaces securely.
FAQ
Q1. What is the maximum weight this vacuum glass lifting robot can lift?
The largest model lifts up to 1200 kg. The 400 kg model is suitable for smaller projects. Choose the model that matches your glass panel weight.
Q2. How long does the battery last on a full charge?
Battery life depends on usage. The maintenance-free battery supports a full workday for most projects. The smart charger recharges the battery quickly.
Q3. Is the robot difficult to operate?
No. The remote control is user-friendly. Most workers learn to operate it within a few hours. Training time is short.
Q4. What is the price of this glass lifting robot?
The price depends on the model and configuration. Contact us for a quote. We offer competitive pricing for all models.
Q5. Do you ship internationally?
Yes. YG Machinery ships to many countries. We have delivered to the United States, Spain, Poland, Mexico, and more.
Q6. How many suction cups does each model have?
The number of suction cups ranges from 4 to 12. More cups provide better grip for heavier panels.
YG Machinery – Reliable Supplier of Glass Installation Robot
YG Machinery is a professional manufacturer of construction equipment based in Zhengzhou, China. The company has been in the industry for over 20 years and supplies equipment to more than 50 countries. Our product range includes the glass installation machine, the Mini Mobile Concrete Batching Plant, the Pavement Crack Repair Machine, and the Hydraulic Core Drilling Machine. All machines are built with durable materials and tested for quality. We offer factory-direct pricing and after-sales support. You can buy this robot directly from us with flexible payment terms. For a quote on any model, contact our sales team. We will help you choose the right equipment for your project and provide a competitive price quickly.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
