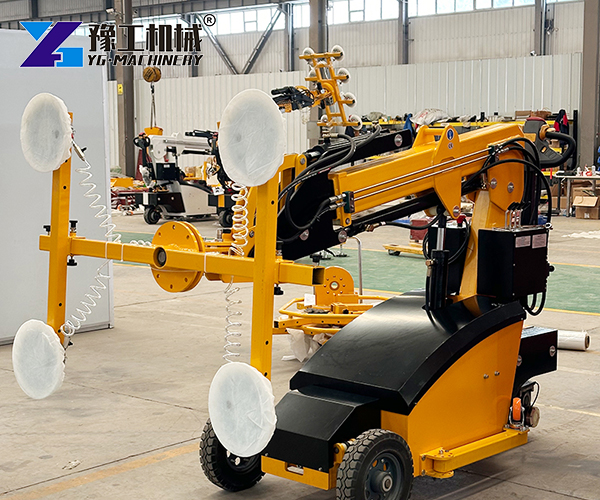

glass carrying robot for sale
glass carrying robot

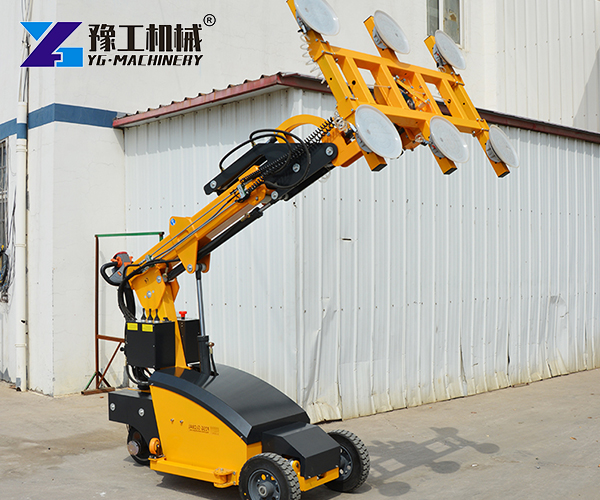

Glass Installation Robot for sale
Glass Installation Robot

Glass panels are heavy, fragile, and often hard to reach. On busy sites, crews need a safer way to move them. A Glass Handling Robot for Sale solves this problem. It uses vacuum pads to hold the glass. The operator controls the lift from a simple panel. The machine can raise, turn, and tilt each panel. Battery power means no cables across the floor. It works inside buildings and on outdoor sites. This makes glass work safer, faster, and more predictable.

REQUEST A FREE QUOTE

Glass Handling Robot for Sale Parameters

ParameterUnit40060080010001200
Load Capacitykg40060080010001200
Pads SizemmΦ300Φ300Φ300Φ300Φ300
Pads Qtypcs4681012
BatteryV/Ah46/37646/37646/37646/37646/376
ChargerV/A46/19746/19746/19746/19746/197
Rotation°360360360360360
Tilting°9090909090
Suction Frame Size (X)mm920×8202430×10901980×16101980×16101980×1610
Suction Frame Size (H)mm2396×11802396×11802396×11802396×11802396×1180
Packing Size (X)mm1200×800×5201200×800×5201200×800×5201200×800×5201200×800×520
Packing Size (H)mm2250×1080×5902250×1080×5902250×1080×5902250×1080×5902250×1080×590

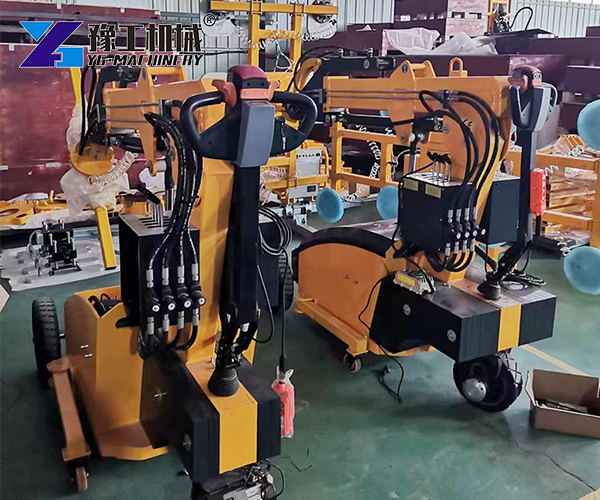

Glass Vacuum Lifting Equipment factory
Glass Vacuum Lifting Equipment factory

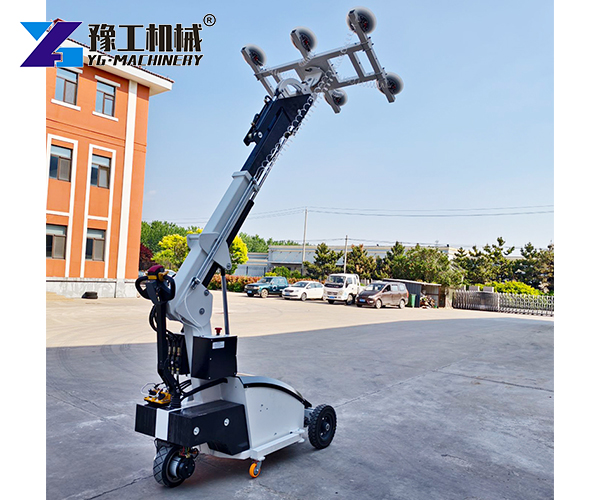

mobile vacuum glass lifter
mobile vacuum glass lifter

REQUEST A FREE QUOTE

Safety Notes of Glass Vacuum Lifting Equipment

  • Clean glass and inspect pads. Dust, oil, or water can weaken the vacuum. Wipe the glass surface before each lift. Check pads for cuts or wear. Replace damaged pads before use.
  • Test vacuum and battery. Turn on the pump and watch the gauge. Make sure the pads hold tight. Charge the battery before a full shift. A low battery can stop the pump during a lift.
  • Stay within the load limit. Each model has a maximum capacity. Overloading can drop the glass. Use a vacuum glass lifting robot only within its rated range. Keep people away from the lift path with barriers or signs.
  • Avoid rain, wet glass, and strong wind. Moisture and wind reduce safety. Do not use the machine in rain or on wet glass. Stop work when wind is too strong. Store the machine in a dry place.

REQUEST A FREE QUOTE

Benefits of Glass Carrying Robot

  • Less physical strain. A glass carrying robot takes the weight of the panel. Workers do not need to hold heavy glass by hand. This lowers the risk of back, shoulder, and arm injuries. It also reduces tiredness during long shifts. Crews can work longer with less fatigue.
  • Faster placement. The machine turns and tilts glass with simple controls. This helps crews set panels faster than manual methods. On large projects, saving a few minutes per panel adds up. A team can install more windows or partitions in one day. This cuts labor time and project delays.
  • Better control. The operator moves the glass in small, exact steps. This makes it easier to line up the panel with the frame. There is less chance of hitting the frame or nearby objects. Good control also means fewer adjustments after placement. This saves time and reduces rework.
  • Fewer broken panels. Vacuum pads hold the glass evenly across the surface. This reduces stress on the edges and corners. Broken glass is costly and can delay work. With a vacuum lifter robot, the risk of chips and cracks drops. This protects the material and keeps the project on schedule.
  • Works in tight spaces. A mobile vacuum glass lifter can fit through narrow doors and halls. Some models fold to a small width. This helps in finished buildings where space is limited. It also works well in small window and door shops.

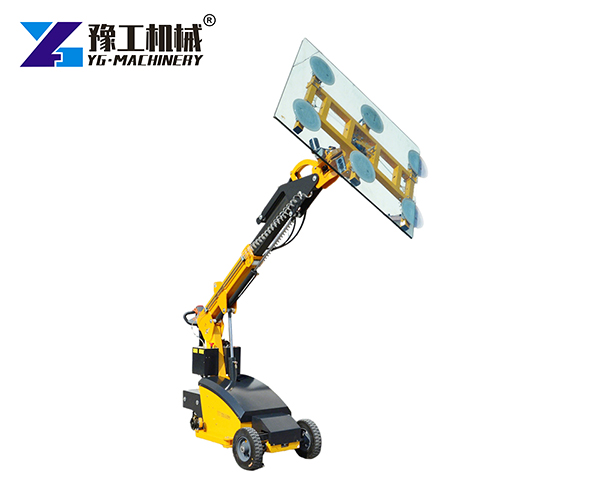

Glass Handling Robot for Sale
Glass Handling Robot for Sale

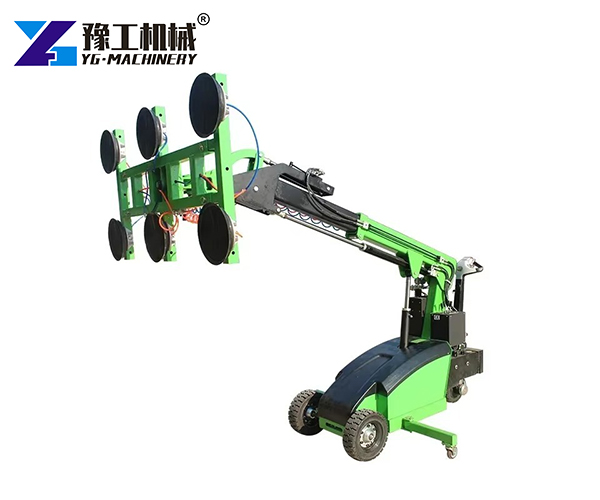

vacuum glass lifting robot price
vacuum glass lifting robot

REQUEST A FREE QUOTE

Applications of Glass Vacuum Lifting Equipment

  • Curtain wall projects. A Glass Installation Robot helps set large panels on building fronts. It holds glass at height.
  • Window and door shops. A mobile vacuum glass lifter moves finished windows in small spaces.
  • Interior partitions. Office and shop partitions need careful glass placement. A vacuum glass lifting robot helps line up panels.
  • Factory production. Glass factories move panels between tables. A robotic glass lifter can feed cutting or polishing lines.
  • Building repairs. Replacement glass often comes in odd sizes. A vacuum lifter robot can hold and turn the new panel.

REQUEST A FREE QUOTE

FAQ

Q: What affects the price?

A: Load capacity, pad count, and battery type affect the price. Ask for a quote with your glass sizes.

Q: Can one person operate it?

A: Yes. One trained operator can control the machine. A helper can guide the glass from a safe distance.

Q: How often should I service it?

A: Check pads, hoses, and battery weekly. Full service depends on use. Follow the manual.

Q: Is training required?

A: Yes. Operators should learn vacuum checks, load limits, and emergency steps before use.

Q: Can I buy a custom model?

A: Yes. Some suppliers build custom pad frames for special glass shapes.

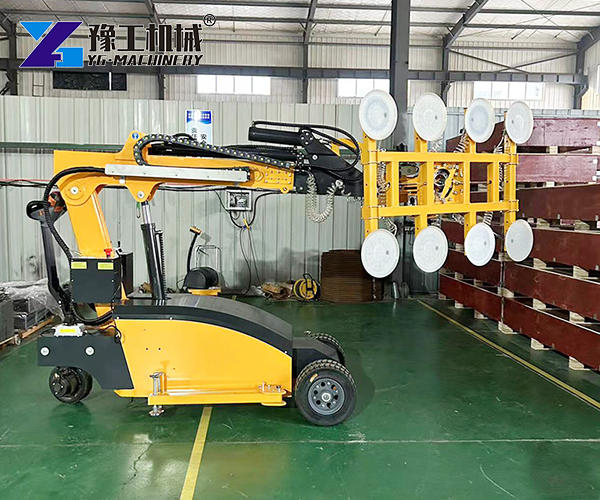

vacuum glass lifting robot for sale
vacuum glass lifting robot

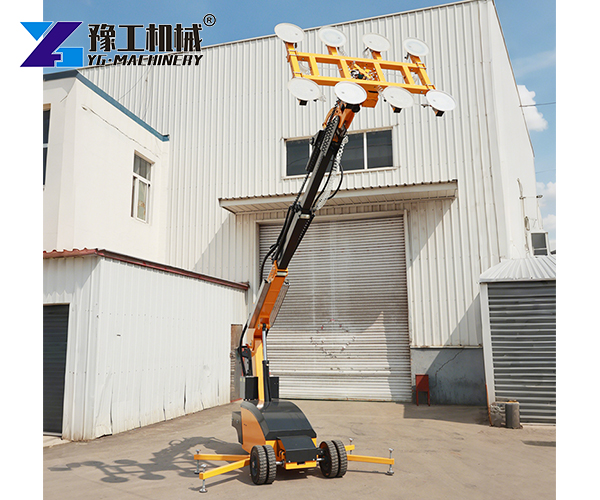

vacuum lifter robot for sale
vacuum lifter robot

REQUEST A FREE QUOTE

Buy Glass Handling Robot for Sale from YG Machinery

YG Machinery builds construction and industrial machines for global buyers. The company offers glass handling equipment plus SPT Drill Rig, Static Concrete Pump, and Hydraulic Concrete Splitter,etc. Factory pricing, shipping, and technical support are available. Contact YG Machinery for a quote.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
