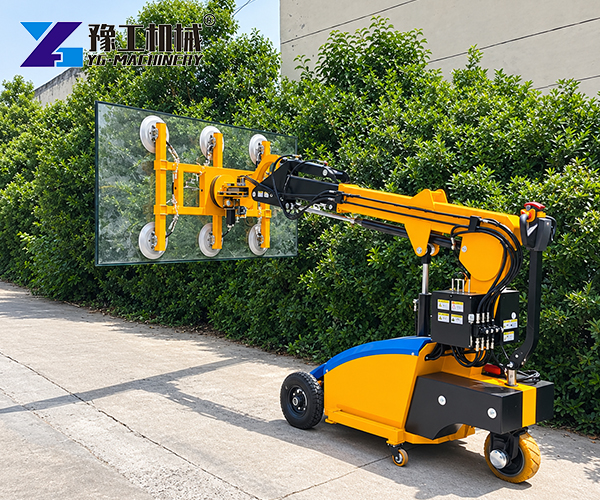

Glass Lift Robot for Safe and Easy Glass Work
Moving large glass panels is hard and dangerous. A Glass Lift Robot makes this job safe and simple. It uses strong vacuum cups to hold glass. Then it lifts, moves, and places the glass where you need it. This machine is a reliable glass installation robot for tall buildings. It can handle heavy glass sheets with ease. Workers do not need to use their hands to hold the glass. This reduces the risk of dropping and breaking glass. It also keeps workers safe from injury.YG Machinery makes high-quality glass handling robots. Our machines are built to last. They work well in many different jobs. You can use them for windows, doors, and curtain walls. They help you finish work faster and with less effort.
Specifications for Vacuum Glass Lifter Robot
| Parameter | Unit | 400 | 600 | 800 | 1000 | 1200 |
| Load Capacity | kg | 400 | 600 | 800 | 1000 | 1200 |
| Pads Size | mm | Φ300 | Φ300 | Φ300 | Φ300 | Φ300 |
| Pads Qty | pcs | 4 | 6 | 8 | 10 | 12 |
| Battery | V/Ah | 46/376 | 46/376 | 46/376 | 46/376 | 46/376 |
| Charger | V/A | 46/197 | 46/197 | 46/197 | 46/197 | 46/197 |
| Rotation | ° | 360 | 360 | 360 | 360 | 360 |
| Tilting | ° | 90 | 90 | 90 | 90 | 90 |
| Suction Frame Size (X) | mm | 920×820 | 2430×1090 | 1980×1610 | 1980×1610 | 1980×1610 |
| Suction Frame Size (H) | mm | 2396×1180 | 2396×1180 | 2396×1180 | 2396×1180 | 2396×1180 |
| Packing Size (X) | mm | 1200×800×520 | 1200×800×520 | 1200×800×520 | 1200×800×520 | 1200×800×520 |
| Packing Size (H) | mm | 2250×1080×590 | 2250×1080×590 | 2250×1080×590 | 2250×1080×590 | 2250×1080×590 |


How to Choose the Right Glass Glazing Robot
Choosing the right machine is important. Here are some key things to think about.
- Load Capacity:Think about the weight of the glass you need to lift. Pick a model that matches your heaviest glass panels. Always leave a little extra capacity for safety.
- Pad Size and Count:The pads hold the glass. All our models use standard pads. But the number of pads changes. Smaller models have fewer pads. Larger models have more pads. More pads mean better grip for bigger glass.
- Battery and Charger:Our machines use a strong battery. This gives long working hours. The charger charges the battery quickly. You can work all day without stopping.
- Rotation and Tilting:All models rotate 360 degrees. They also tilt 90 degrees. This helps you place glass at any angle. It makes tricky jobs much easier.
Safety Tips for Using a Glass Lift Robot
Using this machine is safe when you follow some simple rules.
- Check the Vacuum:Always check the vacuum pressure before lifting. Make sure the pads stick well to the glass. If the vacuum is weak, do not lift. This prevents accidents.
- Do Not Overload:Never lift more than the machine’s limit. Overloading can cause the glass to fall. It can also damage the machine.
- Keep the Area Clear:Make sure the path is clear before you move. Remove any obstacles. This helps you move safely.
- Train Your Workers:Only trained workers should use the machine. They should know how to use it correctly. They should also know what to do in an emergency.


Real cases from Vacuum Glass Lifter Robot Users

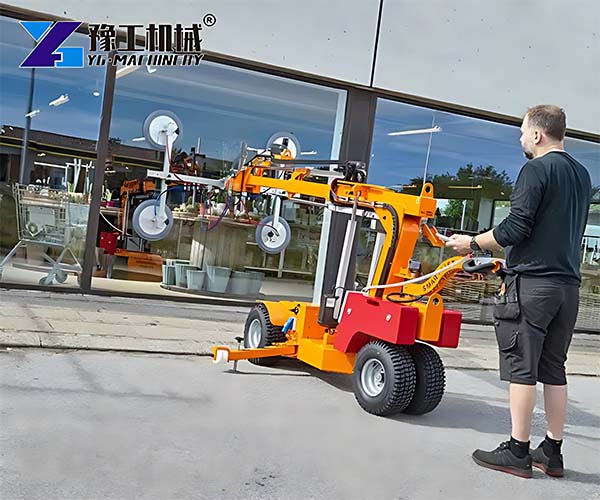

Case 1: Building a Tall Office Tower
John works for a glass company in Chicago. His team needed to install glass on a 30-story building. The job was very hard. They used a Glass Lifting Robot for Curtain Wall. John said, “This machine changed everything. We finished the job two weeks early. The machine was very strong. We never had a single broken panel.”
Case 2: A Small Window Shop
Maria runs a small glass shop in Texas. She needed a machine for her daily work. She found a glass lifting robot for sale at YG Machinery and bought it. Maria said, “The price was very good. The machine is easy to use. My workers love it. We can now do jobs we could not do before. I highly recommend this glass installation robot.”
Why Choose YG Machinery for Your Glass Lift Robot
YG Machinery has supplied lifting equipment to glass and construction teams for over 15 years. Every Glass Glazing Robot is factory-tested before shipment, and we provide spare vacuum pads, clear manuals, and online after-sales support. For buyers who need a glass handling robot, our team can match the right model to your panel weight, size, and job site. We also offer the Spider Crawler Crane for tight spaces, the Electric Scissor Lift Platform for high work, and the Electric Forklift Truck for heavy loads,etc. Send your glass details today for a quote and current price.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
