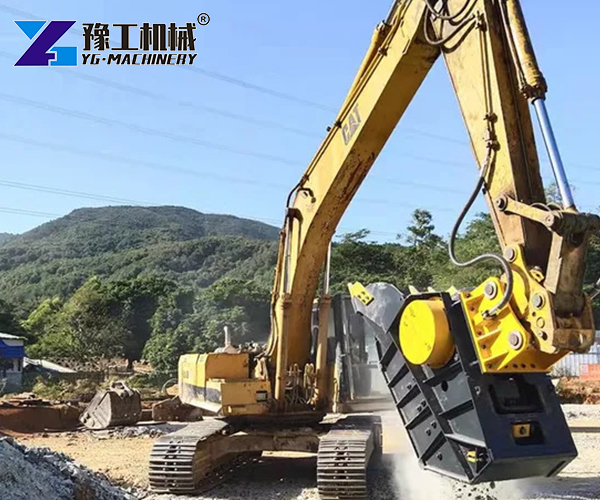

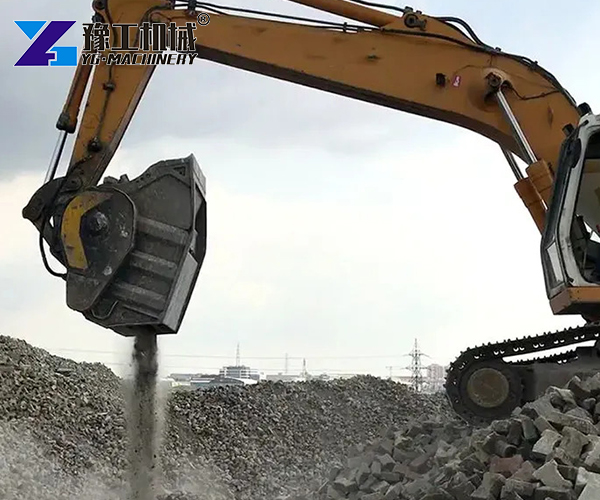

A concrete crusher bucket is a hydraulic attachment that mounts onto an excavator to crush concrete, asphalt, stone, and demolition waste directly at the job site. This excavator crusher bucket eliminates the need to haul materials off‑site for processing-saving time, cutting transport costs, and putting reusable aggregate right back into the project. Whether you need to crush reinforced concrete, break down road materials, or recycle construction debris, this crusher attachment for excavator turns your machine into a mobile crushing unit. Models are available for buy or for sale now. Request a quote today to find the right fit for your fleet.
Specifications of YG Concrete Crusher Bucket
| SPECIFICATION | UNIT | YG-1 | YG-2 | YG-3 | YG-4 | YG-5 | YG-6 | YG-7 | YG-8 |
| Carrier Weight | Ton | 8-12 | 14-18 | 120-25 | 25-30 | 30-35 | 35-50 | 50-75 | ≥ 75 |
| Load Capacity | m³ | 0.15 | 0.55 | 0.66 | 0.70 | 0.90 | 1.30 | 1.60 | 2.30 |
| Opening Dimensions | mm | L540 H250 | L610 H510 | L740 H510 | L850 H510 | L910 H540 | L1205 H540 | L1300 H600 | L1450 H700 |
| Output Setting | mm | 15-60 | 15-60 | 15-130 | 15-135 | 15-140 | 15 – 145 | 40-150 | 100-200 |
| Length (A) | mm | 1240 | 1745 | 2000 | 2050 | 2185 | 2185 | 2930 | 3560 |
| Width (B) | mm | 1000 | 1000 | 1150 | 1300 | 1340 | 1620 | 1880 | 2090 |
| Height (C) | mm | 770 | 1100 | 1200 | 1400 | 1390 | 1390 | 170 | 2065 |
| Weight | Ton | 0.75 | 1.6 | 2.3 | 3 | 3.5a | 4.8 | 7.5 | 10.5 |
| Oil Flow | l/min | 90 | 98 | 140 | 160 | 180 | 210 | 320 | 380 |
| Pressure | bar | 200 | 220 | 220 | 220 | 220 | 220 | 250 | 230 |
| Counter | bar | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Max. Production | m³/h | 10 | 23 | 31 | 34 | 42 | 53 | 88 | 120 |
The YG series fits excavators from 8 tons up to over 75 tons. Load capacity ranges from 0.15 m³ to 2.30 m³, with maximum production from 10 m³/h up to 120 m³/h. Output settings are adjustable—from fine 15 mm material up to 200 mm—giving you control over the final product size for different project needs.
Advantages of Concrete Crusher Bucket
- On‑site crushing saves time and money:Processing materials on‑site means no trucks hauling waste away and no trucks bringing new aggregate in. This excavator concrete crusher cuts transport costs, reduces fuel use, and keeps the job moving. Contractors report significant savings on disposal fees and material purchases.
- One attachment, multiple uses:A crushing bucket handles concrete, asphalt, brick, stone, and mixed demolition debris. It works for road construction, building demolition, quarry work, and site preparation. Swap it on in minutes and start crushing—no separate crusher plant needed.
- Adjustable output for any job:The output setting adjusts to produce different aggregate sizes. Need fine material for backfill? Set it small. Need larger stones for sub‑base? Open it up. This flexibility means one bucket crusher for excavator does the work of multiple machines.
- Built to last:Heavy‑duty steel construction and wear‑resistant components handle tough materials like reinforced concrete and hard rock. The hydraulic system runs off the excavator’s own power—no extra engine or fuel source required.
- Lower operating costs:Using an excavator crusher on‑site replaces the need for a standalone crushing plant. No transport permits, no extra machinery to buy or rent, and less equipment to maintain. The result: lower costs per ton of crushed material.
Applications of Excavator Crusher Bucket
- Demolition and construction recycling:Crush concrete slabs, walls, and foundations directly where they come down. The excavator concrete crusher separates rebar from concrete during crushing, making steel recovery easier. Reuse the crushed material as backfill, sub‑base, or road base.
- Road and highway construction:Process old asphalt and concrete pavements on‑site for reuse in new road layers. Produce graded aggregate that meets spec without bringing in outside material. This cuts both costs and project timelines.
- Quarry and mining operations:Crush natural stone and rock directly at the excavation face. The crusher attachment for excavator reduces oversized material to usable sizes, eliminating the need to move rock to a separate crusher.
- Waste management and landfill reduction:Turn construction debris into valuable aggregate instead of paying landfill fees. Crushing waste on‑site supports sustainable building practices and reduces the environmental footprint of any project.
- Urban and confined sites:Work in tight spaces where a full crushing plant cannot fit. The compact design of a bucket crusher for excavator allows operation in city centers, basements, and other restricted areas.
FAQ–Concrete Crusher Bucket
Q: What size excavator do I need for a Crushing Bucket?
A: YG offers models for excavators from 8 tons up to over 75 tons. Check the carrier weight range in the specifications table to match the bucket to your machine.
Q: How does the crusher bucket work?
A: The bucket has two crushing jaws—one fixed and one that moves. Hydraulic power from the excavator drives the moving jaw back and forth, crushing material between the jaws. Crushed material falls through the adjustable output gap at the bottom.
Q: Can I adjust the output size?
A: Yes. The output setting is adjustable on all YG models. Change the gap between jaws to produce different aggregate sizes for different jobs.
Q: What materials can it crush?
A: Concrete, reinforced concrete, asphalt, brick, natural stone, and mixed construction debris.
Q: Is the excavator crusher for sale now?
A: Yes. YG Machinery has all models available for purchase. Contact us for current price and availability.
Q: Do I need special hydraulics on my excavator?
A: The bucket runs on standard excavator hydraulic circuits. Check the oil flow and pressure requirements in the specifications table against your machine’s capabilities.
Q: How much can it produce per hour?
A: Production ranges from 10 m³/h on the YG‑1 up to 120 m³/h on the YG‑8, depending on material type and output setting.
About YG Machinery
YG Machinery is a professional manufacturer of heavy equipment based in China, with over 20 years of engineering experience. Beyond the concrete crusher bucket, YG produces a full line of excavator attachments including Hydraulic Breaker Machine units for rock breaking, Excavator Hydraulic Shears for steel cutting and demolition, and Self Loading Concrete Mixer Machine models for efficient concrete production on‑site. Every product is built for durability and performance in demanding job site conditions. All YG attachments are available for sale with competitive pricing. Request a quote today—our team will help you select the right model for your excavator and project requirements.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
