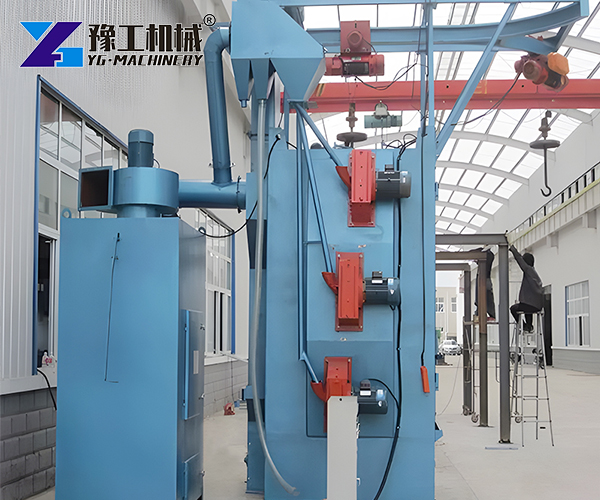

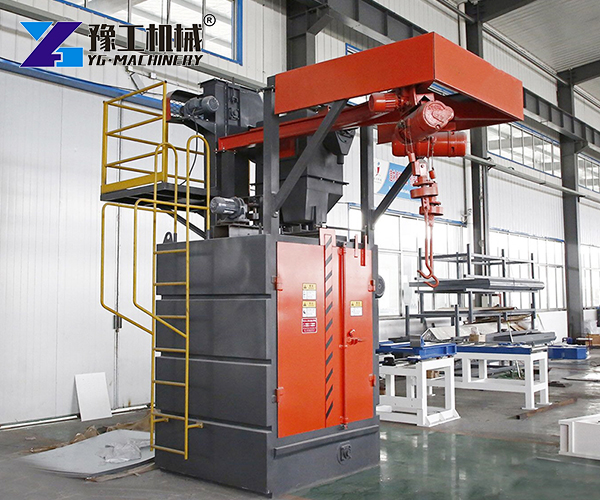

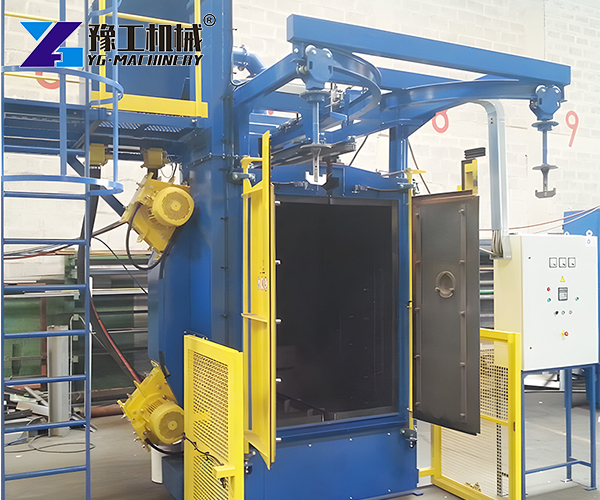

The hanger shot blasting machine cleans metal surfaces by throwing steel shots at high speed. It removes rust, scale, sand, and paint. Workpieces hang on hooks and rotate inside a sealed chamber for full coverage. This hook type shot blasting machine handles medium to large parts, complex shapes, and fragile items.The YG series Hanging Sandblasting Machines offers single-hook and double-hook models. Double-hook design boosts productivity by allowing loading while blasting runs. This industrial shot blaster serves foundries, forges, automotive, shipbuilding, and steel fabrication.
Hanger Shot Blasting Machine Parameters
| Item | YG376 | YG376B | YG378 | YG3710 | YG3720 | YG3730 | YG3750 | YG37100 |
| Maximum weight of cleaning(KG) | 500 | 600 | 800 | 1000 | 2000 | 3000 | 5000 | 10000 |
| Clean the workpiece size(mm) | 600*1200 | 700*1200 | 1000*1600 | 1200*1800 | 1400*2200 | 1600*2300 | 1800*2500 | 3000*3000 |
| Shot blasting amount (kg/min) | 2*200 | 2*200 | 2*250 | 2*250 | 3*250 | 3*250 | 4*250 | 5*250 |
| Lift (T/h) | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
| Separator separation amount (T/h) | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
| Power (KW) | 22.5 | 23.5 | 39.65 | 47.5 | 56.2 | 65.45 | 85.45 | 97.65 |
| Ventilation(m3/h) | 4000 | 4000 | 5000 | 5000 | 9000 | 11000 | 14000 | 16000 |
How a Hanger Type Shot Blasting Machine Works
The hanger type shot blasting machine runs through seven steps. The operator controls the cycle from a panel.
- Loading – Hang workpieces on the hook. The hoist lifts and moves the hook along the track.
- Entry – The hook carries parts into the chamber. The door closes and seals to keep media inside.
- Rotation – The hook spins slowly, exposing all sides to the blast stream.
- Blasting – Blast wheels throw abrasive at high speed. The shots remove rust, scale, and dirt.
- Media Recovery – A screw conveyor collects used shots. An elevator lifts them to a separator. The separator returns clean media to the wheel.
- Dust Collection – A dust extractor removes fine particles, keeping the work area safe.
- Unloading – The cycle ends. The hook exits, and the operator removes clean parts.

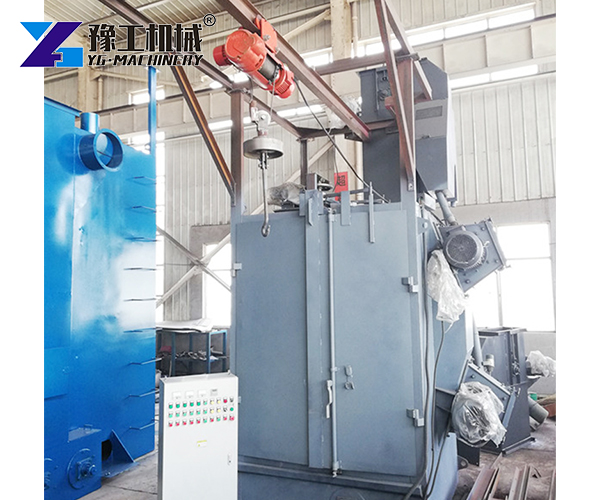

Main Components of Industrial Shot Blasting Equipment
This industrial shot blasting equipment has six main parts:
- Blast Chamber – Sealed and lined with wear‑resistant plates. It protects the operator.
- Blast Wheel Assembly – The core part. It spins and throws media. It includes blades, an impeller, and a cage.
- Hanger System – Hoist, rotation drive, and track. The hoist lifts, the drive spins, and the track guides.
- Abrasive Circulation System – Conveyor, elevator, and separator. It recovers and cleans media for reuse.
- Dust Collector – Removes dust from exhaust air. Regular cleaning keeps it effective.
- Control Panel – Sets cycle times and shows machine status.
Key Features of the Hanger Shot Blasting Machine
This equipment offers clear benefits:
- No Part‑to‑Part Contact – Parts hang separately, so fragile items stay safe.
- Full Surface Coverage – Rotation ensures all sides are blasted evenly.
- High Speed – Multiple wheels throw large media volumes for fast cleaning.
- Flexible Handling – Fits various shapes and sizes. Changeovers are quick.
- Dual‑Hook Option – Double‑hook models reduce idle time and raise output.
- No Pit Needed – Floor‑mounted design saves construction cost.
- Dust Control – Built‑in collector meets safety standards.
Applications of Hook Type Shot Blasting Machine
- Foundries & Forges – Removes sand and scale from castings and forgings.
- Automotive – Cleans engine blocks, frames, and suspension parts.
- Heavy Equipment – Processes booms, loader frames, and crane parts.
- Shipbuilding – Cleans hull plates, beams, and chains before painting.
- Steel Fabrication – Prepares H‑beams and columns for coating.
- Pressure Vessels – Cleans tank shells before welding.
- General Engineering – Handles motor housings, bases, and gears.
Maintenance for Your Hanger Shot Blasting Machine
Regular care keeps the machine productive:
- Inspect Blast Wheels – Check blades and impellers weekly. Replace worn parts.
- Clean Abrasive System – Empty conveyor and elevator monthly. Remove debris.
- Service Separator – Adjust settings to keep abrasive clean.
- Maintain Dust Collector – Clean or replace filters regularly.
- Check Wear Liners – Replace cracked or thin chamber plates.
- Lubricate – Grease bearings, tracks, and hoists as scheduled.
YG Machinery provides installation, training, and spare parts. Ask about support when you buy.
Request a Price Quote for Hanger Shot Blasting Machine Today

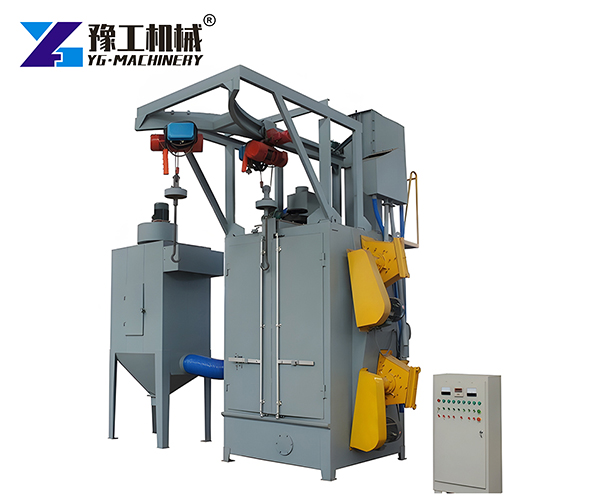

The YG series spinner hanger shot blasting machine delivers fast, uniform cleaning for heavy parts. It suits many shapes without damage. Beyond shot blasting, YG Machinery also supplies the Static Concrete Pump, Gypsum Spray Plaster Machine, and Polyurethane Spray Machine for construction and finishing. Contact YG today for a price quote. Share your part sizes and goals. Get the right machine and improve your surface prep.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
