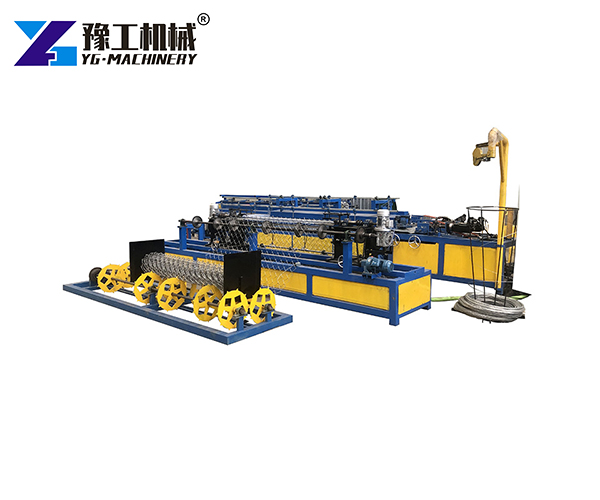

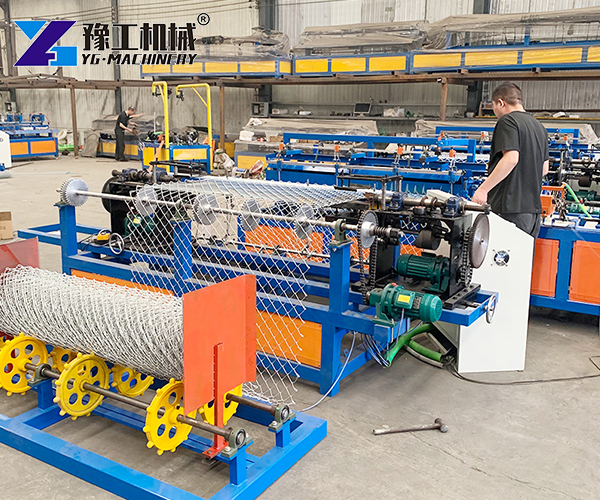

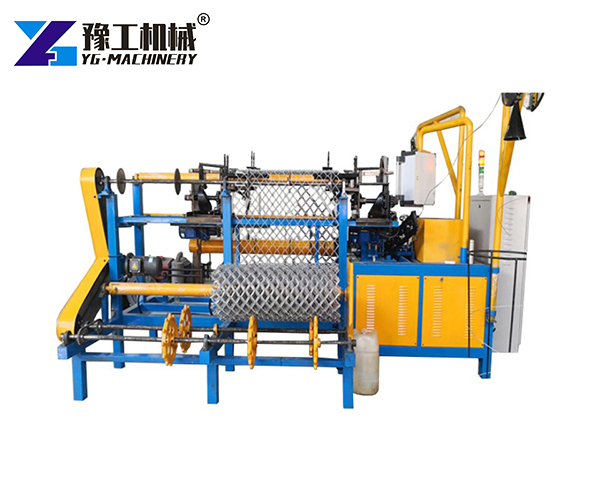

A chain link fence machine is the core equipment for producing diamond-pattern wire mesh used in fences, barriers, and enclosures. This machine automates the entire weaving process—from wire feeding to mesh forming and cutting. Whether you need fences for farms, sports fields, or industrial sites, the right Wire Mesh Welding Machine ensures consistent quality and high output. YG Machinery offers two robust models designed to handle various wire diameters, mesh sizes, and production speeds.
Specifications of Chain Link Fence Machine
| Parameter | YG-20-100 | YG-25-80 |
| Wire Diameter | 1.6–4 mm | 2–4 mm |
| Mesh Size | 20–100 mm | 25–100 mm |
| Mesh Width | 0.5–4 m | 0.5–4 m |
| Speed | 70–80 m²/h | 120–180 m²/h |
| Mesh Length | 30 m, adjustable | 30 m, adjustable |
| Mesh Side | Knuckled and twisted, or knuckle, or twisted | Knuckled and twisted, or knuckle, or twisted |
| Raw Material | Galvanized wire, PVC-coated wire, etc. | Galvanized wire, PVC-coated wire, etc. |
| Machine Size | 4.2 × 2.2 × 1.7 m | 6.7 × 1.43 × 1.8 m |
| Weight | 2,000 kg | 4,200 kg |
Both models support customization. We can design the machine according to your wire diameter, mesh hole size, mesh width, and voltage requirements.
Key Advantages of This Chain Link Fencing Machine
- High Automation for Lower Labor Costs:This chain link fencing making machine runs with minimal manual input. An intelligent control system handles wire feeding, weaving, and cutting automatically. One worker can operate the entire production line. This reduces labor expenses and minimizes human error.
- Wide Material and Specification Flexibility:The wire fence making machine works with galvanized wire, PVC-coated wire, and other materials. It produces mesh from 20 mm to 100 mm in hole size and up to 4 meters in width. You can adjust mesh length freely up to 30 meters. This flexibility makes it suitable for diverse fencing projects.
- Durable Construction for Long Service Life:Key components use high-strength steel and manganese steel for the locking mechanism. The machine frame is built with heavy-duty square tubing. This rugged design reduces downtime and keeps maintenance costs low. Spare parts are readily available for purchase when needed.
- Energy-Efficient Operation:The optimized motor design cuts energy consumption by about 15% compared to similar models. This translates to lower electricity bills over the machine’s lifetime—a significant saving for high-volume producers.
- Three Mesh Side Options:You can choose from three edge types: knuckled and twisted, knuckle only, or twisted only. Knuckle-knuckle edges are safer for residential and sports fencing, while twisted edges offer extra strength for security applications.
Applications of Chain Link Fence Machine
- Agriculture and Livestock Farming:Chain link mesh is widely used for farm fences and animal enclosures. The mesh is corrosion-resistant and can withstand outdoor conditions for over 10 years. Pair this chain link making machine with a wire mesh welding machine for auxiliary fencing components to speed up installation.
- Municipal and Road Construction:Municipal projects require durable barriers for roads, parks, and public spaces. This chain link fence making machine produces strong, impact-resistant mesh that meets safety standards. It is ideal for highway guardrails, park perimeters, and airport fencing.
- Sports Facilities:Basketball courts, tennis courts, and football fields all need secure perimeter fencing. The uniform mesh holes and good elasticity of chain link fencing make it a safe choice for sports venues.
- Warehousing and Logistics:Warehouses use chain link mesh for shelf dividers, storage cages, and security partitions. The mesh supports weight and prevents items from falling, improving workplace safety.
- Industrial and Security Sites:Factories, power plants, and construction sites need reliable security fencing. This chain link fencing machine produces heavy-duty mesh that deters unauthorized access.
FAQ
What is the production speed of this chain link fence machine?
The YG-20-100 model produces 70–80 m² per hour. The YG-25-80 model reaches 120–180 m² per hour. Actual speed depends on wire diameter and mesh size. We can recommend the right model based on your production goals.
What raw materials can this chain link fence making machine process?
It processes galvanized wire, PVC-coated wire, stainless steel wire, and aluminum alloy wire.
What mesh side options are available?
You can choose knuckled and twisted, knuckle only, or twisted only. Knuckle-knuckle is safer for residential use; twisted offers more strength for industrial fencing.
Do you offer after-sales support?
Yes. We provide 24/7 online technical support. Engineers respond quickly to any issues. Common spare parts are in stock and available for purchase.
Can you customize the machine for my needs?
Absolutely. We design the machine according to your wire diameter, mesh hole size, mesh width, and voltage requirements.
YG Machinery – Your Trusted Partner for Fencing Equipment
YG Machinery is a professional manufacturer of chain link fence machines and other industrial equipment. Our product line also includes the Crawler Dredging Robot for waterway cleaning, Dry Ice Washing Machine for industrial cleaning, and Water Bottle Blowing Machine for plastic container production. All our machines are built with quality components and backed by reliable after-sales service. Contact us today for a quote.We are ready to help you find the right solution for your fencing production needs.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
