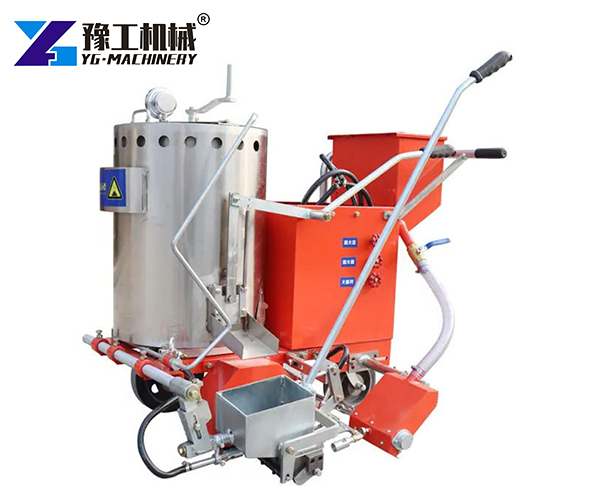

A Hot Melt Road Marking Machine is a key tool for painting durable lines on roads, parking lots, and airports. It heats thermoplastic paint to a liquid state and applies it to the surface. The paint cools quickly and forms a strong, reflective marking that lasts for years.

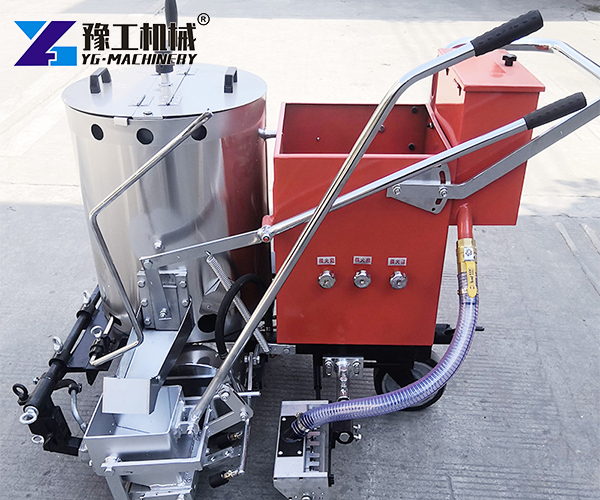

This type of thermoplastic road marking paint machine is built for heavy use. It handles large jobs with ease and delivers clear lines every time. Whether you need to mark highways or city streets, a road line marking machine gets the job done fast.
Key Specifications of Hot Melt Road Marking Machine
| Model | YG-CK360S | YG-CK380S |
| Thermoplastic Tank | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, removable devices | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, removable devices |
| Glass Bead Container | 10kg/box | 10kg/box |
| Glass Bead Spreader | synchronous clutch spreading, equipped with a speed-adjustable gear shifting device, single/double spreading can be selected according to needs 50-200mm | synchronous clutch spreading, equipped with a speed-adjustable gear shifting device, single/double spreading can be selected according to needs 50-200mm |
| Rear Wheel Directional Device | Ensure the machine moving in a straight line or turning freely on the curved road | Ensure the machine moving in a straight line or turning freely on a curved road |
| Brake | Using a drum brake, you can adjust the brake tension | Using a drum brake, you can adjust the brake tension |
| Marking width | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) |
| Battery Capacity | 15AH | 15AH |
| Battery Voltage | 48V lithium battery | 48V lithium battery |
| Driver Speed | 1-8km/hour | 1-8km/hour |
| Working Duration | The machine can mark road lines24 hours after charging the battery5 hours | The machine can mark road lines24 hours after charging the battery5 hours |
| Dimensions | 1210X970X1070mm | 1200X970X1100mm |
| Net weight | 130kg | 150kg |
Advantages of Hot Melt Road Marking Machine
- Durable Lines That Withstand Heavy Traffic:Thermoplastic paint creates a hard, long-lasting bond with asphalt and concrete. The markings stay bright and visible for years, even under constant vehicle wear. This road line marking equipment reduces the need for frequent repainting, saving time and materials.
- Quick Drying Reduces Road Closures:The hot paint sets within minutes after application. Crews can reopen lanes to traffic much faster than with cold paint. A Hot Melt Marking Machine keeps projects on schedule and minimizes disruption for drivers.
- Reflective Beads Enhance Night Safety:The machine applies reflective glass beads together with the paint. These beads make lines shine in headlights and rainy conditions. This feature makes a thermoplastic road marking machine essential for highways, airports, and any area with low-light traffic.
- Versatile for Different Line Types and Surfaces:This equipment works on various surfaces like asphalt, concrete, and even some industrial floors. It handles straight lines, curves, arrows, and symbols with equal precision. Contractors can use one machine for many different marking tasks.
- Simple Operation and Low Maintenance:The design focuses on ease of use. One operator can control the machine smoothly with minimal training. The build is rugged and reliable, so routine maintenance is quick and keeps downtime to a minimum. For any large‑scale project, this thermoplastic paint machine is a practical choice.
Customer Case: California Municipal Public Works
A California city’s public works department faced high repainting costs for road lines. Cold paint markings wore off within months under heavy traffic and harsh sun. The department tested a rental unit first, then bought a YG-CK360S thermoplastic road marking machine.
The results were better than expected. Thermoplastic lines stayed bright and visible for over two years without repainting. The city saved 40% on striping budgets compared to the previous year. Jobs finished faster because paint dried in minutes – roads reopened sooner and drivers faced fewer delays. The glass bead spreader applied reflective beads evenly, making lines clearly visible at night and in rain. The maintenance crew reported that battery power cut fuel costs to zero, and routine upkeep required just cleaning and occasional checks. One crew member noted that the machine handled curves and straight sections with equal ease, a major improvement over their old unit. The department is now planning to use the same equipment for parking lot and school zone markings.
FAQ
Q: What type of paint does this Hot Melt Marking Machine use?
A: It uses thermoplastic road marking paint. This material is heated to a molten state and applied to the surface. It cools and hardens into a durable marking.
Q: How long does the battery last?
A: The 48V lithium battery provides up to 5 hours of continuous work after a full charge.
Q: What marking widths are available?
A: The standard bucket is 150mm. Optional sizes include 100mm, 200mm, 250mm, 300mm, 400mm, and 450mm.
Q: Is the machine easy to move on site?
A: Yes. The rear wheel directional device allows straight-line movement and smooth turning on curves. The machine is also equipped with a drum brake for safe stopping.
Q: Does it apply glass beads for reflectivity?
A: Yes. The adjustable glass bead spreader applies beads synchronously with the paint. This creates reflective lines that improve night visibility.
Q: What is the working speed?
A: The driver speed ranges from 1 to 8 km/hour, adjustable to suit different job conditions.
YG Machinery – Hot Melt Road Marking Machine Manufacturer
YG Machinery is a trusted manufacturer of construction and road maintenance equipment. The company offers a wide range of machines including the Hot Melt Road Marking Machine, Trailer Fog Cannon for dust control, Hydroseeding Equipment for land restoration, and Dry Ice Washing Machine for industrial cleaning,etc.All products are built with quality materials and backed by professional after-sales support. YG Machinery ships worldwide and provides factory-direct pricing.Ready to upgrade your road marking operations? Send an inquiry today and get the durable thermoplastic road marking paint machine you need.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
