Lake dredging robot is a track-based machine for clearing sediment from lakes. It uses a wireless remote, so the operator stays on land. The machine pumps sludge through a hose to a collection point. It works in shallow water and narrow areas where boats cannot go. This equipment removes mud, sand, and organic waste from lake bottoms. The track base moves on soft ground. The suction pump pulls up the material. A hose carries it away. The machine can work in deep water. It also handles small particles. A dredge remote robot lets one person control speed, direction, and pump flow. This keeps the crew safe and reduces labor. Unlike a large robotic dredge, this unit fits narrow spaces. The underwater dredging robot can work in dark water with LED lights. The sludge removal robot handles thick mud without clogging.
Sludge Cleaning Robot: Technical Data
| Parameter | YG500 | YG600 | YG700 | YG800 | YG900 | YG1200 |
| Robot Dimensions (mm) | 1500*500*650 | 1500*600*650 | 1600*700*650 | 1600*850*700 | 1650*960*750 | 1900*1200*750 |
| Dredging Width (mm) | 500 | 600 | 700 | 800 | 900 | Suitable for large culverts |
| Travel Speed (m/s) | 3–15 | 3–15 | 3–15 | 3–15 | 3–15 | 0–17 m/min |
| Pump Diameter (inch) | 3 | 3 | 4 | 4 | 4 | 4or6 |
| Pump Flow (m³/h) | 100 | 100 | 160 | 160 | 200 | 250 |
| Pump Head (m) | 0–30 | 0–30 | 0–25 | 0–25 | 0–25 | 0–30 (Horizontal: 100–150m) |
| Hydraulic Station Dimensions (mm) | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2120*1240*1200 |
| Main Motor Power (kW) | 18 | 18 | 22 | 22 | 22 | 45KW (50KW) or Diesel 76KW (123KW) |
| Hydraulic System Pressure (Mpa) | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | Not specified |
| Particle Size (mm) | 15 | 15 | 40 | 40 | 50 | 0–40 (customizable) |
| Winch Speed (r/min) | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| Pipe Length (m) | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30m/pack, 20kg pressure resistant, optional |
| Control System | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote |
| Lighting System | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 |
Lake Dredging Robot Working Process

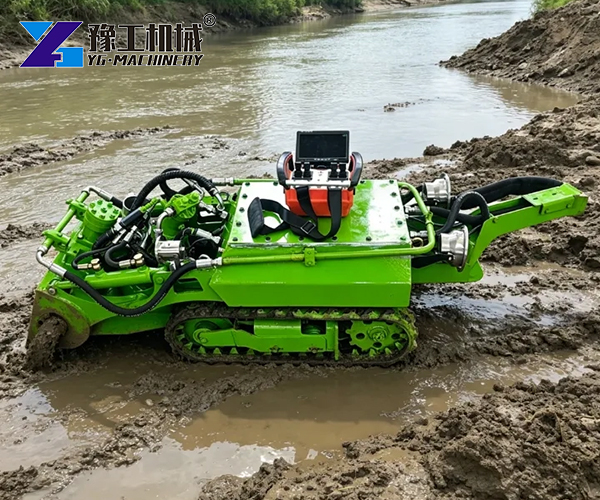

The lake dredging robot sits on the lake floor. The operator uses a handheld remote. The tracks move the robot forward. The pump creates suction. Sludge enters the pipe and travels to shore. The hydraulic power unit stays on land. It sends oil to the robot through hoses. This keeps the motor dry. The winch helps pull the robot if it gets stuck. The whole process is simple and safe.
Main Components of Sediment Removal Robot
- Track System — The tracks give grip on mud and sand. They let the machine move on slopes. This keeps the robot stable.
- Suction Pump — The pump lifts sludge and water. It comes in different sizes. This allows the machine to match the job.
- Remote Control — The remote sends signals to the robot. It controls speed and pump power. The operator stays on shore.

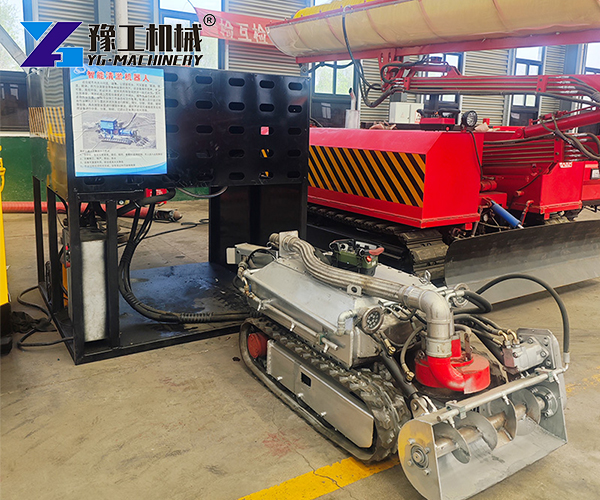

- Hydraulic Station — The station provides power. It stays on land. This protects the motor from water.
- LED Lights — Two lights help the camera and operator see. They work in muddy water.
- Winch — The winch helps with recovery and pipe movement. It adds safety.
Sediment Removal Robot in Action: A Real Case
A city park in Ohio had a shallow lake. Leaves and mud filled the lake each year. A boat dredger could not enter. The park manager bought a YG700 unit. The team set it up in two hours. The robot cleaned the lake in three days. The manager said, “It was easy to use. We did not need to drain the lake. The price was fair, and the quote came fast.” He plans to buy a second unit for another pond.
FAQ About Lake Dredging Robot
1. How is this different from a boat dredger?
It is smaller and remote-controlled. It reaches shallow and narrow areas. A boat cannot go there.
2. How many people are needed?
One person can control the robot. One or two others can manage the hose.
3. Can it handle rocks?
It handles small stones and mud. Large rocks may need removal first.
4. Does it need a power cable?
The hydraulic station stays on shore. It uses electric or diesel power.
5. How do I get a price?
Send your lake size and job details. We will send a quote quickly.
YG Machinery Support for Sludge Cleaning Robot
YG Machinery makes construction and environmental equipment in Zhengzhou, China. The company serves buyers in many countries. It offers this dredging robot for sale. It also builds the Trailer Fog Cannon, Electric Street Sweeper, and Snow Cleaning Machine,etc. For a free quote or price, contact YG Machinery. The team will help you choose the right model.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
