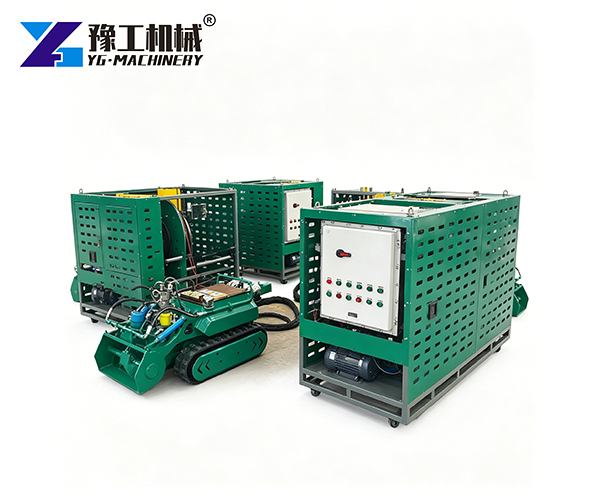

A remote control dredging robot removes mud, sand, and sludge from underwater areas. The operator stays on shore and uses a wireless remote. This tracked machine has a suction pump and moves on soft mud or hard ground. It works in rivers, lakes, ponds, and tanks, and replaces manual digging in small or confined areas.
Technical Parameters of the Dredging Robot Machine
| Parameter | YG500 | YG600 | YG700 | YG800 | YG900 | YG1200 |
| Robot Dimensions (mm) | 1500×500×650 | 1500×600×650 | 1600×700×650 | 1600×850×700 | 1650×960×750 | 1900×1200×750 |
| Dredging Width (mm) | 500 | 600 | 700 | 800 | 900 | For large culverts |
| Travel Speed | 3–15 m/s | 3–15 m/s | 3–15 m/s | 3–15 m/s | 3–15 m/s | 0–17 m/min |
| Pump Diameter (inch) | 3 | 3 | 4 | 4 | 4 | 4 or 6 |
| Pump Flow (m³/h) | 100 | 100 | 160 | 160 | 200 | 250 |
| Pump Head (m) | 0–30 | 0–30 | 0–25 | 0–25 | 0–25 | 0–30 |
| Main Motor Power (kW) | 18 | 18 | 22 | 22 | 22 | 45 or Diesel 76 |
| Particle Size (mm) | 15 | 15 | 40 | 40 | 50 | 0–40 |
| Control System | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote |
| Lighting | LED×2 | LED×2 | LED×2 | LED×2 | LED×2 | LED×2 |
Key Benefits of the Underwater Dredging Robot
- Safe remote operation — Operators work from shore. No one enters deep water or confined tanks. This lowers accident risk.
- Compact size — The compact dredging robot fits through narrow openings. It reaches culverts, small ponds, and basement sumps.
- Strong suction — The pump moves a large volume of slurry. It lifts mud, sand, gravel, and organic waste. Wear parts last long in tough conditions.

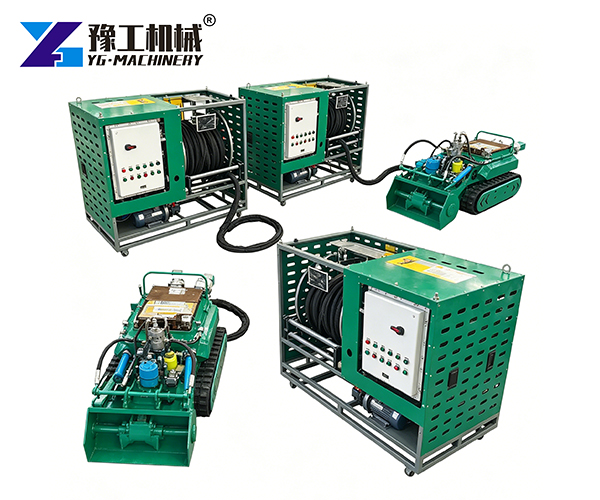

- Low setup cost — The power station stays on land. One person can start the job in about an hour. Fuel and power use are low.

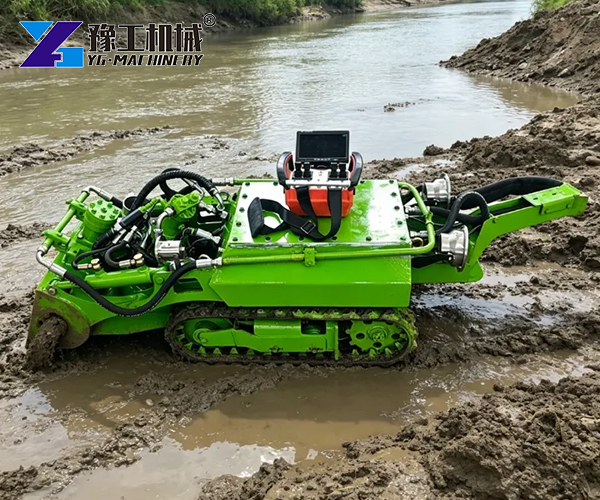

- Easy movement — Crawler tracks move well on mud, sand, and slopes. The machine stays stable during work.
Applications of the Remote Control Dredging Robot
- River and canal cleaning — Sediment builds up and raises flood risk. The robot removes silt without draining the water.
- Lake and reservoir repair — Sludge reduces water storage. The machine restores depth and improves water quality.
- Industrial pond — Factories and power plants use settling ponds. The crawler dredging robot cleans them without stopping production.
- Wastewater treatment — Plants need regular sludge removal. The Remote Control Dredging Robot works in clarifiers and aeration basins.
- Port and harbor work — It keeps channels and berths at safe depth where large dredgers cannot reach.
- Aquaculture ponds — It clears waste from fish and shrimp ponds without draining them.

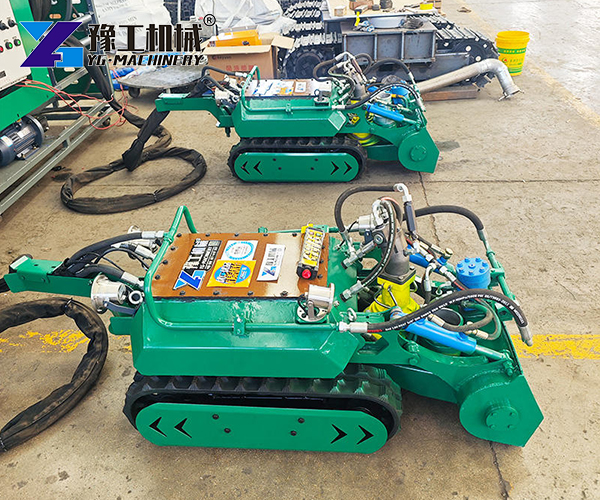

Maintenance Guide for the Sludge Removal Robot
- Rinse after each job — Flush tracks, pipes, and pump with clean water. Leftover mud hardens and blocks flow.
- Check hydraulic hoses — Look for cuts, leaks, or loose fittings. Replace bad hoses before they fail.
- Test remote batteries — Charge or replace batteries after every shift. Low power can stop the machine.
- Clean LED lights — Wipe lenses with a soft cloth. Clear lights help the operator see underwater.
- Store dry — Park the robot on a dry surface. Cover it to stop rust and connector damage.
FAQ About Remote Control Dredging Robot
1. What is the price of this machine?
Price depends on the model and pump size. Contact YG Machinery for a free quote and latest price.
2. Can I buy a robot for a small pond?
Yes. The YG500 and YG600 models work well in small ponds and narrow channels.
3. How deep can the underwater dredging robot work?
It depends on the pump head and pipe length. Standard models handle 0–30 m pump head. Custom pipe lengths are available.
4. What power supply does it need?
Most models use electric power. The YG1200 can also use a diesel engine.
5. Do you provide spare parts?
Yes. YG Machinery supplies pumps, hoses, remote controls, and wear parts for long-term use.
YG Machinery: Quote and Service for Dredging Robot Machine
YG Machinery is a manufacturer of construction and environmental equipment in Zhengzhou, China. It serves customers in over 30 countries. The company offers the dredging robot for sale, along with the Fog Cannon Machine, Electric Floor Scrubber, and Snow Removal Machine,etc. To buy or request a free quote, contact YG Machinery today for price and delivery.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
