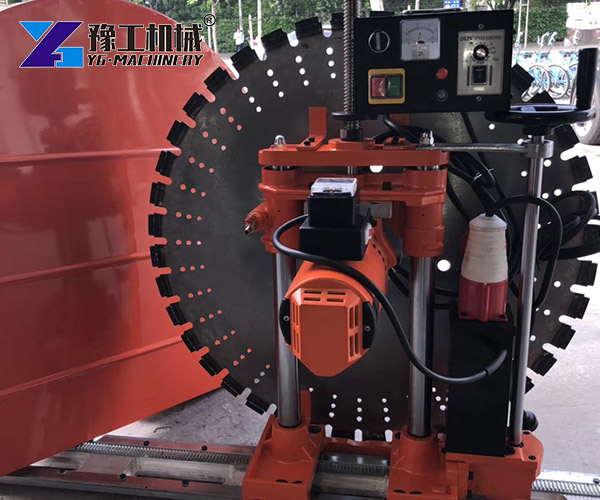

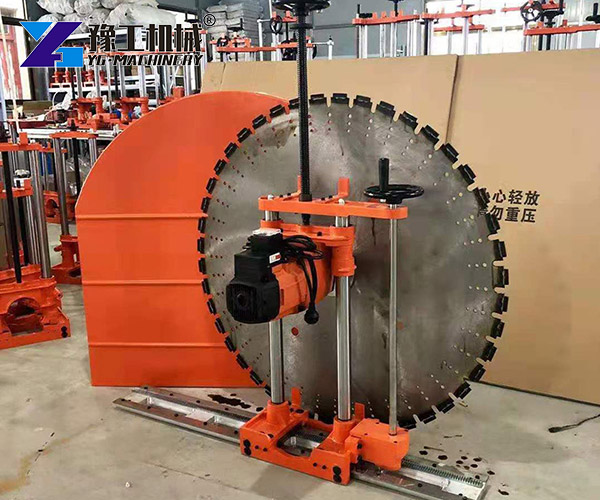

Electric Wall Saw

An Electric Wall Saw cuts concrete walls with a diamond blade on a guide rail. It makes straight cuts with less dust and vibration than a breaker. This guide covers benefits, applications, and buying details. You can also learn how to get a quote and price for a unit.

YG offers wall saws for different wall thicknesses. The saw head moves on a track. It is built for contractors who need a reliable concrete wall sawing machine. Units are for sale with different blade sizes. For deeper cuts, a hydraulic concrete wall saw can be used. Buyers can request a quote based on project needs.

REQUEST A FREE QUOTE

Electric Wall Saw Parameters

Model	YG-800	YG-1000	YG-1200
Saw blade diameter	800mm	1000mm	1200mm
Cutting depth	320mm	420mm	520mm
Power/Voltage	7280w/220v	7580w/220v	7880w/220v
Rotary speed	400r/min	380r/min	350r/min
Machine weight	35kg	38kg	45kg
Machine size	55*55*78cm	55*55*88cm	55*55*98cm

REQUEST A FREE QUOTE

Benefits of a Concrete Wall Saw Cutting Machine

• Light and portable. The saw head and rail separate for transport. One or two workers can move it through doors and stairs.
• Straight, clean cuts. The guide rail holds the blade on line. Edges need less grinding after cutting. This saves time on finishing work.
• Adjustable cutting. Operators can set the cutting depth and make more than one pass. This protects the blade and motor. It also helps when cutting hard concrete.
• Low dust and vibration. Water feed controls dust and cools the blade. The saw can be used in occupied buildings, such as schools and hospitals.
• Simple setup. The rail mounts with anchors. Controls are easy to learn, so crews can start work quickly. This concrete wall sawing machine needs little maintenance.

REQUEST A FREE QUOTE

Applications of a Wall Sawing Machine

• Door and window openings. Cut new openings in concrete walls for frames and glass. The straight cut makes it easy to install new frames.
• Structural renovation. Remove wall sections without damaging nearby structures. The saw gives a clean edge for repair work.
• Service penetrations. Make passages for pipes, ducts, and cables. This is common in commercial buildings.
• Tight-access areas. Work in basements, stairwells, and plant rooms where large machines cannot enter. The compact saw head fits close to corners.
• Bridge and foundation work. Cut joints and sections in civil projects. For deeper cuts, a hydraulic concrete wall saw can be used.

REQUEST A FREE QUOTE

Real User Case for Concrete Wall Saw

A demolition contractor in Victoria, Seychelles, needed to cut reinforced concrete walls for a commercial renovation. The site had limited space for heavy equipment. The contractor chose YG’s wall saw and a wire saw for larger cuts. The compact saw head fit into a narrow service corridor. The rail system made accurate cuts without over-cutting. The project finished on time, and the contractor ordered a second unit.

REQUEST A FREE QUOTE

Electric Wall Saw vs. Other Saw Types

The table compares three common methods.

eature	Electric Saw	High Frequency Wall Saw	Hydraulic Wall Saw
Power Source	Electric motor	High-frequency motor	Hydraulic pump station
Setup	Simple rail and blade	Simple rail and control box	More setup with hoses and pump
Cutting Depth	Standard range	Precise, similar range	Deepest cuts
Weight	Light and portable	Slightly heavier	Saw head light, pump separate
Best For	Small to medium openings	Precision cuts on reinforced concrete	Deep cuts and heavy demolition
Maintenance	Low	Low	Higher — oil, hoses, pump

REQUEST A FREE QUOTE

Common Questions About Concrete Wall Saw Cutting Machine

Q: What is the maximum cutting depth?

A: It depends on the blade size. For deeper cuts, a hydraulic saw is the better choice.

Q: Does the machine work on normal site power?

A: Yes. The saw runs on common single-phase power.

Q: Can I get a quote for multiple units?

A: Yes. Contact YG with your cutting needs and quantity. A sales engineer will send a quote within 24 hours.

Q: What blade is best for reinforced concrete?

A: Use a diamond blade made for reinforced concrete. Match the blade to the saw and the wall material.

Q: Is a wire saw needed for very thick walls?

A: For walls beyond the saw’s range, a wire saw is the better choice. YG supplies hydraulic wire saw cutting machines for these projects.

REQUEST A FREE QUOTE

About YG Machinery and Wall Sawing Machine Support

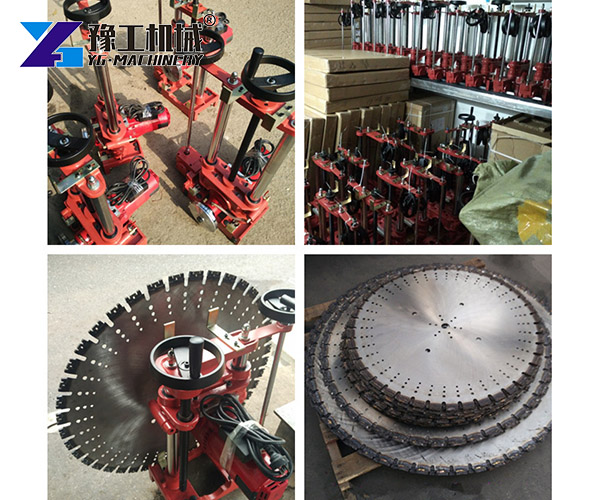

YG Machinery builds concrete cutting equipment for global buyers. Besides the electric wall saw, YG offers High Frequency Wall Saw ,Hydraulic Wire Saw Cutting Machine and Diamond Wire Saw Cutting Machine for deeper or special cuts. Each unit is tested before shipment. Send your wall material, cutting need, and power supply to get a quote and price. The team helps you choose the right machine and blade.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
