Many construction contractors run into recurring troubles during large-area concrete floor construction. Traditional hand screeding relies on string lines and manual levelling, which brings uneven slab elevation, inconsistent floor flatness, and frequent rework after concrete curing. Extra concrete material gets wasted for fixing sunken or raised floor areas, while more skilled workers push up overall labour expenditure and drag down the whole project’s progress. A properly configured laser concrete screed machine solves these common site pain points by removing human-caused levelling errors from concrete pouring tasks.
What Is a Laser Concrete Screed Machine

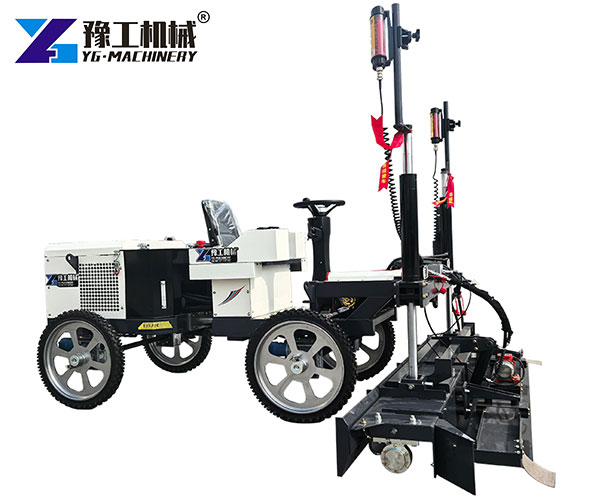

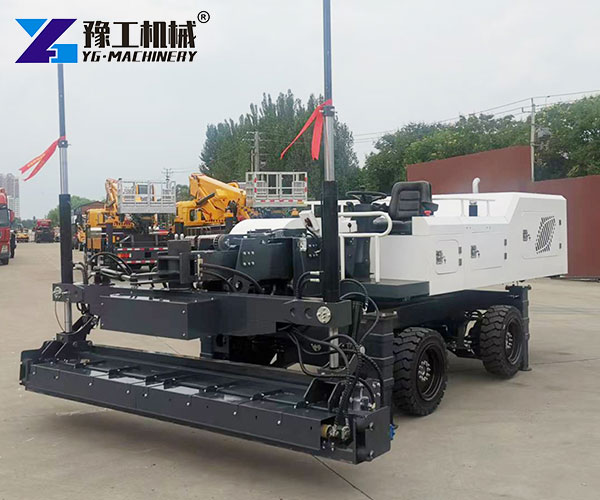

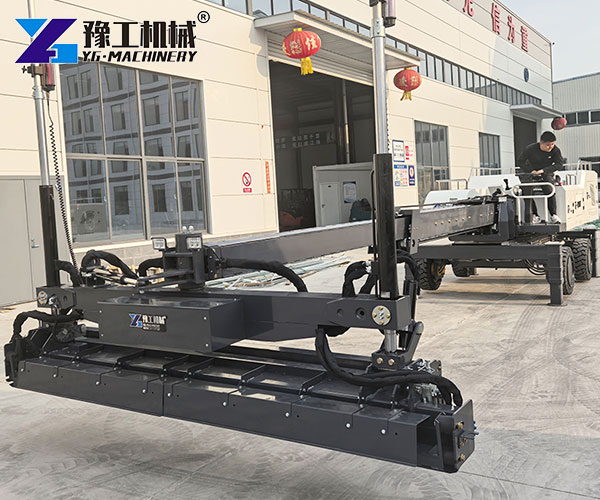

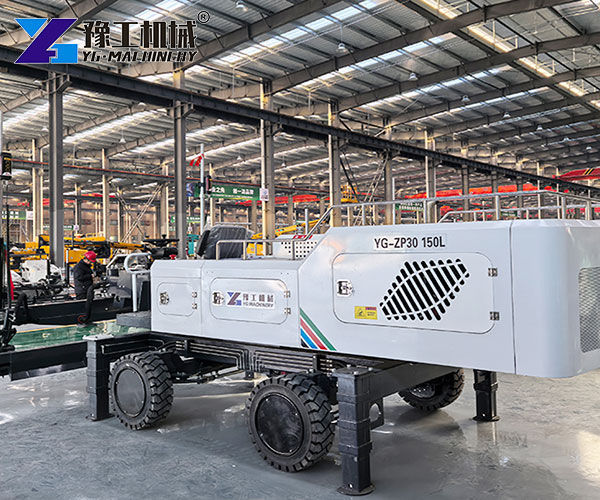

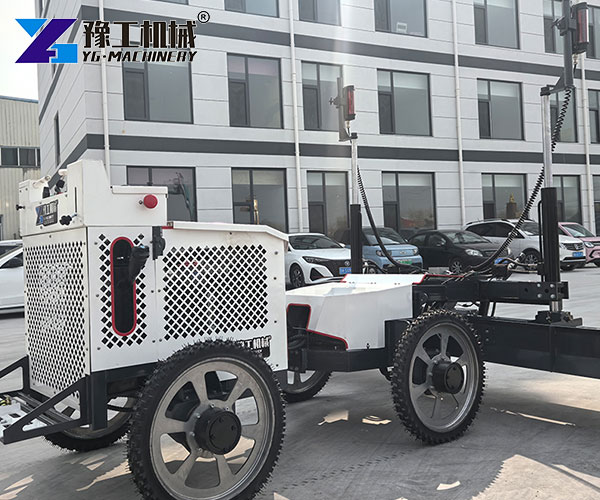

A laser concrete screed machine is a specialized concrete floor construction machine designed to level, vibrate, and finish freshly poured concrete using laser positioning technology.
The machine combines several operations into one working process:
- Concrete spreading
- Vibration compaction
- Laser-guided leveling
- Surface screeding
Unlike traditional screeding tools, the machine automatically follows laser reference signals throughout the pouring process. This allows contractors to achieve more consistent floor elevations over large construction areas.
Specs of Concrete Laser Levelling Machine
| Model | YGJX31 | YGJX32 | YGJX33 | YGJX34 |
| Engine | ||||
| Model | Generator set | GX390 Electric start | GX390 Electric start | GX390 Electric start |
| Power | 2.0kW | 13hp/3600rpm | 13hp/3600rpm | 13hp/3600rpm |
| Fuel tank (L) | 14.5 | 6.5 | 6.5 | 6.5 |
| Running device | ||||
| Drive | Motor | Hydraulic motor | Hydraulic motor | Hydraulic motor |
| Running mode | Infinitely variable speed | Handle control, stepless speed | Handle control, stepless speed | Handle control, stepless speed |
| Running speed(m/min) | 0-36 | 0-45 | 0-65 | 0-45 |
| Suggest working speed(m/min) | 5 | 5 | 5 | 5 |
| Screed head | ||||
| Type | Self-leveling | Electric control, self-leveling | Self-leveling | Hydraulic control, self-leveling |
| Width | 2500mm | 2500mm | 2500mm | 2500mm |
| Exciting force | 500N | 500N | 500N | 500N |
| Vibration frequency | 50Hz | 50Hz | 50Hz | 50Hz |
| Laser control system | ||||
| Control type | Microcomputer laser scan | Microcomputer laser scan | Microcomputer laser scan | Microcomputer control |
| Operation mode | Walk-behind | Walk-behind | Walk-behind | Walk-behind |
| Forward and reverse | Handgrip control, stepless speed-walking | Hydraulic control | Handgrip control, stepless speed-walking | Hydraulic control |
| Size and weight | ||||
| Working size(mm) | 2758*2622*1980 | 2740×2659×1980 | 2578×2643×1980 | 2780*2622*1980 |
| Weight(kg) | 295 | 365 | 380 | 410 |
Four Practical Merits of Using a Laser Concrete Screed Machine
- Lower labour input: one operator plus two auxiliary workers finish daily pouring work, which used to need eight to twelve staff via traditional hand screeding, cutting regular monthly labour costs noticeably.
- Minimal post-pour repair: precise laser positioning removes uneven slab problems, cutting repair-related concrete waste by nearly 32% across finished construction projects.
- Stable floor physical performance: compacted concrete via integrated vibration setup lifts finished floor density by around 18%, lowering later floor cracking probability under heavy forklift rolling.
- Flexible moving layout: four-wheel steering and crab walk movement design lets the concrete laser levelling machine navigate around stand columns inside factory buildings and indoor parking lots without dismantling extra barriers.
Applications of a Concrete Laser Levelling Machine
- Large logistics distribution warehouses: ultra-flat floor matches automated forklift and AGV trolley daily operation, common for cross-country cargo storage parks
- Underground commercial parking garages: preset a slight drainage slope via laser setup to stop rainwater pooling on the finished garage ground
- Factory production workshops, including electronic clean plants and food processing spaces, require a strict flatness standard to support the long-term stable installation of fixed production equipment
- Outdoor open-air public plazas and airport auxiliary apron ground: large continuous concrete pouring shortens the whole infrastructure construction cycle.
Concrete Laser Screed Machine Price Factors
The concrete laser screed machine price varies depending on configuration and project requirements.
Main influencing factors include:
- Machine working width and size
- Engine type and power system
- Laser control system quality
- Hydraulic system configuration
- Optional attachments and upgrades
- Production capacity requirements
How Concrete Laser Improves Productivity
A laser concrete screed machine improves construction efficiency by combining multiple processes into one operation.
Typical performance comparison:
- Manual method: 8–12 workers, 800–1200 m²/day
- Laser method: 3–6 workers, 2000–4000 m²/day
The machine reduces rework caused by uneven levelling and shortens curing-related delays. Contractors can complete large slab projects faster and reduce total project cost per square meter.
Customer Project Story
A contractor from Mexico contacted YG for a logistics warehouse project of around 15,000 m². The client previously used manual screeding, which required about 10–12 workers and often caused uneven slab sections that needed correction.
After discussing site conditions, YG recommended a laser concrete screed machine suitable for large industrial flooring.
After delivery and on-site training:
- Crew size reduced from 12 to 5 workers
- Daily output increased from 900 m² to about 2800 m²
- Floor flatness inspection passed on first attempt
- Rework rate dropped significantly during full project execution
FAQ About Laser Concrete Screed Machine
Q: What is the main function of a laser concrete screed machine
A: It levels and finishes concrete floors using a laser-guided system to control surface elevation.
Q: How accurate is the machine
A: Most models can reach around ±2 mm levelling accuracy depending on site conditions.
Q: How many workers are needed
A: Usually, 3–6 workers are enough for operation and support.
Q: What is the daily working capacity
A: Around 2000–4000 m² per day for large slab projects.
Q: Can it be used for small projects
A: It is not recommended for small or narrow construction areas.
Why Choose YG
YG has over 20 years of experience in construction machinery manufacturing, focusing on concrete equipment design, production, and global export. All machines meet CE and ISO standards.
We provide project consultation, equipment customization, operation guidance, and after-sales service, including spare parts and technical support during operation.
Besides the laser concrete screed machine, YG also supplies concrete pumps, concrete pump trucks, and concrete placing booms.
