A concrete cutting contractor in Japan needed a practical solution for a large concrete structure that could not be cut easily with a standard saw. The work required deep cutting through reinforced concrete, with limited working space around the structure. After checking several options, the contractor contacted YG Machinery for a Wire Saw Cutting Machine. The project required controlled cutting, stable operation, and equipment that could be moved between different work areas.The contractor also wanted to compare the diamond wire saw machine with other concrete cutting methods before placing the order. YG reviewed the working conditions and provided a suitable configuration, technical details, price, and delivery plan.
Specifications of Wire Saw Cutting Machine
| Wire Saw Wheel Parameters | Hydraulic Pump Parameters | ||
| Wire Drive Mode | hydraulic | Motor Power | 22/25kw |
| Motor Type | HM-80, 2 Cylinders | Voltage | 220V/380V, 50Hz |
| Minimum Input Power | 25HP/33HP | Hydraulic Pump Type | Gear Pump |
| Output Shaft Speed | 350/940/1300r/min | Main Drive Motor | 40-100L/min |
| Maximum Wire Length | 20m | Working Pressure | 15-20Mpa |
| Feeding Method | Fully hydraulic | Oil Tank Capacity | 17L |
| Wire Saw Wheel Weight | 64kg | Weight | 160kg |
| Motor Weight | 14kg | Size | 700*700*1200mm |
| Size | 1700*700*800mm |
Concrete Wire Saw for the Japanese Project
The Japanese contractor mainly handled renovation and structural cutting work. The current project involved a reinforced concrete section that was too deep for the cutting tools normally used on smaller jobs.
The work also had several practical limits:
The cutting area was close to other structures.
The concrete section required deep cutting.
The contractor needed a controlled cutting process.
The equipment had to fit into the existing work plan.
Cutting accuracy was important because unnecessary damage to nearby concrete had to be avoided.
A diamond wire saw was considered suitable because the cutting wire can work around large or difficult concrete sections. Unlike a standard circular blade, the wire can be arranged around the section to create a continuous cutting path.
The contractor sent YG details about the structure and working conditions. YG then discussed the equipment arrangement and prepared a quote for the project. The contractor compared the equipment cost and expected working conditions before deciding to buy from YG Machinery.

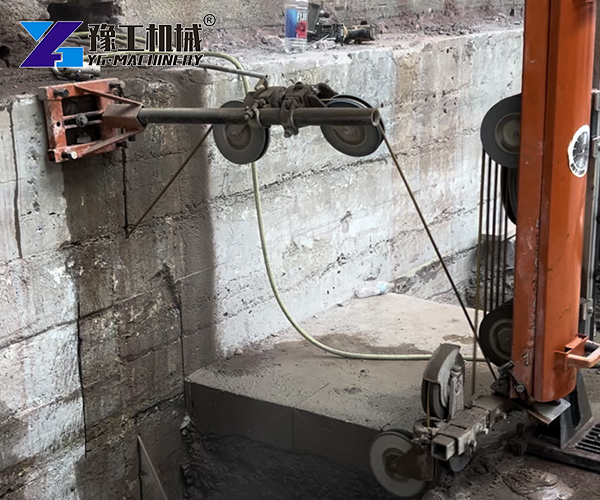

Wire Saw Concrete Cutting on the Job Site
After the order was confirmed, YG prepared the equipment for shipment to Japan. The hydraulic unit and cutting equipment were checked before packing. The required shipping documents were also prepared for international delivery.

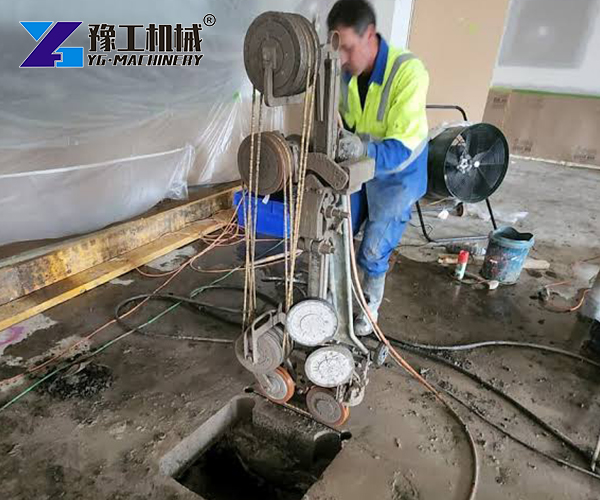

At the Japanese job site, the contractor first positioned the equipment around the concrete structure. The cutting path was checked before operation. The team then installed the wire and connected the hydraulic system.
The cutting process followed a simple sequence:
Position the cutting equipment around the concrete section.
Install and check the cutting wire.
Connect the hydraulic system.
Check the cutting path and working area.
Start the cutting operation at a controlled speed.
Monitor the wire and cutting condition during operation.

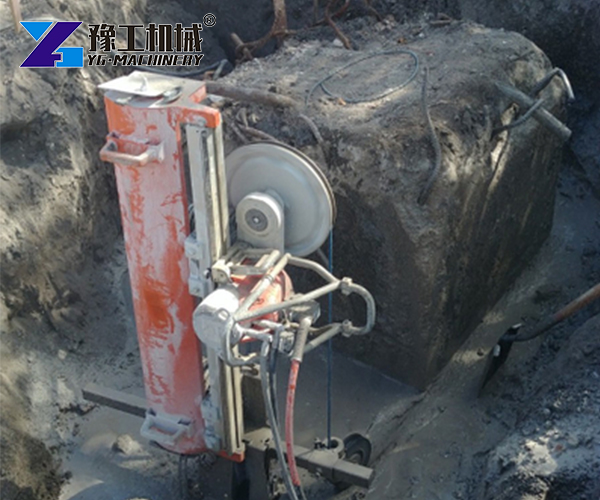

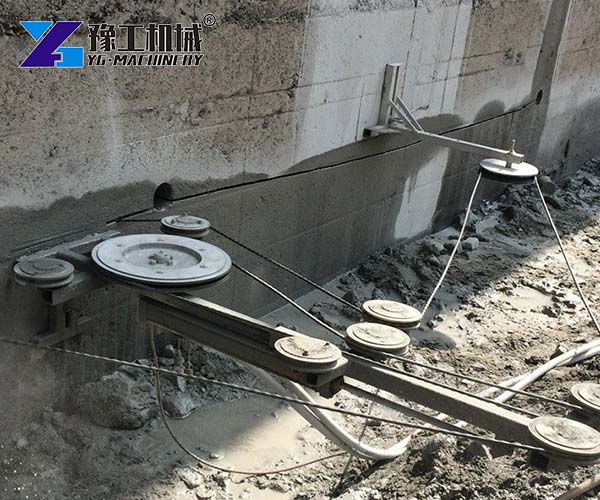

The wire saw concrete cutting process was useful for the deep reinforced concrete section. The continuous wire movement allowed the contractor to work through the structure without relying only on a large circular blade.For the team, this was also an important reason to consider a concrete wire cutting machine instead of using several smaller cutting tools for the same job.
Concrete Wire Saw Results in Japan
The equipment was used for the planned concrete cutting work after installation and site checks. The contractor found that the wire cutting method was suitable for the structure because the cutting path could be arranged around the working area.
The project also showed several practical benefits of the method:
Deep concrete sections could be approached with a continuous wire.
The cutting path could be adapted to the structure.
The equipment could be used for demanding reinforced concrete work.
The hydraulic system provided the power needed for the cutting process.
The contractor could use the same equipment for future structural cutting projects.
The diamond wire saw machine also gave the contractor another option for projects where ordinary wall saws or handheld concrete cutters are not suitable.After the project, the contractor continued to discuss other concrete cutting applications with YG Machinery. The experience gave the team a clearer basis for selecting wire cutting equipment according to the structure, cutting depth, working space, and site conditions rather than choosing equipment only by purchase price.
More Wire Saw Cutting Machine Options from YG Machinery

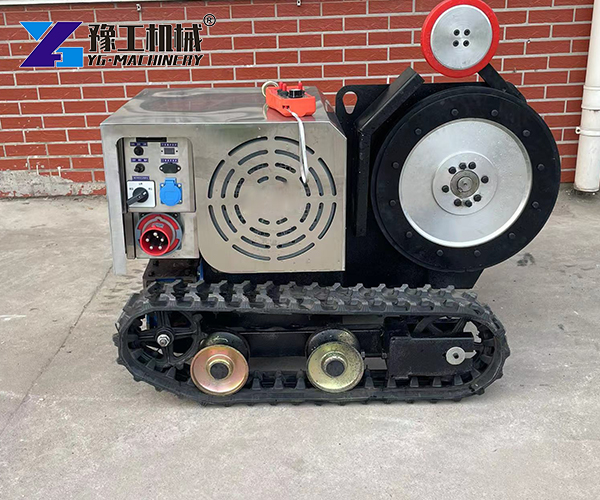

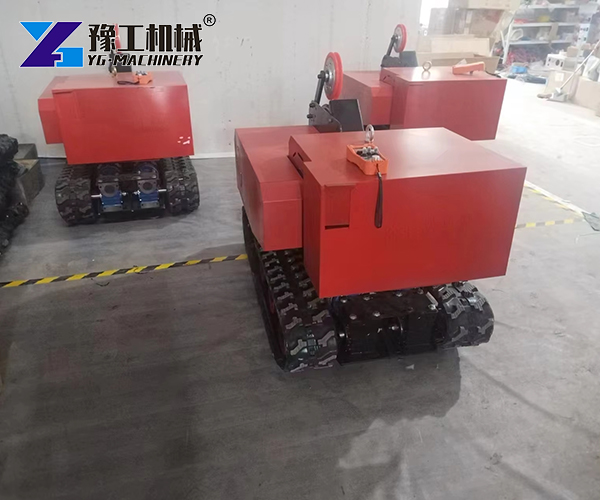

YG Machinery supplies different wire cutting solutions for concrete and structural work. Options include Crawler Wire Saw Machine, Hydraulic Wire Saw Cutting Machine, and other concrete cutting equipment for different site conditions. If you plan to buy equipment, send your cutting depth, concrete structure, working space, and power requirements. YG Machinery can recommend a suitable solution and provide a quote and price for the required equipment. Contact the team to discuss your project and available machines for sale.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
