When a Saudi EPC contractor needed a solar pile driver machine for a desert solar farm, they faced a hard problem. The site had loose sand and dense rock. They needed one machine to handle both. This case study shows how YG Machinery solved it.
Solar Pile Driver Machine in Saudi Arabia: The Challenge
In April 2026, a Saudi EPC contractor sent an inquiry to YG Machinery. The company was building a utility-scale solar farm in the desert. It needed to install thousands of solar mounting piles. The target depth was about 600 mm.
The site looked simple at first. The top layer was loose sand. But below the sand, there was dense rock. A single piling method would not work. The client also had a tight schedule. They could not switch between different machines for different ground. They needed one flexible solution.
Why a Solar Photovoltaic Pile Driver Was the Right Choice
YG engineers studied the geological report and pile requirements. They recommended a hydraulic Solar Photovoltaic Pile Driver. This machine combines drilling and piling in one unit. It can drill through hard rock. Then it can install the pile.
A standard Solar Pile Driving Rig often does only one job. This unit gives the operator more choices. The client can change tools and methods based on the ground. That matched the project’s mixed conditions.
YG Photovoltaic Pile Driver: Key Specifications

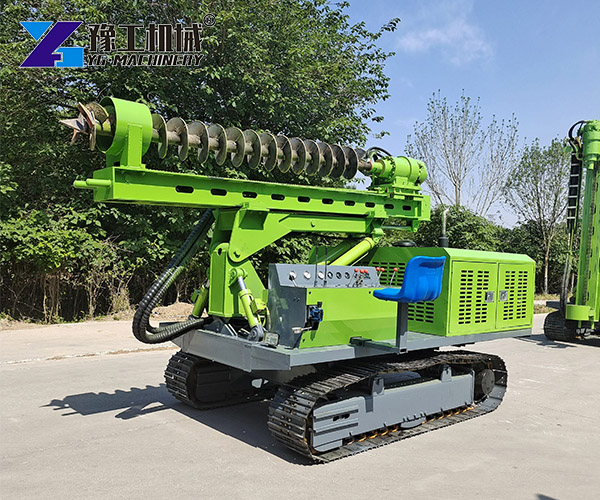

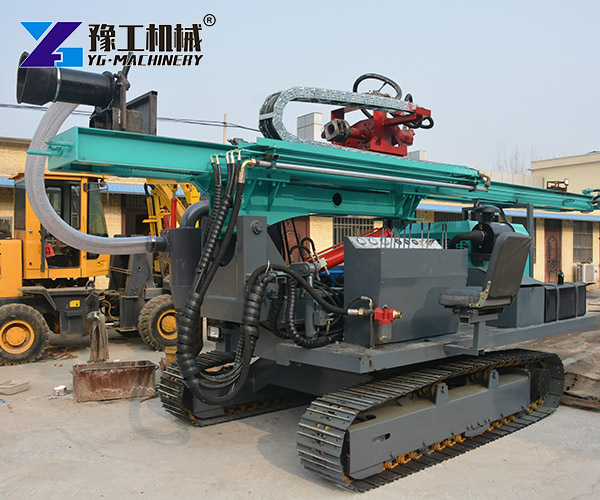

The recommended unit is a hydraulic solar piling machine. It is built for tough desert jobs. The table below shows its main specifications.
| Hydraulic photovoltaic pile driver | |||
| Overall dimensions | 4700*2100*2800mm | Drill pipe rotational speed | 180r/min |
| Track shoe width | 400mm | gradability | 30° |
| motor | 4108 | rock hardness | 6-20F |
| Drilling diameter | 80-500mm | Slide tilt angle | 120° |
| Drilling depth | 0-6m | Drill arm swing angle | left and right150° |
| Reducer torque | 13000n.m | Slide swing angle | left and right 150 ° |
| Mainstream pump | triple pump | Driving speed | 0-3km/h |
| oil pump | 40/40/32 | ||
These specs matter on site. The 400 mm track shoes reduce sinkage in sand. The 30° gradability helps on uneven desert terrain. The triple pump system keeps hydraulic power steady. The machine can handle rock hardness from 6 to 20 F.
The drilling depth is 0–6 m. That is 6000 mm. The client needed about 600 mm depth. So the machine has ten times the depth capacity required. The drilling diameter is 80–500 mm. It covers common solar pile sizes. If a project needs a larger diameter, YG can review other models or custom options.
Solar Pile Driver for Sale: Delivery and Support
The client was not just looking for a solar pile driver machine. They needed a partner. YG customized the hydraulic settings and tool configuration. The goal was to match the project’s mixed ground.
The machine was shipped in a container. YG provided English manuals and video guides. YG also gave remote support during setup. The client asked about solar pile driver price. But uptime and total cost mattered more.
YG has delivered several units in Saudi Arabia. So spare parts and service are easier to arrange.
Results: Solar Pile Driver Machine on Site
Once on site, the machine went to work. In sandy areas, it drilled and installed piles quickly. In rocky zones, it switched to rock drilling mode. There was no long downtime.
The client reported higher daily output. Pile alignment also improved. It met the centimeter-level tolerance for solar panels. The machine became the main solar piling machine on site.
The project manager said: “The YG machine handles sand and rock well. We do not have to stop and wait for another machine when the ground changes.”
Get Your Solar Pile Driver Machine Quote
Planning a solar project in Saudi Arabia? Share your site location, ground conditions, and pile size with YG Machinery. We will recommend the right machine for the job.
For a clear solar pile driver price, send us your inquiry. You will receive a customized plan, delivery time, and local after-sales support. If you are searching for a solar pile driver for sale, we can also compare models to match your exact pile diameter and depth.
Sand and rock should not slow you down. Contact YG Machinery today for a free consultation and a fast quote.【WhatsApp/WeChat/Phone/Skype】+86 13937183602
