Construction and maintenance teams face consistent obstacles when working at height. Straight boom lifts reach great distances but cannot navigate around obstacles. Fixed scaffolding takes hours to assemble and cannot be adjusted in position mid-project. Workers often need to reach over machinery, around building facades, or into tight corners where standard lifts cannot operate. These limitations cause project delays, increase labor costs, and create safety concerns when teams improvise access solutions. Articulating lift for sale addresses these exact challenges with a specialized jointed arm design that bends and maneuvers around barriers.
What is Articulating Lift for Sale in Real Applications

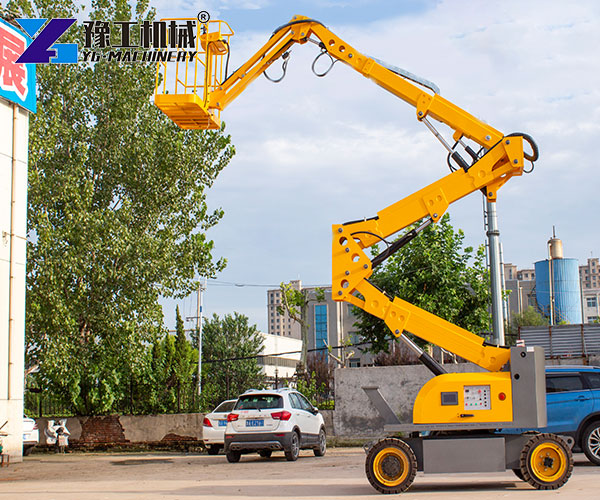

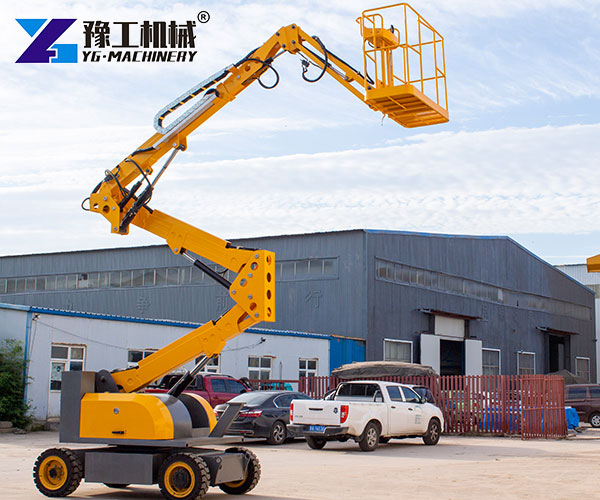

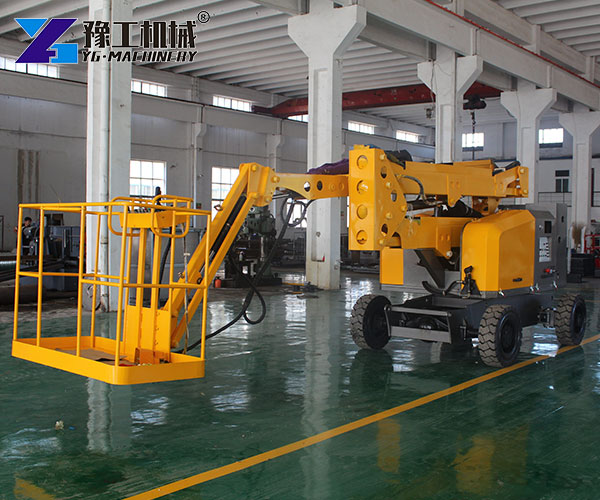

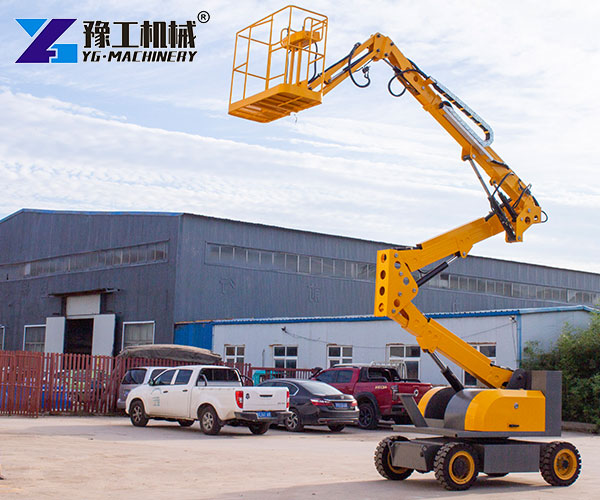

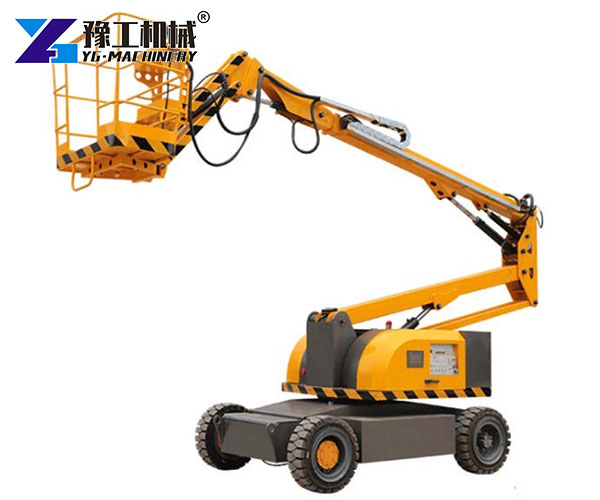

An articulating lift for sale refers to a hydraulic aerial platform with multiple boom joints. These joints allow the arm to move upward, downward, and sideways.
Unlike straight boom lifts, an articulating lift can work around walls, machinery, and structural beams. The system usually includes:
- Base rotating platform
- Multi-section boom arm
- Hydraulic control system
- Basket platform for operators
Parameters of Electric Articulating Lift
| maximum working height | 12m | |
| Maximum platform height | 10m | |
| maximum horizontal extension | 5.8m | |
| Maximum span height | 4.78m | |
| Maximum carrying capacity | 200kg | |
| Gradeability | 25% | |
| Minimum turning radius | 2.16m | |
| Running speed (km/h) | decline | 3km/h |
| rising | 0.8km/h | |
| Closing length | 4.35m | |
| Car closing width | 1.5m | |
| closing height | 1.99m | |
| Platform size (length * width * height) | 1.1m*0.65*1.13m | |
| turntable rotation | 355° | |
| Platform rotation | 120° | |
| Ground clearance | 0.15m | |
| Drive wheel size | 0.59*0.19/0.66*0.17m | |
| gross weight | 4700kg | |
| control voltage | 24V | |
| Battery | 48/320 V/Ah | |
| charger | 48/40 V/A | |
| Hydraulic tank volume | 40 L | |
| Wheelbase | 1.65m | |
5 Practical Advantages of Our Articulating Boom Lift For Sale
- Multi-direction joint bypass capability: Dual upper and lower boom joints rotate 360-degree slewing, easily bypass beams, fences, and exterior wall brackets that block straight lifting paths
- Site adaptive travel performance: Front anti-slip tire design matches gravel, lawn, and unfinished concrete ground, no extra ground paving required before operation
- Dual-mode switchable power: Switch between silent electric mode and high-power diesel mode freely, one unit adapts to warehouse indoor maintenance and outdoor building renovation
- Integrated anti-tilt protection system: Automatic power cut-off triggers when chassis tilt exceeds 3°, reducing rollover risks on sloped terrain
- Simplified onsite debugging: One-button boom reset function cuts post-operation adjustment time, and new operators can master basic operation within 30 minutes
Premium Material Used For Knuckle Boom For Sale Unit
- Main boom body: Q355 high tensile steel, anti-rust sandblasted finish, resists outdoor corrosion and impact deformation
- Hydraulic hinge joint: Forged alloy steel, equipped with leak-proof sealing gaskets to stop hydraulic oil leakage
- Chassis frame: Thickened integrated stamping steel, bears uneven ground impact without frame cracking
- Control panel: IP54 waterproof shell, adapts to rainy outdoor construction and dusty factory workshops
Application Scenarios For Electric Articulating Lift
- Commercial building exterior painting and curtain wall inspection
- Warehouse high shelf stock arrangement and equipment overhaul
- Municipal street tree pruning and overhead line maintenance
- Stadium venue lamp replacement and high-altitude accessory installation
- Renovation work for narrow-space residential attics and partitioned floors
On-site Efficiency Upgrade Brought By Articulating Lift For Sale
- Cut elevated work preparation time by 62%: No scaffolding assembly, machine starts working within 5 minutes after onsite placement
- Reduce labor staffing: 2 staff finish offset elevated tasks, while traditional tools need 4-5 workers for the same work
- Lower work pause frequency: Stable hydraulic structure cuts mechanical failure downtime by 70% on complex sites
- Expand usable working range: 30ft boom lift covers blind spots straight lifts cannot reach, finishing segmented wall work in one positioning
Key Factors That Affect Articulating Lift Pricing
- Working height range
- Electric or diesel system
- Platform load capacity
- Imported hydraulic components
- Custom configuration requirements
Customer Purchase Case
- Inquiry： Jonas, Norwegian renovation contractor said “Local knuckle boom for sale rentals cost high; used articulating boom lift for sale has frequent hydraulic faults”. He enquired our articulating lift for sale and picked the electric articulating lift, 30ft boom lift model.
- Delivery： Shipped in 10 days, arrived at his yard in one month.
- Feedback after 3 months of use： Annual equipment spending down 13500 NOK, zero machine failures. “This articulating lift for sale operates smoother than local second-hand units. This knuckle boom for sale suits narrow work zones, I plan to purchase an extra 30ft boom lift.”
FAQ For Articulating Lift On-Site Usage
Q1: Can this 30ft boom lift work on wet asphalt ground after rain?
A1: Yes. Equipped with draining anti-slip tires and a ground pressure balance system, it works stably on wet flat ground; avoid steep muddy slopes with a tilt of over 3 °.
Q2: Does the electric articulating lift need professional staff for daily maintenance?
A2: No. Daily work only needs regular battery charging and joint oil filling. YG provides a free English maintenance manual for easy operation.
Q3: Can I customize the platform size for the knuckle boom for sale order?
A3: Custom platform width and auxiliary tool rack are supported for bulk orders and special site demands.
Q4: How long is the official warranty for the articulating lift for sale unit?
A4: 2-year whole machine warranty, 5-year core hydraulic component warranty for all export models.
About YG Company
YG has over 20 years of experience in manufacturing lifting and construction machinery. The company holds CE certification and serves customers in more than 100 countries.
YG provides full support for articulating lift for sale, including:
- Pre-sale technical consultation
- Custom configuration based on project needs
- Global shipping support
- Spare parts and after-sales service
In addition to articulating lifts, YG also supplies scissor lift platforms and aluminum aerial work platforms for different working environments.
