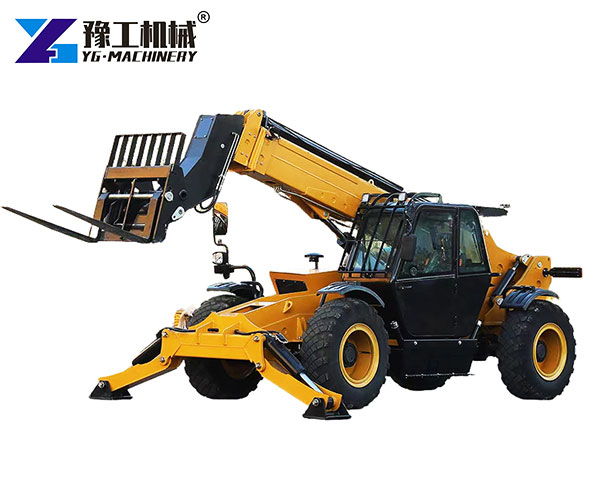

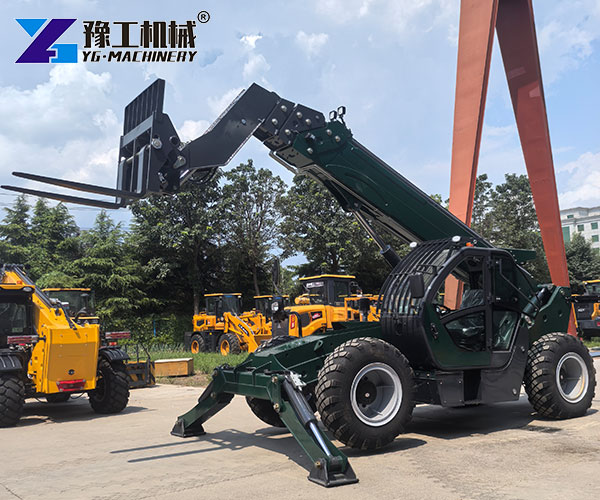

An extended reach forklift is designed for projects where ordinary forklifts cannot provide enough lifting height or forward reach. Instead of stopping at ground-level loading tasks, this machine can place materials onto upper floors, reach over obstacles, and transport loads across rough terrain. Construction contractors use an extended reach forklift to move steel structures, concrete blocks, formwork, roofing materials, and palletised supplies. Agricultural operators use it for hay handling, fertiliser transport, and warehouse operations. Industrial facilities rely on it for equipment installation and material movement.
Parameters of the Extended Reach Forklift
| Model | YG-TS1035 | YG-TS1440 | YG-TS1850 |
| Rated load | 3500kg | 4000kg | 5000kg |
| Maximum lift height | 10000mm | 13500mm | 17550mm |
| Maximum reach | 5000mm | 8500mm | 13080mm |
| Maximum traction force | ≥70kn | ≥70kn | ≥70kn |
| Minimum ground clearance | 420mm | 420mm | 420mm |
| Overall dimensions | 5700×2230×2400mm | 7000×2350×2550mm | 7500×2430×2550mm |
| Wheelbase | 3670mm | 3670mm | 3670mm |
| Engine Type | CUMMINS/Yuchai | Yuchai Brand | Yunnei Brand |
Extendable Fork Lift with Custom Attachments

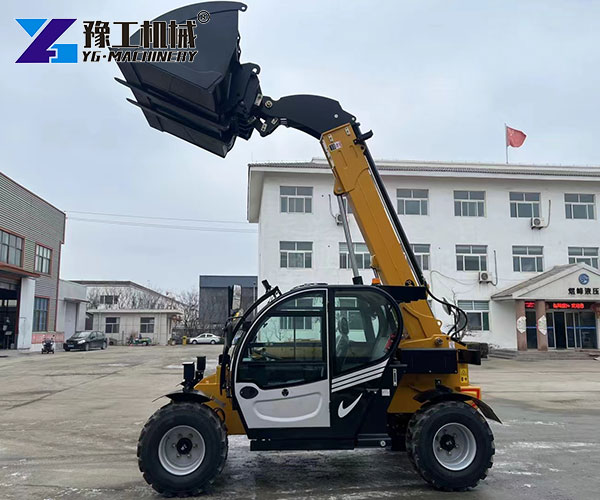

One major advantage of the extendable forklift lies in its strong compatibility with interchangeable attachments. Users swap different tools based on daily work content without buying extra equipment.
- Grab bucket: Ideal for moving sand, gravel, grain, and bulk loose materials
- Glass suction cup: Securely hold large glass panels for installation and transportation
- Magnetic plate: Pick up and shift metal parts, steel scraps, and iron materials
- Standard fork: Keep the original function for pallet and boxed goods handling

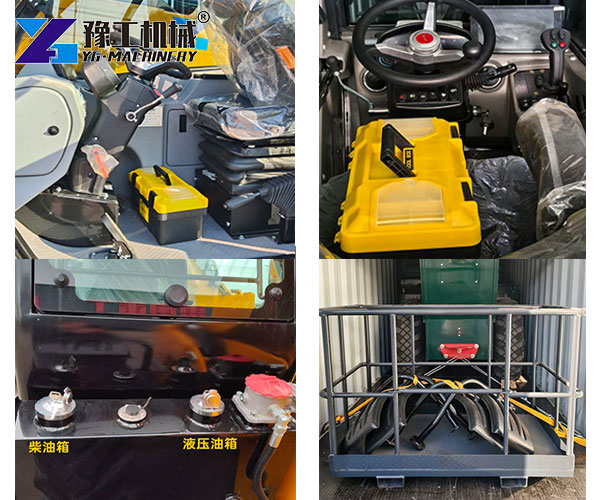

Structural Details of Tele Forklift
- Reinforced chassis: Thick steel plates reinforce stress areas to bear heavy loads and resist impact
- Anti-slip tyres: Deep tread design keeps grip on mud, gravel and rough pavement
- Central control cabin: Large viewing window cuts blind areas; adjustable seat eases long-hour operation
- Integrated hydraulic circuit: Compact pipeline layout reduces leakage risks and simplifies daily checks
Applicable Scenarios for Forklift Telescoping
- Building construction: Lift construction materials to upper floors and transfer goods over temporary barriers
- Farm operation: Stack crop bales, load farm supplies and move equipment in open farmland
- Yard logistics: Rearrange stacked goods and unload vehicles in large outdoor storage yards
- Facility maintenance: Reach high-position pipelines, exterior walls and overhead equipment
Return Ratio Analysis
- Sites that previously rented cranes and common forklifts together can cut about 58% of monthly equipment fees
- Work speed increases, so teams finish daily tasks ahead of schedule, bringing more project turnover
- The durable structure lowers failure downtime, avoiding economic loss caused by work suspension
How to Choose the Right Extended Reach Forklift
Maximum Load Weight
Calculate the heaviest material you regularly handle.
Required Lift Height
Choose a machine based on actual working height rather than maximum advertised height.
Reach Distance
Some projects require a horizontal reach more than vertical lifting.
Ground Conditions
Rough terrain sites require four-wheel drive models.
Attachment Requirements
Determine whether you need:
- Forks
- Buckets
- Glass lifters
- Magnet plates
- Personnel platforms
Matching machine specifications to project requirements usually leads to lower operating costs over time.
Customer Feedback from Ireland
Customer: Construction Contractor, Ireland
Machine: 4T Extended Reach Forklift
Lift Height: 14m
Applications:
- Warehouse construction
- Agricultural building projects
- Steel structure installation
- Material handling
Results After Use:
- Reduced material handling time by 25%
- Lower crane rental expenses
- One machine replaced multiple lifting solutions
- Improved equipment utilisation across different projects
Customer Comment:
“The machine is now used on nearly every project. The extended reach and attachment options give us much more flexibility than a standard forklift.”
About YG Machinery
YG has specialised in machinery manufacturing for more than 20 years. Our equipment serves customers in construction, agriculture, logistics, infrastructure, and industrial sectors around the world.
All major equipment has obtained CE certification and undergoes strict quality inspections before shipment. Our team provides detailed pre-sale consultation, project-based equipment recommendations, customised attachment solutions, transportation assistance, operator training guidance, and long-term after-sales support.
In addition to extended reach forklifts, YG also supplies articulating boom lifts, scissor lift platforms, road construction equipment, concrete machinery, and material handling solutions for various industries.
